Problem Solver
Preventing paper feed and paper jam problems
To prevent frequent paper feed or paper jam problems, use this checklist of corrective measures.

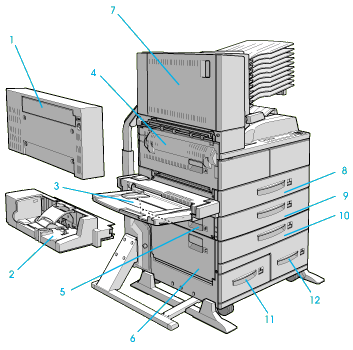

When a paper jam occurs, Jam xxx xxx xxx xxx message appears on the LCD panel. The xxx indicates areas where jams may be occurring, such as LC1(lower cassette 1) or A (cover A). See the messages in this section for instructions on clearing paper jams in each area.
 | Note: |
 |
|
|
|
|
1. |
DM |
|
2. |
ENV |
|
3. |
MP |
|
4. |
A |
|
5. |
B |
|
6. |
C |
|
7. |
D |
|
8. |
LC1 |
|
9. |
LC2 |
|
10. |
LC3 |
|
11. |
LC4 |
|
12. |
LC5 |

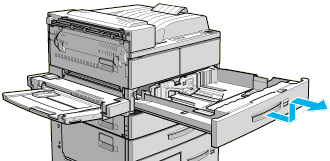

This message indicates that a paper jam may be occurring in lower cassette 1, 2, or 3 (LC3 appears if the optional Large Capacity Paper Unit is installed).
 | Pull out the indicated cassette (lower cassette 1, 2, or 3). |
 | Carefully remove any paper you find jammed inside the cassette or printer. |
 | Remove the stack of paper from the cassette. Even its edges by tapping the paper on a flat surface. Then reinsert the stack into the cassette making sure the paper is evenly aligned and rests below the maximum paper mark. |
Make sure you are using the correct paper size and that your paper meets the specifications for this printer.
 | Push the cassette back into the printer. |
 | Clear any other paper jams that are indicated on the LCD panel, until all jam messages disappear. |
 | After that, if the control panel still indicates LC1, LC2 or LC3, completely remove the indicated cassette. |
 | Carefully remove any sheets that have fed part way into the printer. |
 | Reinstall the removed cassette. |
|  | Caution: |
| | If you completely removed a cassette, be sure to put it back into its original position. Changing cassette 1 with cassette 2 (or cassette 3, if installed) causes improper paper feeding. |
When the paper jam is cleared completely, the jammed page's print data is automatically reprinted.
This message indicates that there may be a paper jam in the MP tray.
|
| Move the paper guide on the MP tray outwards. |
|
| Remove all the paper from the tray, and discard any wrinkled or folded sheets. |
|
| Tap the edges of the paper stack on a flat surface. Then reload the paper in the MP tray, making sure it is evenly aligned and rests below the maximum paper mark. |
Make sure you are using the correct paper size and that your paper meets the specifications for this printer.
|
| Clear any other paper jams indicated on the control panel. |
|
| After that, if the control panel still indicates Jam MP, completely remove the MP tray. |
|
| Carefully remove any sheets that have fed part way into the printer. |
|
| Reinstall the removed tray and reinsert the paper. |
This message indicates that there may be a paper jam inside cover A.
|
| Open cover A on the left side of the printer. If the optional Duplex Unit is installed, open cover DM first, then open cover A. If the optional Envelope Feeder is also installed, remove it before opening the Duplex Unit. |
|  | Warning: |
| | When opening the printer, do not touch the hot areas indicated on the caution labels inside cover A. |
|
| Remove any paper you find jammed inside the printer. |
| | Note: |
| | Because the toner on the paper inside the printer may not have been fixed on the page, toner may come off on your hands when you remove the paper. If you spill toner on your clothing, rinse it off with cold water. Using hot water may leave a permanent stain. |
|
| If the paper is difficult to remove, use the gear lever inside cover A shown below. Push the lever in and up repeatedly to feed the jammed paper back out cover A. |
| | Warning: |
| | When opening the printer, do not touch the hot areas indicated on the caution labels inside cover A. |
|
| If necessary, open the front cover to remove the Imaging Cartridge and any paper left in the paper feed path, and then reinsert the Imaging Cartridge. |
If you do not find any jammed paper, it may be in another area.
|
| Close the front cover, if opened, then close cover A. Close the Duplex Unit, then reinstall the Envelope Feeder, if you have these options. |
When the paper jam is cleared completely, the jammed page's print data is automatically reprinted.
If the LCD panel indicates another area, check for paper jam there.
This message indicates that there may be a paper jam inside cover B or C.
|
| Open the indicated cover (B or C on left side of the printer). |
|
| Carefully remove any paper you find jammed inside the cover. If you do not find any, paper may be jammed in another area. |
|
| Close the cover. |
When the paper jam is cleared completely, the jammed page's print data is automatically reprinted.
If the LCD panel indicates another area, clear the paper jam there.
This message indicates that there may be a paper jam in optional lower cassette 4 or 5.
|
| Pull out the indicated cassette (lower cassette 4 or 5). |
|
| Remove any wrinkled or folded sheets. |
|
| Tap the edges of the paper stack on a flat surface. Then reload the paper in the lower cassette, making sure it is evenly aligned and rests below the maximum paper mark. |
Make sure you are using the correct paper size and that your paper meets the specifications for this printer.
If you do not find any jammed paper, reinstall the tray into the cassette.
|
| Clear other paper jams that are indicated on the control panel. |
|
| After that, if the control panel still indicates LC4 or LC5, completely remove lower cassette 3, and pull out both the lower cassette 4 and 5 as far as they will go. |
|
| Carefully remove any sheets that have fed part way into the printer. |
| | Warning: |
| | Be careful not to touch any of the sharp parts inside the printer. |
|
| Reinstall lower cassette 3 and push all the cassettes back into the unit. |
When the paper jam is cleared completely, the jammed page's print data is automatically reprinted.
This message indicates that there may be a paper jam in the optional Envelope Feeder.
|
| Carefully pull out the jammed paper, along with all the loaded envelopes. |
|
| Tap the edges of the envelope stack on a flat surface. Then reload the envelopes in the envelope tray, making sure they are evenly aligned and rest below the maximum paper mark. |
Make sure you are using the correct envelope size and that your envelopes meet the specifications for this printer.
|
| Clear any other paper jams indicated on the control panel. |
|
| After that, if the control panel still indicates Jam ENV, completely remove the envelope feeder. |
|
| Carefully remove any envelopes that have fed part way into the printer. |
|
| Reinstall the removed feeder and reinsert the envelopes. |
This message indicates that paper jam may be occurring inside of cover D, or the optional Multibin Unit.
|
| Open cover D on left side of the optional Multibin Unit. |
|
| Carefully remove any paper you find jammed in cover D or the Multibin Unit. |
If you do not find any jammed paper, it may be in another area.
|
| Close cover D. |
|
| Check the bins for any jammed paper and remove it. |
When the paper jam is cleared completely, the jammed page's print data is automatically reprinted.
If the control panel indicates another area, clear the paper jam there.
This message indicates that there may be a paper jam inside cover DM, or the optional Duplex Unit. If the optional Envelope Feeder is also installed, remove it before opening the Duplex Unit.
|
| Open cover DM the left side of the Duplex Unit. |
|
| Open the transparent cover inside. |
|
| Carefully remove any paper you find jammed in cover DM. If you cannot find any jammed paper, it may be in another area. |
|
| Close cover DM. If you removed the Envelope Feeder, reinstall it. |
When the paper jam is cleared completely, the jammed page's print data is automatically reprinted.
If the LCD panel indicates another area, check for a paper jam there.

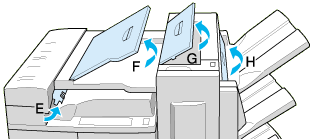

This message indicates that there may be a paper jam inside cover E of the optional Finisher Stapler.
|
| Open cover E at the face-down exit. |
| | Note: |
| | If the paper jam is difficult to remove, move the Finisher Stapler to the right. |
|
|
Carefully remove any paper you find jammed inside cover E. If you cannot find any jammed paper, it may be in another area. |
This message indicates that there may be a paper jam inside cover F of the optional Finisher Stapler.
|
| Open cover F at the top of the upper paper guide. |
|
|
Carefully remove any paper you find jammed in cover F. If you cannot find any jammed paper, it may be in another area. |
|
| Close cover F. |
This message indicates that there may be a paper jam at the output section of the optional Finisher Stapler.
|
| Open cover G at the top of the Finisher Stapler. |
|
|
Carefully remove any paper you find jammed inside the cover. If you cannot find any jammed paper, it may be in another area. |
|
| Close cover G. |
This message indicates that there may be a paper jam at the exit side of the optional Finisher Stapler.
|
| Lift cover H at the exit side of the Finisher Stapler. |
| | Caution: |
| | Keep cover H open while clearing paper jams from the exit side of the Finisher Stapler, closing cover H causes printing to resume. |
|
| Remove any paper you find jammed inside cover H. Keep cover H open while clearing paper jams. If you cannot find any jammed paper, it may be in another area. |
| | Note: |
| | Pages from the current print job that are removed from the paper jam inside cover H will not be stapled. |
| Note: |
|
|
|
|
If the Check Stapler or the Staple Supply message appears on the LCD panel there may be a staple jam. Clear the staple jam according to the steps below.
|
| Open the front cover of the Finisher Stapler. |
|
| Press the lever down, and remove the Staple Cartridge. |
|
| Flip the stopper on the end of the Staple Cartridge up to remove, then remove any jammed staples. |
| | Warning: |
| | Take care not to jab your fingers with the staples when you remove jammed staples. Doing so might cause injuries. |
|
| If staples are still jammed, slide the jammed group of staples out towards the front of the Staple Cartridge and remove them. |
| | Note: |
| | If the above remedy does not rectify the staple jam, contact your dealer. |
|
| Return the stopper on the end of the Staple Cartridge to its original position. |
|
| Push the Staple Cartridge back into the Finisher Stapler until the lever is returned to its original position. |
|
| Close the front cover of the Finisher Stapler. |
| | Note: |
| | If the On Line light is off, press the On Line button to turn the power on. |
Turn off the printer and check the power cord connections between the printer and the electrical outlet; then turn the printer back on.
If the electrical outlet is controlled by an outside source such as a wall switch, make sure the switch is turned on, or plug another electrical device into the outlet to check whether the outlet is operating properly.
Your computer may not be properly connected to the printer. Refer to the connecting instructions in the Setup Guide.
The interface cable may not be securely plugged in. Check both ends of the cable between the printer and the computer.
Make sure that your interface cable meets the specifications for the printer and computer.
If you are using the parallel interface, set the Speed setting (on the Parallel menu) to match the value that the computer requires.
Make sure that your software is properly set up for your printer.
The Imaging Cartridge may be empty. Replace it as described in Replacing the Imaging Cartridge.
Press the On Line button once to put the printer online (the On Line light comes on).
The selected font is not installed in your printer. Be sure you have installed the correct font. See Adding and Selecting Fonts for more information.
Make sure that both ends of the interface cable are plugged in securely.
Make sure you use a double-shielded, twisted-pair parallel interface cable no longer than 1.8 meters in length.
The Image Optimum setting may be set to Auto or On. If it is, certain unexpected fonts may be printed to increase the printing speed. Turn the Image Optimum setting off in the printer driver or SelecType Config Menu.
The emulation setting for that port may not be correct. Specify the correct emulation mode on the SelecType Emulation Menu.
If the printer still does not print correctly, contact your dealer or a qualified service person.
Make sure that you are using the correct page length and margin settings, such as T. Margin or Text, in your application program.
Set the paper guides to fit the paper size you are loading.
Make sure that your software program is set for the printer emulation you are using. For example, if you are using the LJ4 emulation, be sure that your graphics software is set for a LaserJet 4 printer.
Graphics require large amounts of memory; see Memory Modules for more help.
Software programs override SelecType settings. Use software settings instead of SelecType settings whenever possible.
Your settings may have been changed by your software program. Perform a factory reset (initialize) with the SelecType Init function on the SelecType Setup Menu. For more information, see SelecType Settings.
You may not have reset the printer after making settings. Press the ALT and Continue buttons at the same time to reset the printer and enable the new settings.
The Imaging Cartridge is not installed correctly. To properly install the cartridge, see Replacing the Imaging Cartridge.
If one of the following problems has occurred in your printout, try the solutions listed for the problem.
Lighten the Density setting using the printer driver or the SelecType Config Menu.
Clean the paper path inside the printer with a clean, soft, and lint-free cloth. See Cleaning the Printer.
Clean internal printer components by printing several pages with only one character per page.
There may be a problem with the Imaging Cartridge. Remove the cartridge, shake it from side to side, and then reinstall it. If this does not solve the problem, replace the Imaging Cartridge as described in Replacing the Imaging Cartridge.
Install a new Imaging Cartridge as described in Replacing the Imaging Cartridge.
Take out the Imaging Cartridge, shake it from side to side, and reinstall it.
Your paper may be moist or damp. Printing is sensitive to moisture absorbed by the paper. Do not store your paper in a humid or damp environment.
Install a new Imaging Cartridge as described in Replacing the Imaging Cartridge. Then print several pages to check the print quality.
Remove the Imaging Cartridge, shake it from side to side to distribute the toner, and wipe the bottom of it with a clean, dry cloth.
Clean the paper path inside the printer using a clean, soft, and lint-free cloth.
Clean internal printer components by printing several pages with only one character per page.
If the problem remains, replace the Imaging Cartridge as described in Replacing the Imaging Cartridge.
Your paper may be moist or damp. Printing is sensitive to moisture absorbed by the paper. The higher the moisture content in the paper, the lighter the printed output. Do not store your paper in a humid or damp environment.
You may not be using the correct type of paper for your printer. If the surface of your paper is too rough, printed characters appear distorted or broken. Smooth, high-quality copier paper is recommended for best results. See Available Paper Types and Paper Specifications for information on choosing paper.
If after checking the SelecType Toner option in the Setup Menu, the Toner message indicates that the amount of toner is low
(E*F), read Replacing the Imaging Cartridge.
Check that the Imaging Cartridge is installed as described in Replacing the Imaging Cartridge.
The problem may be with your software program or interface cable. Print out a status sheet by pushing the Enter button on the control panel twice while the printer is online. If the status sheet is also blank, the problem may be with the printer. Turn off the printer and contact your dealer.
Darken the Density setting using the printer driver or the SelecType Config Menu.
Your paper may be moist or damp. Printing is sensitive to moisture absorbed by the paper. The higher the moisture content in the paper, the lighter the printed output. Do not store your paper in a humid or damp environment.
Take out the Imaging Cartridge, shake it from side to side to distribute the toner, and then reinstall it. If the problem persists, replace the Imaging Cartridge as described in Replacing the Imaging Cartridge.
The Toner Save mode may be on. Turn off the Toner Save mode using the printer driver, OneTouch mode 2, or SelecType Config Menu.
The Density setting may be incorrect. Change the Density setting on the printer driver's Panel menu. (You can also change this setting from the printer's control panel using SelecType. For details, see SelecType Settings.)
If the problem persists, replace the Imaging Cartridge as described in Replacing the Imaging Cartridge.
Toner may have spilled in the paper feed path. Remove the Imaging Cartridge and then clean the paper path of the printer using a soft, lint-free cloth. See Cleaning the Printer for more information.
| Warning: |
| When opening the printer, do not touch the hot areas indicated on the caution labels inside cover A. |
Be sure you have selected the proper paper cassette in your software.
There may be no paper in the lower cassette. Load it with paper.
Make sure that the lower cassettes are properly installed as described in Installing.
Make sure you have not tried to load a cassette with too many sheets of paper. The cassettes can hold a maximum of 500 sheets or 1000 sheets (depending on the cassette) of 75g/m2 (20 lb) paper.
The Page Protect setting in the printer driver or SelecType may need to be changed.
You may not have enough memory installed. If you are printing at 600 dpi, printing at 300 dpi may solve the problem.
