Problem Solver

Paper Does Not Feed Correctly

Paper does not feed
Multiple pages feed
The paper jams
Paper improperly loaded
Paper is not ejected fully or is wrinkled
Thick Paper is ejected when sending a thick paper print job
Thick Paper does not eject properly after a thick paper print job is finished

Paper does not feed

Remove the stack of paper and make sure of the following:

• The paper is not curled or creased.

• The paper is not too old. See the instructions that came with the paper for more information.

• The paper is not loaded higher than the arrow mark on the left edge guide.

• The number of sheets in the paper stack does not exceed the limit specified for the media.

Loading capacities for Epson special media

• Paper is not jammed inside the printer. If it is, remove the jammed paper.
  See The paper jams

• The ink cartridges are not empty. If one is, replace the appropriate cartridge.
  See Replacing an Empty Ink Cartridge

• Special loading instructions that came with your paper have been followed. Load the paper again.

Loading Single Sheets of Paper

[Top]

Multiple pages feed

• Make sure that the paper stack is flush with or lower than the triangular load-limit mark on the edge guide.

• Make sure that the left edge guide is snug to the left edge of the paper.

• Make sure that the paper is not curled or folded. If so, flatten it or curl it slightly toward the opposite side before loading.

• Remove the stack of paper and make sure that the paper is not too thin.
  See Paper

• Fan the edges of the stack to separate the sheets, then reload the paper.

• If too many copies of a document are being printed, check the Copies setting on the printer software's Page Layout menu (Windows) or in the Print dialog box (Macintosh) and in your application.
  See Copies (Windows)
  See Copies (Macintosh)
  See Copies & Pages (Mac OS X)

[Top]

The paper jams

If the paper jams when you are printing from the sheet feeder, press the  paper button to eject the jammed paper. If the error does not clear, follow the steps below.

Turn off the printer.

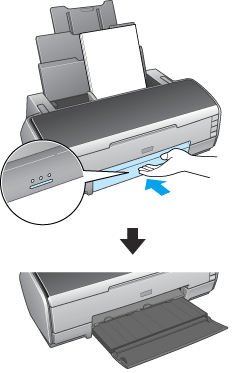

If the output tray is closed, open the output tray extension and slide out the output tray.

Remove the jammed paper from the output path.

If the jammed paper cannot be removed in this step, proceed to the next step.

Open the top printer cover, and remove the jammed paper gently.

Caution:

Do not pull the paper forcibly. Doing so may damage your printer.

If the jammed paper cannot be removed in this step, proceed to the next step.

Gently remove the jammed paper from the sheet feeder.

Caution:

Do not pull the paper forcibly. Doing so may damage your printer.

After removing the jammed paper, slide the output tray back in.

Note:

If you cannot remove a foreign object easily by yourself, do not use force and do not disassemble the printer. Call your dealer for assistance.

If your paper jams frequently, make sure of the following:

• The paper is smooth, not curled or wrinkled.

• The paper is of high quality.

• The printable side of the paper is face up in the sheet feeder.

• The paper stack was fanned before loading.

• The paper is not loaded above the arrow on the left edge guide.

• The number of sheets in the paper stack does not exceed the limit specified for that media.

Loading capacities for Epson special media

• The left edge guide is adjusted to fit your paper.

• The printer is on a flat, stable surface that extends beyond the printer base in all directions. The printer will not operate properly if it is tilted.

[Top]

Paper improperly loaded

If you have loaded the paper too far into the printer, the printer cannot feed the paper correctly. Turn the printer off and gently remove the paper. Then turn the printer on and reload the paper properly.

[Top]

Paper is not ejected fully or is wrinkled

• If the paper does not eject fully, press the  paper button, then open the top printer cover and remove the paper. Also, check the Paper Size setting in your application or printer software.
  See Making Settings on the Main Menu (Windows)
  See Page Setup Dialog Box (Mac OS 9)
  See Page Setup Dialog Box (Mac OS X)

• If the paper is wrinkled when it comes out, it may be damp or too thin. Load a new stack.

Note:

Store any unused paper in its original packaging in a dry area.

[Top]

Thick Paper is ejected when sending a thick paper print job

If the thick paper is ejected when you send a thick paper print job to the printer, it means that the printer is not ready. When a message stating that the printer is ready appears on the screen, reload the thick paper, and then press the paper button.

[Top]

Thick Paper does not eject properly after a thick paper print job is finished

Follow the instructions below.

Gently remove the thick paper.

Press the paper button.

[Top]
