Printer Software Settings / For Mac OS X

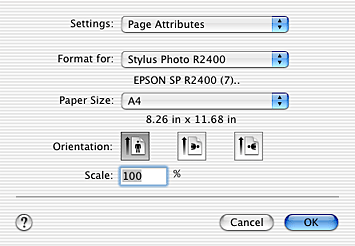

Page Setup Dialog Box

Page Setup dialog box settings

Note:
Page Setup dialog box is a standard feature of Mac OS X. See your operating system's documentation for details.

Page Setup dialog box settings

Allows you to make the appropriate Settings, Format for, Paper Size, Orientation, and Scale settings that you want to use for printing.

Settings

Page Attributes

Displays the page setup settings.

Custom Paper Size

Displays your custom paper size settings.

Summary

Displays the list of current setting items.

Format for

Stylus Photo R2400

Select your printer.

Paper Size

Manual - Front

Select this mode to print on thick paper fed into the front manual feed slot.

Roll Paper - Borderless Banner

Select this mode when you want to print multi-page data continuously on roll paper without margins.

Roll Paper - Borderless

Select this mode to print on roll paper without margins.

Roll Paper

Select this mode to print on roll paper with standard margins.

Sheet Feeder - Borderless

Select this mode to print without margins.

Manual - Roll

Select this mode to print single sheets of paper, fed into the rear manual feed slot, with standard margins.

Manual - Roll (Borderless)

Select this mode to print single sheets of paper, fed into the rear manual feed slot, without margins.

Orientation

Select the printing orientation.

Scale

Input the scale to reduce or enlarge the size of your data.

See Printable area

Note:
Always match the Format for setting in the Page Setup dialog box and the Printer setting in the Print dialog box. Otherwise the data may not be printed correctly.
