Lights and Buttons

Lights
Buttons

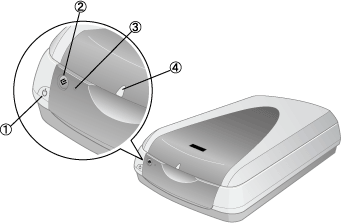

The scanner provides two buttons and two lights for scanner operations.

1. Power button
2.  Start button
3. indicator light
4. document cover light

Lights

Light

Color

Indicator Status

Meaning

indicator

Green

On

Ready to scan images.

Flashing

Initializing or busy scanning.

Red

Flashing

An error has occurred. See Error Indicator for more information.

(None)

Off

The scanner is off.

document cover light

Blue

On

Scanning transparent documents (such as films).

(None)

Off

Scanning reflective documents (such as photos and documents).


[Top]

Buttons

Button

Function


Power

Powers on and off the scanner.


Start

Scans and sends the captured image to an assigned application in a single step. Before using this feature, make sure you have installed EPSON Scan and EPSON Smart Panel software. See Use the Start Button on the Scanner for more details.
