Scanner Parts

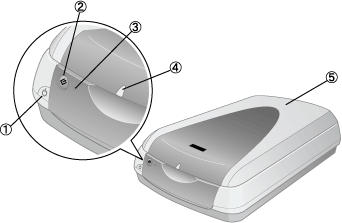

1. Power button
2.  Start button
3. indicator light
4. document cover light
5. document cover

1. reflective document mat
2. transportation lock
3. carriage (in the home position)
4. document table

Note:

Your document cover also functions as a film adapter for scanning slides and film. Be sure the reflective document mat is removed when scanning films.

1. IEEE 1394 (FireWire) interface connector
2. USB interface connector
3. accessory interface connector
4. transportation lock
