Scan Multiple Images at Once

Scan multiple images in the Full Auto Mode
Scan multiple images in the Home Mode
Scan documents with the same size in the Office Mode
Scan multiple images in the Professional Mode

You can scan multiple photos and documents placed together on the document table, or film and multiple slides as separate images at once.

Note:
Depending on the application, you may not be able to scan multiple images.

Scan multiple images in the Full Auto Mode

Follow the steps below to scan multiple images in the Full Auto Mode.

Note:
This mode cannot be used when the optional Automatic Document Feeder is installed.

Place your materials on the document table.
Placing Photos and Documents on the Document Table
Loading and Setting Film on the Document Table

Note:
Position each photo at least 20 mm apart from its adjacent photos.

Start EPSON Scan.
Starting EPSON Scan
Choosing and Changing the Scanning Mode

EPSON Scan automatically previews the images, and recognizes the document source and type.

After EPSON Scan has previewed and recognized the document type, the following window appears.

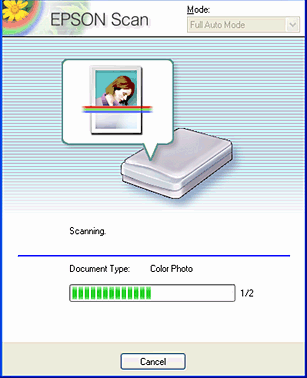

EPSON Scan automatically locates the target images and modifies their skew, and then starts scanning. You can see the number of scanned images.

The scanned images are sent to the application or saved to the specified folder.

Note:
  • If EPSON Scan cannot recognize the correct document source, you can specify the document type in the Options dialog box. For details, see the online help.
  • Depending on the image you want to scan, you may not get the expected scanned image. In this case, scan the image in the Home Mode or Professional Mode.


[Top]

Scan multiple images in the Home Mode

Follow the steps below to scan multiple images in the Home Mode.

Place your materials on the document table.
Placing Photos and Documents on the Document Table
Loading and Setting Film on the Document Table

Note:
  • Position each photo at least 20 mm apart from its adjacent photos.
  • In the Home Mode, you cannot load paper using the optional Automatic Document Feeder. Select the Office Mode or the Professional Mode when you want to load paper using the Automatic Document Feeder.

Start EPSON Scan.
Starting EPSON Scan
Choosing and Changing the Scanning Mode

The following window appears.

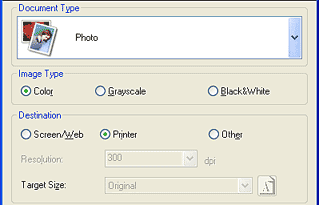

Specify the Document Type, Image Type, and Destination settings to match your images.

Click Preview to preview the images.

Note:
When you select Photo, Positive Film, Color Negative Film, or B&W Negative Film as the Document Type, you can select a preview method: Thumbnail Preview or Normal Preview. Click the small arrow to the right of the Preview button and then select Thumbnail or Normal.

In the Thumbnail Preview window:
EPSON Scan automatically locates the frames of the film and multiple photos, and then preview the images as thumbnail images. Select the number check box of an image you want to scan.

Note:
Depending on the materials you want to scan, EPSON scan may not be able to automatically locate the frames of the film and multiple photos, or preview the images as thumbnails. In this case, preview the images in the Normal Preview window.

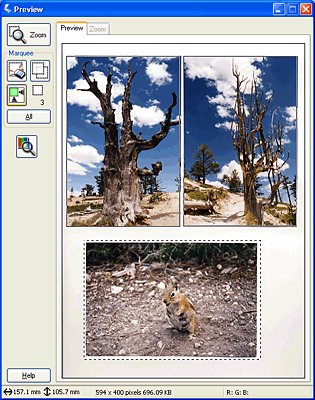

In the Normal Preview window:
Create marquees on the previewed image to select an area you want to scan. You can create up to 50 marquees. For more details, see Using Marquees.

Note:
When the output size of the scanned image is already decided, select an appropriate setting from the Target Size list. A marquee proportional to the measurements of the Target Size setting appears in the Preview window. You can move this marquee to the area of the image you want to scan. For more details, see the online help.

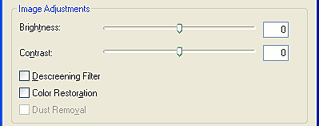

Make adjustments using the image quality adjustment tools, if necessary.

Click Scan. EPSON Scan starts scanning.

The scanned images are sent to the application or saved to the specified folder.


[Top]

Scan documents with the same size in the Office Mode

Follow the steps below to scan multiple documents in the Office Mode.

Note:
This mode can be used only when the optional Automatic Document Feeder is installed.

Place your materials on your scanner.

Loading Paper into Your Automatic Document Feeder

If you want to manually place your materials on the document table, see Loading documents manually for details.

Start EPSON Scan.
Starting EPSON Scan
Choosing and Changing the Scanning Mode

The following window appears.

Specify the Image Type, and Destination settings to match your images.

Click Preview to preview the images.

Note:
You can scan documents without preview in this mode; just simply select the Size setting you want to scan and then click Scan. EPSON Scan automatically sets the size you selected and then scan documents.

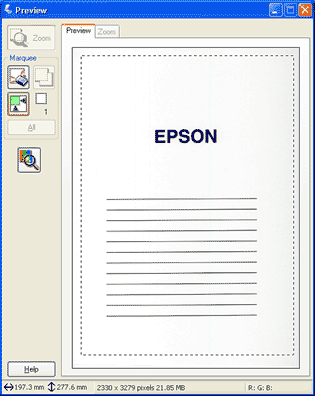

In the Normal Preview window, you can create marquees on the previewed image to select an area you want to scan. For more details, see Using Marquees.

Make adjustments using the image quality adjustment tools, if necessary.

Click Scan. EPSON Scan starts scanning.

The scanned images are sent to the application or saved to the specified folder.


[Top]

Scan multiple images in the Professional Mode

Follow the steps below to scan multiple materials in the Professional Mode.

Place your materials on the document table.
Placing Photos and Documents on the Document Table
Loading and Setting Film on the Document Table

When using the Automatic Document Feeder, follow the steps explained in Loading Paper into Your Automatic Document Feeder or later to scan documents.

Start EPSON Scan.
Starting EPSON Scan
Choosing and Changing the Scanning Mode

The following window appears.

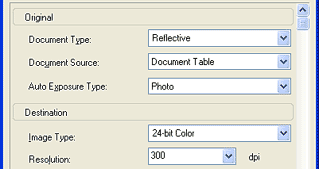

Specify the Original, Image Type, and Resolution settings to match your images.

Click Preview to preview the images.

Note:
When you select Transparency as the Document Type, you can select a preview method: Thumbnail Preview or Normal Preview. Click the small arrow to the right of the Preview button and then select Thumbnail or Normal.

In the Thumbnail Preview window:
EPSON Scan automatically locates the frames of the film and then preview the images as thumbnail images. Select the number check box of an image you want to scan.

Note:
Depending on the materials you want to scan, EPSON scan may not be able to automatically locate the frames of the film, or preview the images as thumbnails. In this case, preview the images in the Normal Preview window.

In the Normal Preview window:
Create marquees on the previewed image to select an area you want to scan. You can create up to 50 marquees. For more details, see Using Marquees.

Note:
When the output size of the scanned image is already decided, select an appropriate setting from the Target Size list. A marquee proportional to the measurements of the Target Size setting appears in the Preview window. You can move this marquee to the area of the image you want to scan. For more details, see the online help.

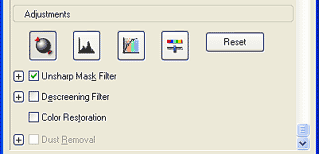

Make adjustments using the image quality adjustment tools, if necessary.

Click Scan. EPSON Scan starts scanning.

The scanned images are sent to the application or saved to the specified folder.


[Top]
