Settings by System / Settings for Windows NT 4.0/3.51

Printing with TCP/IP

Installing LPR software in Windows NT 4.0
Installing LPR software in Windows NT 3.51
Configuring for TCP/IP using EpsonNet WinAssist
Setting up the printer in Windows NT 4.0
Setting up the printer in Windows NT 3.51
FTP Printing

To use the printer on a TCP/IP network in Windows NT (LPR), follow the steps below.

Installing LPR software in Windows NT 4.0

Follow the steps below to install LPR software in Windows NT 4.0. If you have already installed Microsoft TCP/IP Printing, you can skip these steps.

Double-click the Network icon in the Control Panel and click Add on the Services menu.

Select Microsoft TCP/IP Printing and click OK.

Follow the instructions on the screen.

For more information, see your Windows NT 4.0 documentation.

[Top]

Installing LPR software in Windows NT 3.51

Follow the steps below to install LPR software in Windows NT 3.51. If you have already installed Microsoft TCP/IP Printing, you can skip these steps.

Double-click the Network icon in the Control Panel to open the Network Settings dialog box.

If Microsoft TCP/IP Printing is in the Installed Software list box, you can skip to the next section. Otherwise, click Add Software.

Select TCP/IP Protocol and related components and click Continue.

Select TCP/IP Network Printing Support. Then click Continue.

Follow the instructions on the screen.

For more information, see your Windows NT 3.51 documentation.

[Top]

Configuring for TCP/IP using EpsonNet WinAssist

To use TCP/IP on the network, you need to set an IP address for the Internal Print Server.

See Setting the IP Address Using EpsonNet WinAssist/MacAssist to configure the Internal Print Server for TCP/IP.

Note:

Make sure you have installed TCP/IP in your operating system. For information on installing TCP/IP, see your operating system documentation.

[Top]

Setting up the printer in Windows NT 4.0

After configuring the Internal Print Server, you need to set up the network printer. Follow these steps to set up the printer in Windows NT 4.0.

Double-click the My computer icon, then double-click the Printer folder.

Double-click Add Printers, and select the My Computer radio button, then click Next.

Click Add Port in the Add Printer Wizard dialog box.

Select LPR Port from the Available Printer Port list, and click the New Port button.

The Add LPR compatible printer dialog box appears. Type the IP address of the Internal Print Server in the first text box and an appropriate printer name in the second text box, and click OK.

Follow the on-screen instructions to install the printer driver.

Note:

When you share the printer, announce the printer name and the location to clients so they will be able to know which printer to use on the network.

[Top]

Setting up the printer in Windows NT 3.51

After configuring the Internal Print Server, you need to set up the network printer. Follow these steps to set up the printer in Windows NT 3.51.

Note:

Install the correct printer driver before starting these steps.

Click Print Manager in the Main program group.

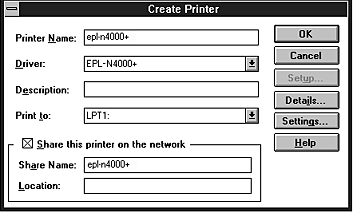

Choose Create Printer from the Printer menu.

Type the printer name, and select the printer driver from the Driver pull-down menu.

To share the printer on a network, select the Share this printer on the network check box. Type the share name and the location.

Choose Other from the Print To pull-down menu. The Print Destinations dialog box appears.

Select LPR Port from the Available Print Monitors list and click OK. The Add LPR compatible printer dialog box appears.

Type the previously specified IP address of the Internal Print Server and the appropriate printer name. Then click OK.

Verify that all your settings and are correct in the Create Printer dialog box. Make changes if necessary.

Click OK to start installing the printer driver. Follow the on-screen instructions.

Note:

When you share the printer, announce the printer name and the location to the clients so they will be able to know which printer to use on the network.

Change the type of access of the spool directory

You need to change the access rights of the spool directory when you create a shared printer on the Windows NT 3.51 Server (if you have set up your computer to use an NTFS file system, rather than a FAT file system).

Start the File Manager and point the cursor at
\WINNT35\SYSTEM32\SPOOL\PRINTERS.

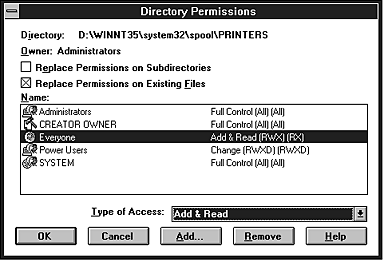

Choose Permissions from the Security menu.

Change the type of access of Everyone to ADD & READ (RWX)(RX), and click OK.

[Top]

FTP Printing

You can print using FTP command from Windows. First, you need to set the IP address for the Internal Print Server.

See Changing the IP address using EpsonNet WebAssist to configure the Internal Print Server for TCP/IP.

The following is an example of printing using the FTP command (Text after ">" is user input).

C:Windows>ftp 22.33.44.55

Connected to 22.33.44.55

220 FTP server (EPSON FTPD version 1.01) ready.

User (22.33.44.55:(none)):

230 VUser (none) logged in.

ftp>put c:\testdata\aa.txt

200 PORT command successful.

150 Opening ASCII mode data connection for EPL-N4000+.

226 Transfer complete.

ftp> bye

221 Goodbye.
