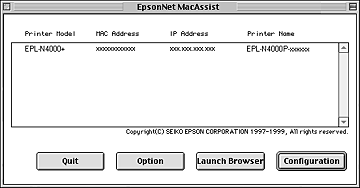

EpsonNet MacAssist dialog box

This section describes the EpsonNet MacAssist dialog box.

List box:

The print server information is displayed in the List box. The information consists of the printer model, the MAC address, the IP address, and the print server name.

Option:

You can set the time-out used for communication by EpsonNet MacAssist to a value between 3 and 99 seconds. The default value is 5 seconds.

By clicking Select Zone, you can add a zone to search for print servers in a particular zone. The print servers which belong to the selected zone are displayed in the List box and you can change their settings. The zones acquired from the network environment are displayed in the Zone list. The zones to be searched are displayed in the Search list. The maximum number of zones that can be displayed in the Zone list and Search zone is 2000. You need to restart EpsonNet MacAssist for settings to take effect.

Launch Browser button:

Select the printer you want to configure, and then click the Launch Browser button. EpsonNet WebAssist will start to configure the Internal Print Server. EpsonNet MacAssist automatically closes when the browser launches.

Configuration button:

Select the printer you want to configure, and click this button to configure the Internal Print Server using EpsonNet MacAssist.

Quit button:

Exits EpsonNet MacAssist.


[Top]

Setting menus

About passwords

The password is required to configure an Internal Print Server. There is no default password. When you click OK in the setting dialog box or click the Return to default button, the Password dialog box appears.

To set the password or when you want to change the current password, click Change.

After clicking Change, the following dialog box appears. Type a password (up to 20 characters) and click OK. Passwords are case sensitive.

Note:
  • The password is used for EpsonNet WinAssist, MacAssist, and WebAssist.
  • Since a new password becomes effective after the data is sent to the Internal Print Server, use the old password immediately after changing the password.
  • If you forget your password, initialize the printer. To do this, turn on the printer while pressing the Continue (Reset) button on the printer's control panel. Be aware that all the printer and network settings you have made will be cleared when you initialize.

EpsonNet MacAssist menu

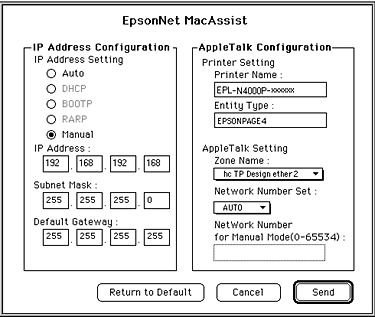

You can make IP address settings and AppleTalk settings in the dialog box pictured below.

IP Address Configuration:

Items

Explanations

IP Address Setting

Select the method of acquiring an IP address.

IP Address

Set the IP address for the printer.

Subnet Mask

Set the subnet mask of the IP address.

Default Gateway

Set the gateway.

AppleTalk Configuration:

Items

Explanations

Printer Name

Type the name of the printer.

Entity Type

Displays the Entity type of the printer.

Zone Name

Select the Zone for AppleTalk.

Network Number Set

Specify the setting method for the AppleTalk network number.

Network Number for Manual Mode

Type the network number.

Return to Default

Resets all network configuration settings of the printer to the default settings.

Send

Updates the settings.

Cancel

Cancel any changes.
