Administrator's Guide
|
|
Settings by System / Settings for Windows 2000/NT
Printing with TCP/IP
Configuring for TCP/IP using EpsonNet WinAssist
Printing via Standard TCP/IP Port Monitor in Windows 2000
Printing via LPR software in Windows NT 4.0
FTP printing
To use the printer on a TCP/IP network in Windows NT (LPR), follow the steps below.
Configuring for TCP/IP using EpsonNet WinAssist
To use TCP/IP on the network, you need to set an IP address for the Internal Print Server.
See Setting the IP Address Using EpsonNet WinAssist/MacAssist to configure the Internal Print Server for TCP/IP.
 |
Note:
|
 |
Make sure you have installed TCP/IP in your operating system. For information on installing TCP/IP, see your operating system's online help.
|
[Top]
Printing via Standard TCP/IP Port Monitor in Windows 2000
When using the printer on a TCP/IP network in Windows 2000, follow the steps below to connect the network printer to your computer using Standard TCP/IP Port Monitor.
Setting up the printer in Windows 2000
 |
Make sure the printer is turned on.
|
 |
Click Start, point to Settings, and then click Printers.
|
 |
Double-click Add Printer to start the Add Printer wizard, and then click Next.
|
 |

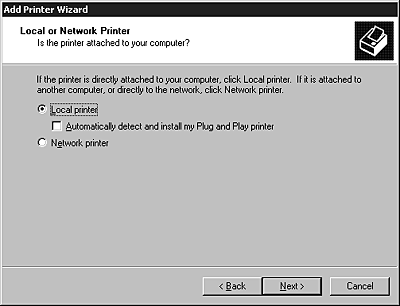

Click Local printer, clear the Automatically detect my printer check box, and then click Next.
|
| |
Note:
|
| |
You must clear the Automatically detect my printer check box because the printer is attached directly to the network, not to a Windows 2000 computer.
|
 |

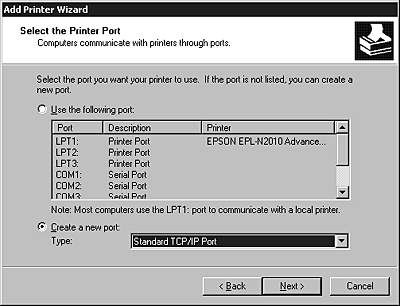

Click the Create a new port radio button, and then select Standard TCP/IP Port from the list. Then click Next.
|
 |

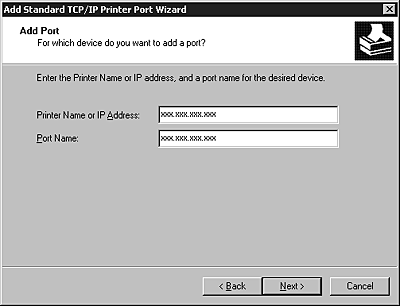

Enter the IP address of the Internal Print Server and click Next.
|
 |

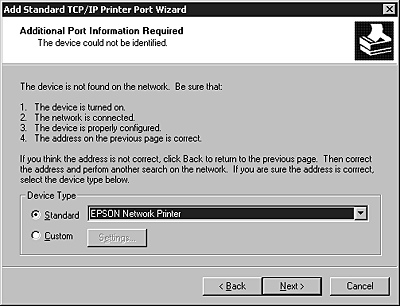

If an error occurs, the following dialog box appears. Click the Standard radio button and then select EPSON Network Printer.
|
 |
Follow the on-screen instructions to finish setting up the printer.
|
[Top]
Printing via LPR software in Windows NT 4.0
Installing LPR software in Windows NT 4.0
Follow the steps below to install the LPR software on Windows NT 4.0. If you have already installed Microsoft TCP/IP Printing, you can skip these steps.
|
|
Double-click the Network icon in the Control Panel and click Add on the Services menu.
|
|
|
Select Microsoft TCP/IP Printing and click OK.
|
|
|
Follow the instructions on the screen.
|
For more information, see your Windows NT 4.0 documentation.
Setting up the printer in Windows NT 4.0
After configuring the Internal Print Server, you need to set up the network printer. Follow these steps to set up the printer in Windows NT 4.0.
|
|
Make sure the printer is turned on.
|
|
|
Click Start, point to Settings, and then click Printers.
|
|
|
Double-click the Add Printers icon, and click the My Computer radio button, then click Next.
|
|
|
Click Add Port in the Add Printer Wizard dialog box.
|
|
|
Select LPR Port from the Available Printer Port list, and click New Port.
|
|
|
The Add LPR Compatible Printer dialog box appears. Type the IP address of the Internal Print Server in the first text box and an appropriate printer name in the second text box, and click OK.
|
|
|
Follow the on-screen instructions to install the printer driver.
|
|
Note:
|
|
When you share the printer, announce the printer name and the location to clients so they will be able to know which printer to use on the network.
|
[Top]
FTP printing
You can print using FTP command from Windows. First, you need to set the IP address for the Internal Print Server.
See Changing the IP address using EpsonNet WebAssist to configure the Internal Print Server for TCP/IP.
The following is an example of printing using the FTP command (Text after ">" is user input).
C:Windows>ftp 22.33.44.55
Connected to 22.33.44.55
220 FTP server (EPSON FTPD version 1.01) ready.
User (22.33.44.55:(none)):
230 VUser (none) logged in.
ftp>put c:\testdata\aa.txt
200 PORT command successful.
150 Opening ASCII mode data connection for EPL-N2050.
226 Transfer complete.
ftp> bye
221 Goodbye.
[Top]
