Using the Printer Driver / For Windows

Using the Reserve Job Function

Re-Print Job
Verify Job
Stored Job
Confidential Job

The Reserve Job function allows you to store print jobs in the printer's Hard Disk Drive and to print them later directly from the printer's control panel. Follow the instructions in this section to use the Reserve Job function.

Note:
You need an optional Hard Disk Drive installed in your printer in order to use the Reserve Job function. Make sure that the drive is correctly recognized by the printer driver before you start using the Reserve Job function.

The table below gives an overview of the Reserve Job options. Each option is described in detail later in this section.

Reserve Job Option

Description

Re-Print Job

Lets you print the job now and store it for later reprinting.

Verify Job

Lets you print one copy now to verify the content before printing multiple copies.

Stored Job

Lets you save the print job without printing it now.

Confidential Job

Lets you apply a password to the print job and save it for later printing.

Jobs stored in the Hard Disk Drive are handled differently depending on the Reserve Job option. Refer to the tables below for details.

Reserve Job Option

Maximum Number of Jobs

When Maximum is Exceeded

When Drive is Full

Re-Print Job + Verify Job

64
(combined total)

Oldest job automatically replaced with newest

Oldest job automatically replaced with newest

Stored Job

64

Delete old jobs manually

Delete old jobs manually

Confidential Job

64

Reserve Job Option

After Printing

After Turning Off Printer or Using Reset All

Re-Print Job

data remains in hard drive

Data is cleared

Verify Job

Stored Job

Data remains in hard drive

Confidential Job

data is cleared

Data is cleared

Re-Print Job

The Re-Print Job option allows you to store the job you are currently printing so that you can reprint it later directly from the control panel.

Follow these steps to use the Re-Print Job option.

Click the Basic Settings tab

Select the Collate in Printer check box. Specify the number of copies to be printed, and make other printer driver settings as appropriate for your document.

Click the Optional Settings tab and click Reserve Jobs Settings. The Reserve Job Settings dialog box appears.

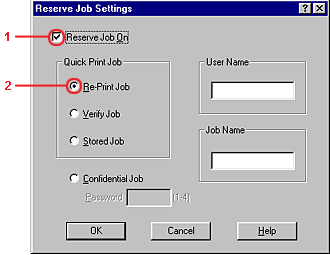

Select the Reserve Job On check box and click the Re-Print Job button.

Enter a user name and job name in the corresponding text boxes.

Note:
If you want to create a thumbnail of the first page of a job, select the Create a thumbnail check box. Thumbnails can be accessed by entering http:// followed by the internal print server's IP address in a Web browser.

Click OK. The printer prints your document, and stores the print job data on the Hard Disk Drive.

To reprint or delete this data using the printer's control panel, see Printing and Deleting Reserve Job Data.


[Top]

Verify Job

The Verify Job option allows you to print one copy in order to verify the content before printing multiple copies.

Follow these steps to use the Verify Job option.

Click the Basic Settings tab.

Select the Collate OK check box. Specify the number of copies to be printed, and make other printer driver settings as appropriate for your document.

Click the Optional Settings tab and click Reserve Jobs Settings. The Reserve Job Settings dialog box appears.

Select the Reserve Job On check box and click the Verify Job button.

Enter a user name and job name in the corresponding text boxes.

Note:
If you want to create a thumbnail of the first page of a job, select the Create a thumbnail check box. Thumbnails can be accessed by entering http:// followed by the internal print server's IP address in a Web browser.

Click OK. The printer prints one copy of your document, and stores the print data with information on the number of remaining copies on the Hard Disk Drive.

After you have confirmed the printout, you can print the remaining copies or delete this data using the printer's control panel. See Printing and Deleting Reserve Job Data for instructions.


[Top]

Stored Job

The Stored Job option is useful for storing documents you print on a regular basis, such as invoices. The stored data remains on the Hard Disk Drive even if you turn off the printer or reset it using the Reset All function.

Follow these steps to store print data using the Stored Job option.

Click the Basic Settings tab.

Select the Collate OK check box. Specify the number of copies to be printed, and make other printer driver settings as appropriate for your document.

Click the Optional Settings tab and click Reserve Jobs Settings. The Reserve Job Settings dialog box appears.

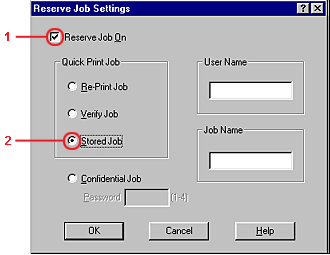

Select the Reserve Job On check box, and the Stored Job button.

Enter a user name and job name in the corresponding text boxes.

Note:
If you want to create a thumbnail of the first page of a job, select the Create a thumbnail check box. Thumbnails can be accessed by entering http:// followed by the internal print server's IP address in a Web browser.

Click OK. The printer stores the print data in the Hard Disk Drive.

To print or delete this data using the printer's control panel, see Printing and Deleting Reserve Job Data.


[Top]

Confidential Job

The Confidential Job option allows you to apply passwords to print jobs stored on the Hard Disk Drive.

Follow these steps to store print data using the Confidential Job option.

Make printer driver settings as appropriate for your document.

Click the Optional Settings tab and click the Reserve Jobs Settings button. The Reserve Jobs Settings dialog box appears.

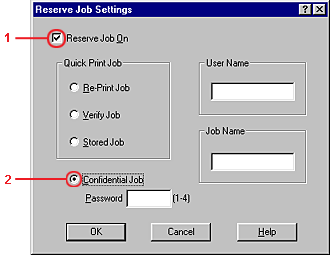

Select the Reserve Job On check box and the Confidential Job button.

Enter a user name and job name in the corresponding text boxes.

Set the password for the job by entering a four-digit number in the password text box.

Note:
  • Passwords must be four digits.
  • Only numbers from 1 through 4 can be used for passwords.
  • Keep passwords in a safe place. You must enter the correct password when printing a Confidential Job.

Click OK. The printer stores the print job in the Hard Disk Drive.

To print or delete this data using the printer's control panel, see Printing and Deleting Reserve Job Data.


[Top]
