Using the Printer Driver / For Windows

Making Changes to Printer Settings

Making the print quality setting
Resizing printouts
Modifying the print layout
Using a watermark
Using an overlay
Using HDD form overlay
Printing with the duplex unit
Making Extended Settings
Making Optional Settings

Making the print quality setting

You can change the print quality of printouts through settings in the printer driver. With the printer driver, you can make the print settings by choosing from a list of predefined settings, or customizing the settings.

Choosing the print quality by using the Automatic setting

You can change the print quality of printouts to favor speed or detail. There are two levels of print output, 300 dpi and 600 dpi. 600 dpi provides high quality, precise printing, but requires more memory and slows the printing speed.

When the Automatic button is selected in the Basic Settings menu, the printer driver takes care of all detailed settings according to the color setting you select. Color and resolution are the only settings you have to make. You can change other settings such as paper size or orientation in most applications.

Note:

Online help provides more information on printer driver settings.

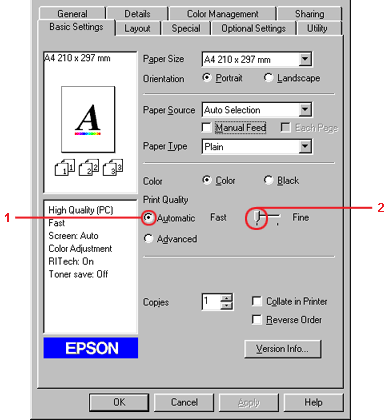

Click the Basic Settings tab.

Click the Automatic button. Then choose desired printing resolution from Fast (300 dpi) or Fine (600 dpi) with the slider bar.

Click OK to accept the setting.

Note:

If printing is unsuccessful or a memory-related error message appears, selecting a lower resolution may allow printing to proceed.

Using the predefined settings

The predefined settings are provided to help you optimize print settings for a particular kind of printout, such as presentation documents or images taken by a video or digital camera.

Follow these steps to use the predefined settings.

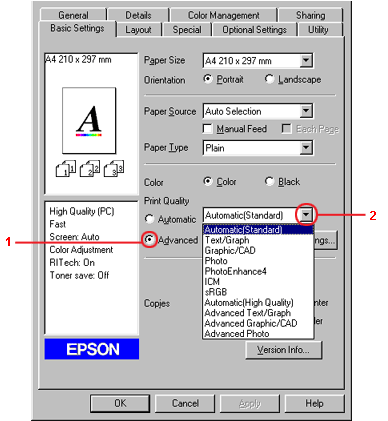

Click the Basic Settings tab.

Select the Advanced button. You will find the predefined settings in the list on the right of the Automatic button.

Note:

This screen is a Windows Me, 98 and 95 screen.

Select the most appropriate setting from the list according to the type of document or image you want to print.

When you choose a predefined setting, other settings such as Printing Mode, Resolution, Screen, and Color Management are set automatically. Changes are shown in the current settings list on the left of the Basic Settings menu.

This printer driver provides the following predefined settings:

Automatic (Standard)

Suitable for regular printing, especially photos.

Text/Graph

Suitable for printing documents that include text and graphs, such as presentation documents.

Graphic/CAD

Suitable for printing graphics and charts.


Suitable for printing photos.

PhotoEnhance4

Suitable for printing video captures, images taken with a digital camera, or scanned images. EPSON PhotoEnhance4 automatically adjusts the contrast, saturation, and brightness of the original image data to produce sharper, more vivid color printouts. This setting does not affect your original image data.

ICM (Except for Windows NT 4.0)

ICM stands for Image Color Matching. This feature automatically adjusts printout colors to match colors on your screen.

sRGB

When using equipment which supports sRGB, the printer performs Image Color Matching with these pieces of equipment before printing. To confirm that your equipment supports sRGB, contact your equipment dealer.

Automatic (High Quality)

Suitable for printing high-quality printing documents.

Advanced Text/Graph

Suitable for printing high-quality presentation documents that include text and graphs.

Advanced Graphic/CAD

Suitable for printing high-quality graphs, charts, and photos.

Advanced Photo

Suitable for printing high-quality scanned photos and digitally-captured images.

Customizing print settings

If you need to change detailed settings, make the settings manually.

Follow these steps to customize your print settings.

Click the Basic Settings tab.

Click the Advanced button, then click More Settings.

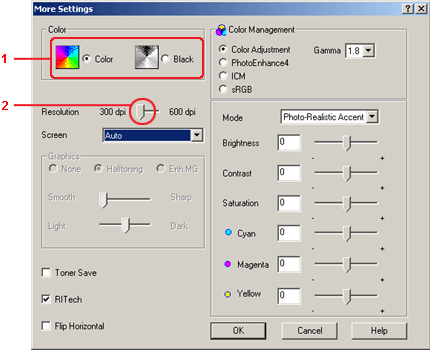

Choose Color or Black as the Color setting. Then choose desired printing resolution from 300 dpi or 600 dpi with the Resolution slider bar.

Note:

When making the other settings, see online help for details on each setting.

Note:

This screen is a Windows Me, 98, and 95 screen.

Click OK to apply your settings and return to the Basic Settings menu.

Saving your settings

To save your custom settings, click the Advanced button and click Save Settings on the Basic Settings menu. The Custom Settings dialog box appears.

Type a name for your custom settings in the Name box, and click Save. Your settings will appear in the list to the right of the Automatic button in the Basic Settings menu.

Note:

You cannot use a predefined setting name for your custom settings.

To delete a custom setting, click the Advanced button and click Save Settings in the Basic Settings menu, select the setting in the Custom Settings dialog box and then click Delete.

You cannot delete predefined settings.

If you change any setting in the More Settings dialog box when one of your custom settings is selected in the Advanced Settings list on the Basic Settings menu, the setting selected in the list changes to Custom Settings. The custom setting that was previously selected is not affected by this change. To return to your custom setting, simply reselect it from the current settings list.

[Top]

Resizing printouts

You can have your document enlarged or reduced during printing.

To automatically resize pages to fit the output paper

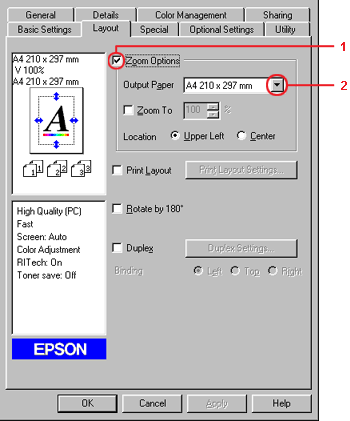

Click the Layout tab.

Select the Zoom Options check box. Then select the desired paper size from the Output Paper drop-down list. The page will be printed to fit on the paper you have selected.

Click the Upper Left button (to print reduced page image at upper left corner of the paper) or the Center button (to print reduced page image with centering) for Location setting.

Click OK to accept the settings.

To resize pages by a specified percentage

Click the Layout tab.

Select the Zoom Options check box.

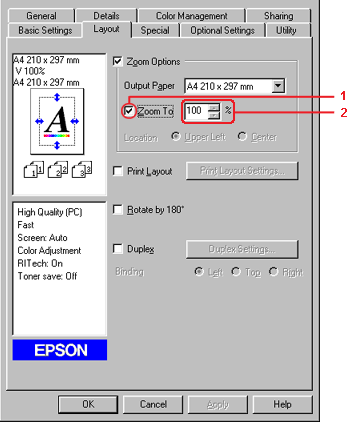

Select the Zoom To check box. Then specify the magnification percentage in the box.

Note:

The percentage can be set between 50% and 200% in 1% increments.

Click OK to accept the settings.

If necessary, select the paper size to be printed from the Output Paper drop-down list.

[Top]

Modifying the print layout

Your printer can print either two or four pages onto a single page and specifies the printing order, automatically resizing each page to fit the specified paper size. You can also choose to print documents surrounded by a frame.

Click the Layout tab.

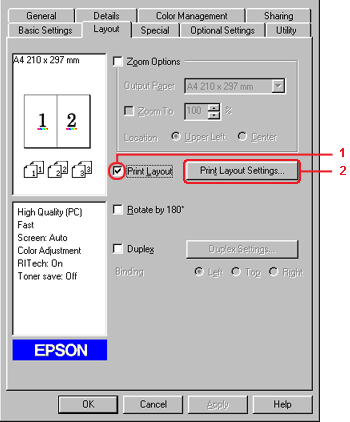

Select the Print Layout check box, and click Print Layout Settings. The Print Layout Settings dialog box appears.

Select the number of pages you want to print on one sheet of paper. Then Select the Page Order in which the pages are printed on each sheet.

Select the Print the Frame check box when you want to print the pages surrounded by a frame.

Note:

The Page Order choices depend on the number of pages selected above, and the paper orientation (Portrait or Landscape) selected on the Basic Settings menu.

Click OK to accept the settings and return to the Layout menu.

[Top]

Using a watermark

Follow the steps to use a watermark on your document. In the Watermark dialog box, you can select from a list of predefined watermarks, or you can make an original watermark with text or a bitmap. The Watermark dialog box also allows you to make a variety of detailed watermark settings. For example, you can select the size, intensity, and position of your watermark.

Click the Special tab.

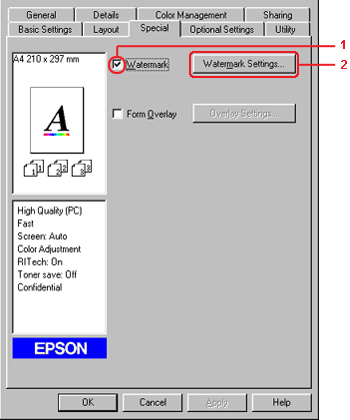

Select the Watermark check box. Then click Watermark Settings. The Watermark dialog box appears.

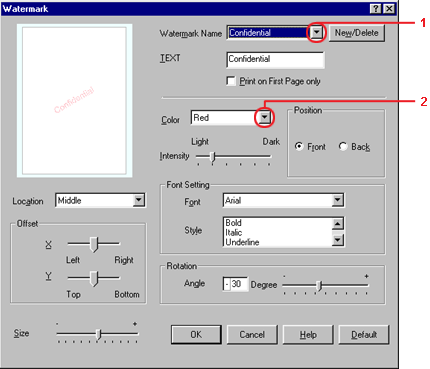

Select a watermark from the Watermark Name drop-down list. Then select the color from the Color drop-down list.

Adjust the image intensity of the watermark with the Intensity slider bar.

Select Front (to print the watermark in the foreground of the document) or Back (to print the watermark in the background of the document) for the Position setting.

Select the location on the page where you want to print the watermark from the Location drop-down list.

Adjust the horizontal or vertical Offset position.

Adjust the size of the watermark with the Size slider bar.

Click OK to accept the settings and return to the Special menu.

Making a new watermark

You can make a new watermark as follows:

Click the Special tab.

Select the Watermark check box.

Click Watermark Settings. The Watermark dialog box appears.

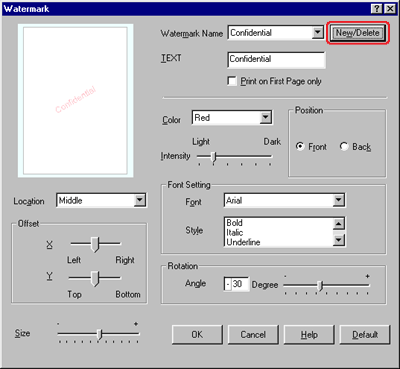

Click New/Delete. The User Defined Watermarks dialog box appears.

Select Text or BMP and type a name for the new watermark in the Name box.

Note:

This screen appears when you select the Text button.

If you select Text, type the watermark text in the Text box. If you select BMP, click Browse, select the BMP file you want to use, then click OK.

Click Save. Your watermark will appear in the List box.

Click OK to register the new watermark settings.

Note:

You can register up to 10 watermarks.

[Top]

Using an overlay

The Overlay Settings dialog box allows you to prepare standard forms, or templates, that you can use as overlays when printing other documents. This feature can be useful for creating corporate letterheads or invoices.

Note:

The overlay function is available only when the High Quality (Printer) is selected for the Graphic Mode in the Extended Settings dialog box from the Optional Settings menu.

Creating an overlay

Follow these steps to create and save a form overlay file.

Open your application and create the file that you want to use as an overlay.

When the file is ready to be saved as an overlay, choose Print or Print Setup from the File menu of your application. Then click Printer, Setup, Options, Properties, or a combination of these buttons, depending on your application.

Click the Special tab.

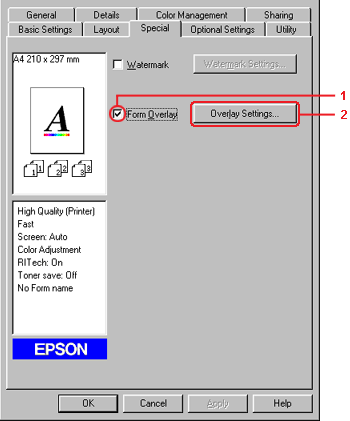

Select the Form Overlay check box, and click the Overlay Settings. The Overlay Settings dialog box appears.

Click the Create Overlay Data button, then click Settings. The Form Settings dialog box appears.

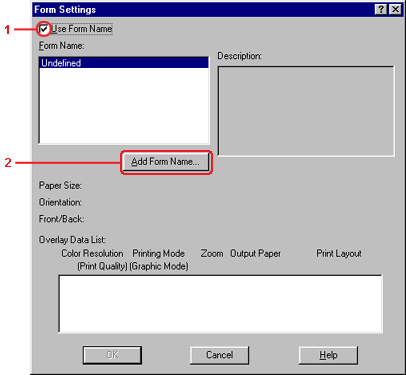

Select the Use Form Name check box. Then click Add Form Name. The Add Form dialog box appears.

Type the form name in the Form Name box and its description in the Description box.

Click the To Front or To Back button to specify whether the overlay will be printed as background or foreground of the document.

Click Register to accept the settings and return to Form settings dialog box.

Click OK in the Form Settings dialog box.

Click OK in the Overlay Settings dialog box.

Print the file saved as overlay data. It is possible to save any kind of file as an overlay. The overlay data is created.

Printing with an overlay

Follow the steps to print a document with overlay data.

Open the file to print with overlay data.

From the application, access the printer driver. Open the File menu and choose Print or Print Setup. Then click Printer, Setup, Options, Properties, or a combination of these buttons, depending on the application you use.

Click the Special tab.

Select the Form Overlay check box, and click Overlay Settings to open the Overlay Settings dialog box.

Choose the form from the Form list, then click OK to return the Special menu.

Click OK to print the data.

Different printer settings overlay data

The overlay data is made with the current printer settings (such as Resolution: 600 dpi). If you want to make the same overlay with different printer settings (such as 300 dpi), follow the instructions below.

Re-access the printer driver as described in step 2 in Creating an overlay.

Make the printer settings and exit the printer driver.

Send the same data that you made by application to the printer like step 12 in Creating an overlay.

This setting is available only for Form Name data.

[Top]

Using HDD form overlay

This function enables faster printing with form overlay data. Windows users can use the form data registered in the optional Hard Disk Drive installed in the printer though only an administrator can register or delete the form data in the Hard Disk Drive. You can access this function from the Form Selection dialog box in the printer driver.

Note:

This function is not available when the Color setting is set to Black in the printer driver's Basic Settings menu.

This function is not available if the optional Hard Disk Drive is not installed.

Use this function by inputting the registered form name after printing the Print List.

When the document's resolution, paper size or paper orientation settings are different from the form overlay data that you use, you cannot print the document with the form overlay data.

This function is available in the ESC/Page Color mode.

Register the form overlay data on the Hard Disk Drive

Only a network administrator using Windows XP/2000/NT 4.0 is allowed to register the form overlay data on the optional Hard Disk Drive. See the Network Guide for details.

Printing with HDD form overlay

All Windows users can use the registered form data in the optional Hard Disk Drive. Follow these steps to print with HDD form data.

Select the Special tab.

Select the Form Overlay check box, and click the Overlay Settings button. The Overlay Settings dialog box appears.

Select No Form name in the Form text box, and click Details. The Form Selection dialog box appears.

Note:

Make sure that the No Form Name is selected. If any form name is selected, another dialog box will appear.

Click Printer's HDD, then enter the registered form name.

Note:

If you need the list of the registered form data, click Print List to print it and confirm the form name. Also, if you need a sample print-out of the form data, enter the form name and click the Print Sample button.

Choose To Back or To Front to print the form data as background or foreground of the document. Then click OK and return to the Special menu.

Click OK to print data.

Delete the form overlay data in the Hard Disk Drive

Only a network administrator using Windows XP/2000/NT 4.0 is allowed to delete or edit the form overlay data in the optional Hard Disk Drive. See the Network Guide for details.

[Top]

Printing with the duplex unit

Duplex printing prints on both sides of the paper. When printing for binding, the binding edge can be specified as required to produce the desired page order.

As an ENERGY STAR^® partner, EPSON recommends the use of the double-sided printing function. Refer to ENERGY STAR^® Compliance for more information on the ENERGY STAR^® program.

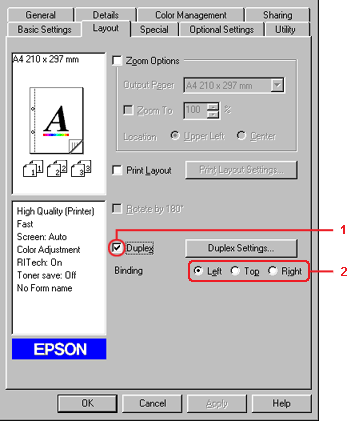

Click the Layout tab.

Select the Duplex check box. Then select the Left, Top, or Right button as Binding position.

Click Duplex Settings to open the Duplex Settings dialog box.

Specify the Binding Margin for the front and back sides of the paper. Then select whether the front or back side of the paper is to be printed as the Start Page.

When printing for binding as a booklet, click the Binding Method check box and make appropriate settings. For details about each setting, see online help.

Click OK to accept the settings and return to the Layout menu.

[Top]

Making Extended Settings

You can make detailed settings such as font setting or offset setting in the Extended Settings dialog box. To open the dialog box, click Extended Settings on the Optional Settings menu.

[Top]

Making Optional Settings

You can update the installed option information manually if you have installed options to your printer.

Click the Optional Settings tab, then select the Update the Printer Option Info Manually button.

Click Settings. The Optional Settings dialog box appears.

Make settings for each installed option, then click OK.

[Top]
