Understanding EPSON TWAIN HS Features

Configuration Button

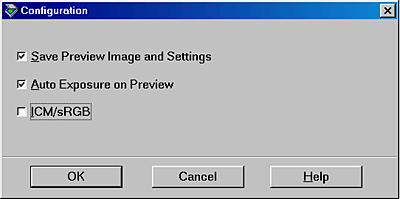

You can adjust the Preview window by changing the configuration. Click the Configuration button to display the following dialog box and make changes.

Save Preview Image and Settings:

Select this check box to automatically save the preview image and its image settings when you exit EPSON TWAIN HS (and quit scanning). The image and its settings are available the next time you restart EPSON TWAIN HS.

Auto Exposure on Preview:

Select this check box to display previewed image with automatically optimized exposure settings. This produces the same result as if clicking the Auto Exposure button.

Note:

If ICM or ICM/sRGB is selected in the Configuration dialog box, this check box is grayed out.

ICM, ICM/sRGB (for Windows 95, 98, 2000, and Millennium Edition users):

Depending on your Windows version, this setting may not be available. Select ICM (for Windows 95) or ICM/sRGB (for Windows 98, 2000, and Millennium Edition) to reproduce the colors in your image using the Windows ICM color management system.

Note:

If your printer and monitor do not support ICM, be sure this check box is cleared.

If the Image Type setting is not 24-bit Color or 24-bit Color De-screening, this check box is available, but the function does not work.

See Using ICM, ICM/sRGB (For Windows 95, 98, 2000, and Millennium Edition Users) for more details.
