Understanding EPSON TWAIN HS Features
Making and modifying marquees
A marquee is a frame around an entire image, or just a part of a certain image. Marquees are often used in scanning and image-editing software to select only the most important part of an image.
There are buttons available on the Preview window to help you manage the marquees.
Move the pointer over the image in the Preview window, and the pointer becomes a cross-hairs. Drag (move the mouse while holding down the mouse button) the cross-hairs over any area of the image, and a dotted frame appears. The point where you first clicked is anchored, but the rest of the frame is sizable and movable. After you finish creating a marquee, you can resize and move it as described below.
You can make multiple marquees in one image to scan the most important parts while ignoring the rest. It is also useful to set several items on the document table and scan all of them in just one scan. Marquees can be different sizes, and they can overlap. Extra marquees can be made anywhere except on the frame of another marquee. You can make settings on each marquee.
You can begin a marquee anywhere the pointer appears as cross-hairs. To distinguish the active marquee from other marquees, look at the marquee frames. The active marquee has moving dotted line of the frame as shown below. To make an inactive marquee active, just point the cursor at the edge of the marquee and click. The marquee becomes active.
When the pointer is placed on the edge of the marquee, it changes to a double-headed arrow. You can resize the marquee by dragging the arrow. The double-headed arrows appear only on the active marquee.
If you drag an arrow while pressing the Shift key, the marquee is resized proportionally.
When the pointer is placed within the active marquee, it changes to a hand icon. You can drag the marquee anywhere in the Preview window to move it.
If you drag a hand icon while pressing the Shift key, the marquee is limited to vertical or horizontal movement.
 | Note: |
 | If you want to create a marquee inside the active marquee, first make a marquee outside the active marquee. The newly created marquee becomes the active marquee and you can move it inside the other marquee. |
Clicking the Delete Marquee button removes the active marquee.
| Note: |
| You can also delete the active marquee by pressing the Delete key on your keyboard. |
Clicking the Duplicate Marquee button creates another marquee with the same size as the active marquee. Use this button to make multiple marquees.
Clicking the Duplicate Marquee button while holding down the keys noted in the table below causes the active marquee to be duplicated in a specific direction next to the original marquee.
|
Horizontal |
Vertical |
|
Ctrl key |
Alt key |

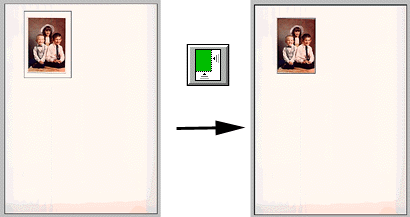

Click the Auto Locate button to cause the scanner to automatically locate and select the target image. The image appears without white borders in the Preview window.
 |
|
|
entire preview area |
located image |

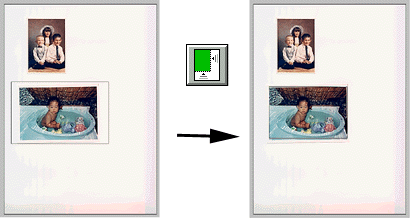

If a document contains more than one image, select a target image by dragging the pointer over the image and clicking the Auto Locate button. The selected image is located automatically.
 |
|
|
target image and other image |
located and |
| Note: |
| Create a marquee only on the target image. If the marquee covers other images, the Auto Locate feature does not work as expected. |
This shows the number of marquees in the Preview window. To create more marquees, see Duplicate Marquee button.
