Calibrating Your System

Calibrating Your Screen

For Windows 98, 2000, and Millennium Edition users
For Windows 95 and NT 4.0 users

You need to calibrate your screen when you first install the scanner software, and anytime you switch to a different monitor.

For Windows 98, 2000, and Millennium Edition users

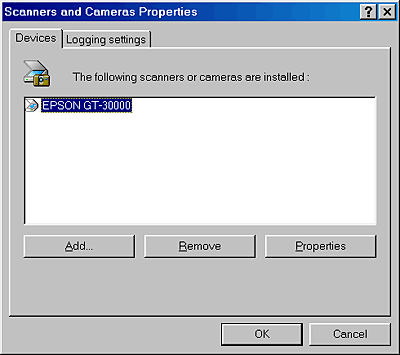

Double-click the Scanners and Cameras icon in Control Panel. The Scanners and Cameras Properties dialog box similar to the one shown below appears.

Select a scanner you want to use, and then click Properties.

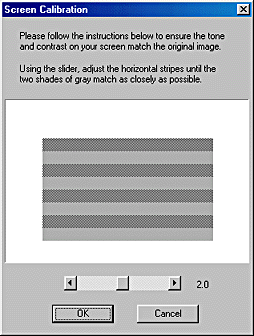

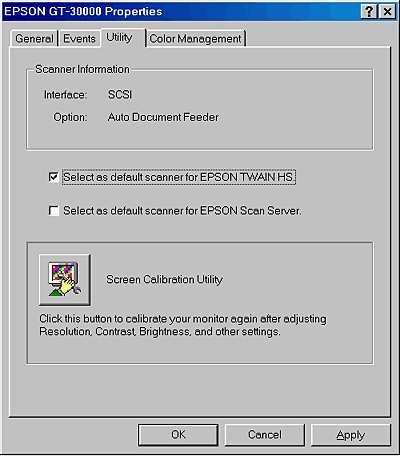

Click the Utility tab, then click the Screen Calibration Utility icon. The Screen Calibration dialog box appears.

Look at the screen and move the slider to the right or left until the two shades of the gray horizontal stripes match.

Note:

View the screen from a short distance. While the gray stripes do not blend perfectly well, try to adjust until the different tones match as closely as possible.

Click OK to finish calibrating your scanner and monitor.

[Top]

For Windows 95 and NT 4.0 users

Double-click the EPSON TWAIN HS icon in Control Panel.

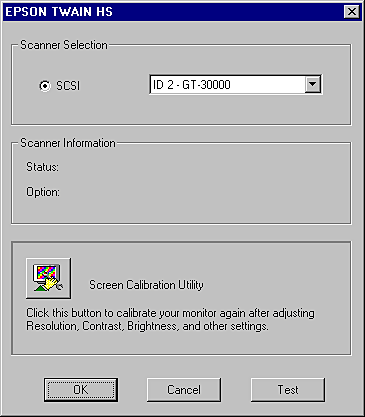

The EPSON TWAIN HS setup dialog box appears.

Click the Screen Calibration Utility icon in the dialog box.

The following screen appears:

Look at the screen and move the slider to the right or left until the two shades of the gray horizontal stripes match.

Note:

View the screen from a short distance. While the gray stripes do not blend perfectly well, try to adjust until the different tones match as closely as possible.

Click OK to finish calibrating your scanner and monitor.
