How to / Printing

Face-up Printing

To print facing up
Using the Face-up Tray

The Face-up Tray holds up to 200 sheets with the printed side up. Use this option to view the printouts during printing.

To print facing up

To use the Face-up Tray, set Face-up Enable to On in SelecType Setup Menu after installing the Face-up Tray on the printer.

Note:
  • To eject printouts on the Face-up Tray in decreasing order from the bottom, select the function in your software that enables you to print from the last page, if available. To output to the Face-up Tray, set Out bin to Face-up in the SelecType Setup menu or printer driver's setting. The printer driver's setting has priority over SelecType settings.


[Top]

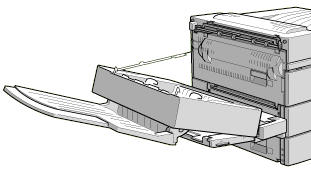

Using the Face-up Tray

When you use the Face-up Tray with the Duplex Unit installed, you can open the DM cover without detaching the Face-up Tray. The tray remains angled to hold printed sheets.

When you use the Face-up Tray without the Duplex Unit installed, temporarily remove the Face-up Tray before replacing the Imaging Cartridge or clearing a paper jam.

To temporarily remove the Face-up Tray, lift and tilt it upward.


[Top]
