Product Information

Copy Station Parts

Control panel
LCD touch screen

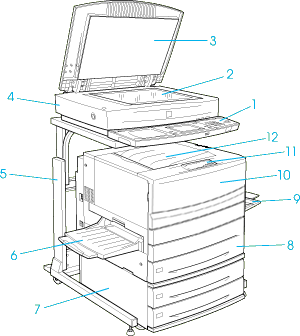

The copy station consists of the following components.

	Name
1	Copy station control panel
2	Document table
3	Document cover
4	Scanner (EPSON GT-10000+)
5	Cabinet
6	Face-up tray
7	Large capacity paper unit*
8	Standard lower paper cassette unit
9	MP tray
10	Printer (EPSON AcuLaser C8600)
11	Printer control panel
12	Face-down tray

* The 500-Sheet Paper Cassette Unit may be installed instead.

Control panel

The control panel consists of buttons, indicator lights, and an LCD touch screen. For explanations of control panel functions, match the letters in the following figure with those in the table below.

	Name	Function
1	Face Down/Face Up button	Switches between the face-down and face-up trays for the output tray.
2	Memory button	Selects, saves, or deletes user-defined copy job memories.
3	Brightness adjustment dial	Adjusts the brightness of the LCD touch screen.
4	Administrator button	Displays the current copy station status and selects background settings, including key tone, object sensor, auto feed, and password. For more information, see Making Administrator Mode Settings.
5	Sensor	Detects the presence of the user and causes the printer to come out of standby mode.
6	Error light (Red)	On when an error has occurred.
7	Ready light (Green)	On when the copy station is ready for copying.
8	Power light (Green)	Lights when the printer power is turned on.
9	Stop button	Stops copying.
10	Start button	Starts copying.
11	Numeric key pad	Used to enter the number of copies, the zoom ratio, and other numeric values.
12	Reset button	Returns copy job settings to the default values specified in the Administrator mode. If default values have not been set, the settings return to the factory defaults.
13	LCD touch screen	Displays settings, messages, and buttons. Use the buttons to make settings and carry out various copying tasks.
14	Color/Black button	Switches between color and monochrome copying.
