Network Software / EpsonNet Direct Print

Configuring the Printer Port

Windows Me/98/95/NT 4.0
Windows XP/2000

Follow the steps in the appropriate section below to configure the printer port. The printing speed will differ depending on the selections that you make.

Windows Me/98/95/NT 4.0

Click Start, point to Settings, and then select Printers.

Right-click the target printer and click Properties.

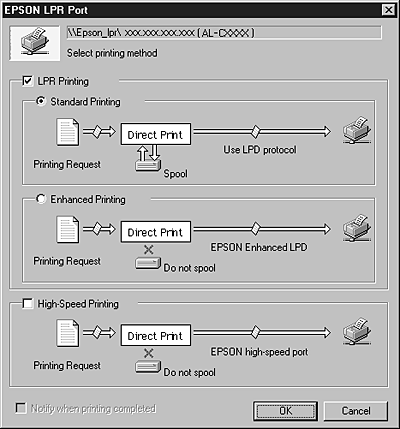

Windows Me/98/95: Click the Details tab and then Port Settings. The EPSON LPR Port dialog box appears.

Note:
If the message "There is nothing to configure for this port" appears when you click Port Settings, click OK.

Windows NT 4.0: Click the Ports tab and then Configure Port. The EPSON LPR Port dialog box appears.

Make the appropriate settings for the desired port.

LPR standard printing:
Select the LPR Printing check box and then the Standard Printing radio button. Print data is spooled by the computer before sending the print job to the target network printer.

LPR enhanced printing:
Select the LPR Printing check box and then the Enhanced Printing radio button. LPR enhanced printing sends the print job to the target network printer without spooling all of the print data. LPR enhanced printing is faster than LPR standard printing.

High-speed printing:
Select the High-Speed Printing radio button. High-speed printing sends the print job to the target network printer without spooling all of the print data. High-speed printing is faster than the other two printing methods. If the printer does not support this function, this check box is unavailable.

Select the Notify when printing completed check box if you want to receive an on-screen notification when printing is complete.

Click OK.


[Top]

Windows XP/2000

Windows XP: Click Start and then click My Network Places. Under Network Tasks, click View workgroup computers. Under Other Places, click Microsoft Windows Network, and then click Entire Network. Then double-click the EpsonPeripheralNetwork icon.

Windows 2000: Double-click the My Network Places icon. Double-click the Entire Network icon, click entire contents, and then double-click the EpsonPeripheralNetwork icon.

Double-click the Epson_lpr icon.

Right-click the icon for the target printer and click Properties. The EPSON LPR Port dialog box appears.

Make the appropriate settings for the desired port.

LPR standard printing:
Select the LPR Printing check box and then the Standard Printing radio button. Print data is spooled by the computer before sending the print job to the target network printer.

LPR enhanced printing:
Select the LPR Printing check box and then the Enhanced Printing radio button. LPR enhanced printing sends the print job to the target network printer without spooling all of the print data. LPR enhanced printing is faster than LPR standard printing.

High-speed printing:
Select the High-Speed Printing radio button. High-speed printing sends the print job to the target network printer without spooling all of the print data. High-speed printing is faster than the other two printing methods. If the printer does not support this function, this check box is unavailable.

Select the Notify when printing completed check box if you want to receive an on-screen notification when printing is complete.

Click OK.


[Top]


Previous

Next
Version NPD0133-03, Copyright © 2003, SEIKO EPSON CORPORATION
