How to / Functions of the Printer Driver

Modifying the Printout Style

Using features in the Layout tab
Using features in the Overlay tab

The Layout tab and the Overlay tab allow you to make various print settings that affect the way your document is printed and the look of your printout.

This section describes the features provided on those tabs. For more details on the Layout and Overlay tabs, see online help.

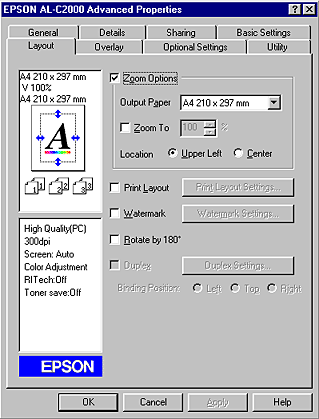

Using features in the Layout tab

Zoom Options

This feature allows you to enlarge or reduce documents.

Print Layout

Select the Print Layout check box to activate the currently-selected print layout settings and to enable the Print Layout Settings button, which opens the Print Layout Settings dialog box.

Settings in this dialog box gives you the option to print two or more pages onto a single page and to specify the printing order. You can also choose to print documents surrounded by a frame.

Watermark

Select the Watermark check box to activate the currently selected watermark and to enable the Watermark Settings button, which opens the Watermark dialog box.

In the Watermark dialog box, you can select from a list of predefined watermarks, or you can select a bitmap (.BMP) file as your own custom watermark. The Watermark dialog box also allows you to make a variety of detailed watermark settings. For example, you can select the size, color, and position of your watermark.

Rotate by 180°

Select this check box to print pages rotated by 180 degrees.

Duplex

Select this check box to print on both sides of the paper using the optional Duplex Unit. Once this check box is selected, you can make other more detailed duplex printing settings.


[Top]

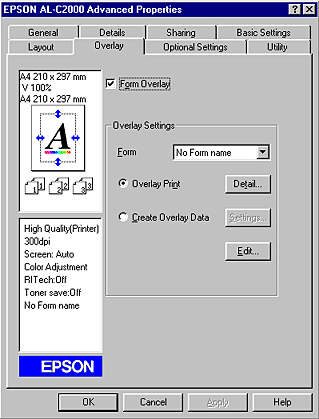

Using features in the Overlay tab

The form overlay feature is accessed through the Overlay tab. This feature allows you print form data overlaid with data made by another application. You can create form data and save it.
