Various Printing Options

Pages Per Sheet Printing

Paper loading
Driver settings for Windows
Driver settings for Mac OS 8.6 or 9.x
Driver settings for Mac OS X

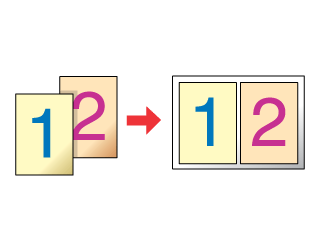

Pages Per Sheet Printing allows you to print two or four pages on single sheets of paper.

Note:

This feature is not available when selecting the Borderless check box under Paper Options on the Main menu (Windows) or in the Print dialog box (Macintosh).

Paper loading

Load paper in your printer.

Loading Single Sheets

[Top]

Driver settings for Windows

Access the printer driver.

Accessing the Printer Software for Windows

Select the desired Type setting under Paper Options on the Main menu.

Media Type Settings

Select Sheet under Paper Options on the Main menu.

Select the desired Size setting for the original print data under Paper Options on the Main menu.

Select Pages Per Sheet as the Multi-Page setting on the Page Layout menu.

Make the following settings for Pages Per Sheet Printing.

2, 4	Prints two or four pages of your document on a single piece of paper.
Print Page Borders	Prints frames around the pages printed on each sheet.
Page Order	Allows you to specify the order in which the pages will be printed on the sheet of paper. Some settings may be unavailable, depending on the Orientation setting on the Main menu.

Click OK to close the driver setting dialog.

After finishing all of the above steps, start printing.

[Top]

Driver settings for Mac OS 8.6 or 9.x

Access the printer driver.

Accessing the Printer Software for Macintosh

Select the desired Paper Size setting for the original print data in the Page Setup dialog box.

Select Auto Sheet Feeder as the Paper Source setting.

Click OK to save the setting and close the dialog box.

Select the desired Media Type setting in the Print dialog box.

Media Type Settings

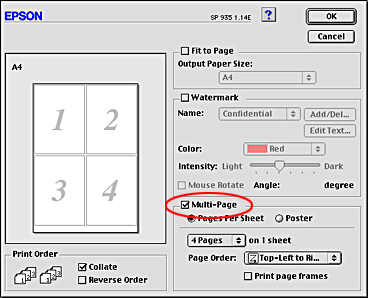

Select the Multi-Page check box in the Layout dialog box, and then select Pages per Sheet.

Make the following settings for Pages per Sheet printing.

2 Pages, 4 Pages	Prints two or four pages of your document on a single piece of paper.
Page Order	Allows you to specify the order in which the pages will be printed on the sheet of paper. Some settings may be unavailable, depending on the Orientation setting in the Page Setup dialog box.
Print page frames	Prints frames around the pages printed on each sheet.

Click OK to save the setting and close the dialog box.

Click Print to start printig.

[Top]

Driver settings for Mac OS X

Access the printer driver.

Accessing the Printer Software for Macintosh

Select the desired Paper Size setting for the original print data in the Page Setup dialog box.

Select Print Settings from the pop-up menu in the Print dialog box, and then select the desired Media Type setting.

Media Type Settings

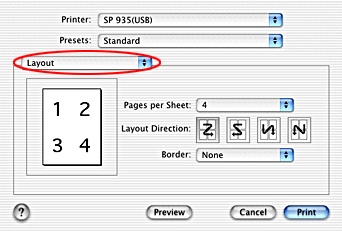

Choose Layout from the pop-up menu in the Print dialog box.

Make the following settings for Layout.

Pages per Sheet	Prints multiple pages of your document on a single piece of paper. You can choose from 1, 2, 4, 6, 9, or 16.
Layout Direction	Allows you to specify the order in which the pages will be printed on the sheet of paper.
Border	Prints a border around the pages printed on each sheet. You can choose from None, Single hairline, Single thin line, Double hairline, or Double thin line.

After finishing all of the above steps, start printing.

Note:

The Layout settings available are a standard feature of Mac OS X.
