Printer Software Functions / For Users of Mac OS X

Making Settings in the Print Dialog Box

Making the Basic Settings
Previewing your printout
Making Pages per sheet settings
Making the Color Management setting
Showing the current settings
Saving and using your settings

You can make Media Type, Mode, Ink, Copies, and Pages settings in the Print dialog box. From this dialog box, you can preview the document before printing. Refer to the appropriate section below.

Making the Basic Settings

Media Type setting

The Media Type setting determines what other settings are available, so you should always make this setting first.

With the Print Settings option selected, select the Media Type setting that matches the paper that is loaded in the printer. To find out what media type you are using, find your media in the Media Type Settings list.

Media Type Settings

Note:
For the latest information on available media, visit our regional customer service web site. See Contacting Customer Support for details.

Ink setting

The Ink setting allows you to print in color or black and white. Click Color to print in color, or Black to print in black and white or grayscale.

Mode setting

The Mode settings with Print Settings selected support several options as shown below.

Automatic

This mode provides the quickest and easiest way to start printing. See Using the Automatic mode for details.

Custom

This mode lets you choose from a list of ready-made or personalized settings suited to the kind of document that you want to print. See Using the Custom mode for details.

Advanced Settings

This mode lets you make more detailed printing settings. See Using the Advanced Settings mode for details.

In addition to making comprehensive Mode settings that affect overall print quality, you can also modify individual aspects of your printout using the settings contained in the Page Setup dialog box. See Making Settings in the Page Setup Dialog Box.

Refer to the appropriate section below.

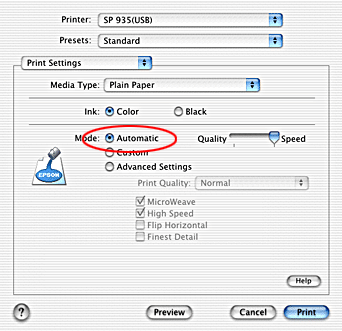

Using the Automatic mode

When Automatic is selected with Print Settings, the printer software takes care of all detailed settings based on the current Media Type and Color settings.

Note:
Depending on the media selected in the Media Type list (while Automatic is selected), a slider appears to the right of the Mode settings, which lets you choose Quality or Speed. Select Quality when print quality is more important than speed.

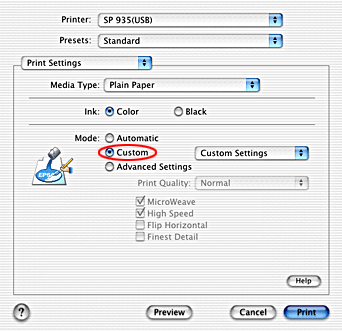

Using the Custom mode

Selecting Custom enables the Custom Settings list, from which you can choose a ready-made setting designed for printing text and graphs. Or, you can select ColorSync, a color-matching method. You can also create and save your own custom settings. For details on making your own custom settings see Using the Advanced Settings mode.

You can choose from the following by default.

Color-matching method

Description

Economy

Best for printing drafts of text.

ColorSync

Automatically adjusts printout colors to match the colors on your screen.

When you select a custom setting, other settings, such as Print Quality and Color Management, are made automatically. Changes to these settings are reflected in the display at the left side of the Print dialog box.

Follow the steps below to select a custom setting.

Select Print Settings from the pop-up menu in the Print dialog box.

Confirm that the Media Type and Ink settings in the Print dialog box are correct.

Select Custom. This makes the Custom Settings list available to the right of the Custom radio button.

From the Custom Settings list, select the most appropriate setting for the type of document or image that you want to print.

Using the Advanced Settings mode

Selecting Advanced Settings gives you complete control over your printing environment. Use these settings to experiment with new printing ideas or to fine-tune a range of print settings to meet your individual needs.

Follow the instructions below to make Advanced settings.

Select the Print Settings from the pop-up menu in the Print dialog box.

Select Advanced Settings.

Choose Color or Black as the Ink setting.

Specify a Print Quality setting.

Make other settings as necessary. For details, see online help.

Note:
Some settings may not be available, depending on the Media Type, Ink, and Print Quality settings that you make.

Making the Copies setting

Select Copies & Pages from the pop-up menu, and enter the number of copies that you want to print in the Copies text box.

Making Print Order settings

Select Copies & Pages from the pop-up menu, and then select Collated to print one complete document set at a time when printing multiple copies.

Making the Pages setting

Select Copies & Pages from the pop-up menu, and then select either All or From and to. If you select From and to, enter the first page of the appropriate range of pages in the From text box and the last page in the to text box.


[Top]

Previewing your printout

The Preview feature allows you to see how your document will look before actually printing it. Follow these steps to preview your document.

Make your printer driver settings.

Click Preview in the Print dialog box. The Preview dialog box appears and displays a preview of your document.

Note:
Preview is a standard feature of Mac OS X.


[Top]

Making Pages per sheet settings

From the pop-up menu, select Layout as the Multi-Page setting to print multiple pages of your document on one sheet of paper.

For the details, see Pages Per Sheet Printing.

Note:
The Layout settings are a standard feature of Mac OS X.


[Top]

Making the Color Management setting

Selecting Color Management from the pop-up menu gives you control over the color matching and adjustment methods provided with the printer driver. Follow the instructions below.

Select Color Management from the pop-up menu. The following dialog box appears.

Make the settings as necessary. For details, see online help.


[Top]

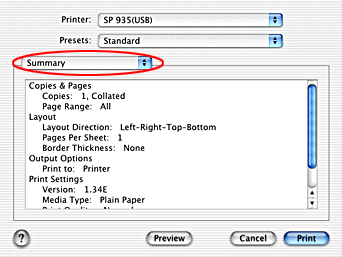

Showing the current settings

With Summary selected, you can confirm the current settings in the Print dialog box.

Select Summary from the pop-up menu. The following dialog box appears.

The current settings of Copies & Pages, Layout, Output Options, and Print Settings are displayed in the list.

Note:
The Summary option is a standard feature of Mac OS X.


[Top]

Saving and using your settings

Saving your settings

To save your settings, select Save Custom Setting from the pop-up menu.

Your settings will be saved as Custom in the Saved Settings list. You can save only one set of custom settings.

Note:
The Custom Setting option is a standard feature of Mac OS X.

Using your saved settings

To use your saved settings, select Custom in the Presets list in the Print dialog box.

If you change the Media Type or Ink settings while your customized setting is selected in the Saved Settings list, your saved setting is not affected by the change. To return to your saved setting, simply reselect it in the list.


[Top]
