Problem Solver

Correcting USB Problems

Make sure that your computer is a Windows 98 or Windows 2000 pre-installed model
Make sure that EPSON USB Printer Devices appears on the Device Manager menu (for Windows 98 only)
Printer does not work correctly with the USB cable

If you are having difficulty using your printer with a USB connection, read the information in this section.

Make sure that your computer is a Windows 98 or Windows 2000 pre-installed model

Your computer must be a Windows 98 pre-installed model, a Windows 2000 pre-installed model, or a Windows 98 pre-installed model that has been upgraded to Windows 2000. You may not be able to install or run the USB Printer Driver on a computer which is not equipped with a USB port or which has been upgraded from Windows 95.

For details about your computer, contact your dealer.

[Top]

Make sure that EPSON USB Printer Devices appears on the Device Manager menu (for Windows 98 only)

If you canceled the plug-and-play driver installation before the procedure was completed, either the USB printer device driver or the printer driver may be incorrectly installed.

Follow the steps below to check the installation and reinstall the drivers.

Plug in the power cord and then plug the USB cable into the printer and the computer.

Right-click the My Computer icon on your desktop, then click Properties.

Click the Device Manager tab.

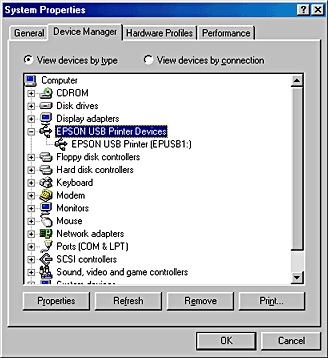

If your drivers are correctly installed, EPSON USB Printer Devices should appear on the Device Manager menu.

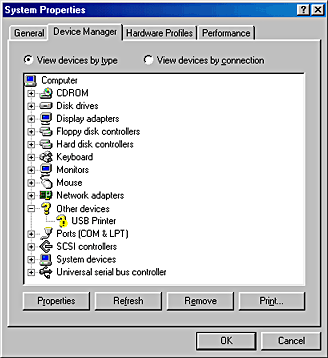

If EPSON USB Printer Devices does not appear on the Device Manager menu, click the plus (+) sign beside Other Devices to view the installed devices.

If USB Printer appears under Other Devices, the USB printer device driver is not installed correctly. If EPSON Stylus COLOR 580 appears, the printer driver is not installed correctly.

If neither USB Printer nor EPSON Stylus COLOR 580 appears under Other Devices, click Refresh or unplug the USB cable from the printer, then plug it into the printer again.

Under Other Devices, click USB Printer or EPSON Stylus COLOR 580, then click Remove and then OK.

When the following dialog box appears, click OK. Then, click OK to close the System Properties dialog box.

Turn off the PC and unplug both the printer and the PC. Then, reinstall the drivers from the beginning, following the instructions in the Setup Guide.

[Top]

Printer does not work correctly with the USB cable

If your printer does not work correctly with the USB cable, try one or more of these solutions:

Use the USB cable (C83623) recommended in System Requirements.

If you use a USB hub, connect the printer to the first tier of the hub, or connect the printer directly to the computer's USB port.

For Windows 98 users, try reinstalling the USB printer device driver and the printer software. First, uninstall EPSON Printer Software using the Add/Remove Programs utility in the Control Panel, then uninstall EPSON USB Printer Devices. Next, reinstall the software as described in Setup Guide. If EPSON USB Printer Devices is not registered in the Add/Remove Programs list, access the CD-ROM and double-click epusbun.exe in the Win 9x folder. Then follow the on-screen instructions.

[Top]
