Reference Guide
|
|
How To / Paper Handling
Using EPSON Photo Paper (4 x 6 inch, 200 x 300 mm)
Loading Photo Paper
Removing the perforated margins
Storing EPSON Photo Paper
EPSON Photo Paper (S041134, S041254) is perforated around the margins so you can trim your printed images to look like 4 x 6 inch (102 x 152 mm) or 200 x 300 mm photographs.
Loading Photo Paper
Note the following when loading EPSON Photo Paper.
-
Load the paper printable side up with the perforated margins positioned as shown in the illustration.
-
Use flat, undamaged paper. If the paper is curled, flatten it before loading to avoid paper feeding problems.
-
You can load up to one sheet of 4 x 6 inch Photo Paper or one sheet of 200 x 300 mm Photo Paper into the sheet feeder.
-
Do not fold the paper before printing.
-
Cut or tear the paper at the perforation only after printing.
-
Select Photo Paper as the Media Type setting and Photo Paper 4 x 6 in or Photo Paper 200 x 300 mm as the Paper Size setting in your printer driver.
[Top]
Removing the perforated margins
Note the following when removing the perforated margins.
-
To remove the perforated margins, fold the paper back and forth a few times along the perforations, then carefully tear the margins off.
-
You can also remove the margins by cutting along the perforations.
|
Note:
|
|
Keep in mind that the edges of your image might be cut off when you remove the perforated margins. See the illustrations below.
|

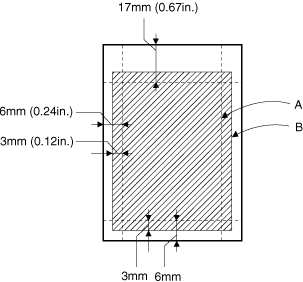

4 x 6 inch
A:
|
trimmed size
|
B:
|
printed image size
|

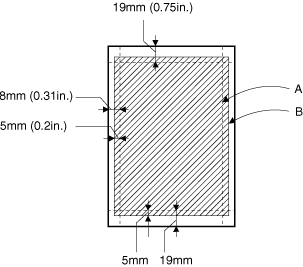

200 x 300 mm
A:
|
trimmed size
|
B:
|
printed image size
|
[Top]
Storing EPSON Photo Paper
Keep the following points in mind when storing Photo Paper.
-
Return unused paper to the original package as soon as you finish printing, and avoid storing it in places exposed to high temperature, humidity, or direct sunlight.
-
EPSON recommends storing your printouts in a resealable plastic bag and keeping them away from high temperature, humidity, and direct sunlight.
[Top]
Version 1.00E, Copyright © 2001, SEIKO EPSON CORPORATION |
