How To / Replacing Ink Cartridges

Checking the Ink Supply

Status Monitor 3

You can check the amount of ink remaining in the ink cartridges by using either the Status Monitor or the Progress Meter. Refer to the appropriate section below for details.

Status Monitor 3

Access EPSON Status Monitor 3 in one of the following ways.

Double-click the printer-shaped shortcut icon on your Windows taskbar. To add a shortcut icon to the taskbar, see Monitoring Preferences.

Open the printer driver, click the Utility tab, then click the EPSON Status Monitor 3 button.

A graphic display showing the amount of ink remaining appears.

Note:

For the color ink cartridge, the color with the least amount of ink remaining determines the level that is displayed for all the colors in the cartridge.

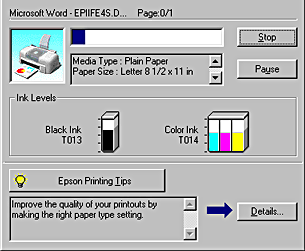

Progress Meter

The EPSON Progress Meter dialog box appears automatically when you send a print job to the printer. You can check the amount of ink remaining from this dialog box.
