How To / Checking Printer Condition and Maintaining

Cleaning the Print Head

Using the Head Cleaning utility
Using the control panel buttons

If you find that the printout is unexpectedly faint or that dots are missing, you may be able to solve these problems by cleaning the print head, which ensures that the nozzles are delivering ink properly.

You can clean the print head from your computer using the Head Cleaning utility in the printer software or from the printer itself by using the printer's control panel buttons.

Note:

Print head cleaning consumes some ink. To avoid wasting ink, clean the print head only if print quality declines; for example, if the printout is blurry or the color is incorrect or missing.

Use the Nozzle Check utility first to confirm that the print head needs to be cleaned. This saves ink.

When the ink out light is flashing or on, you cannot clean the print head. Replace the appropriate ink cartridge first.

Do not start the Head Cleaning or Nozzle Check utility while printing; otherwise, your printout may be marred.

Using the Head Cleaning utility

Refer to the appropriate section below to use the Head Cleaning utility.

For Windows

Follow the steps below to clean the print head using the Head Cleaning utility.

Make sure that the printer is turned on and the ink out light is off.

Note:

If the ink out light is flashing, you cannot clean the print head. Replace the appropriate ink cartridge first.

Access the printer software, click the Maintenance tab, and then click the Head Cleaning button.

Follow the on-screen instructions.

The power light flashes while the printer performs the cleaning cycle.

Caution:

Never turn off the printer while the power light is flashing. Doing so may damage the printer.

When the power light stops flashing, click Print Nozzle Check Pattern in the Head Cleaning dialog box to confirm that the head is clean and to reset the cleaning cycle.

Below are nozzle check patterns:

Good sample

Print head needs to be cleaned

If the nozzle check page does not print satisfactorily, you may need to repeat the head cleaning and print the nozzle check pattern again.

If print quality hasn't improved after repeating this procedure four or five times, turn the printer off and leave it alone overnight. Then, do the nozzle check again, and repeat the head cleaning if necessary.

If the print quality still has not improved, at least one of your ink cartridges may be old or damaged and may need to be replaced. To replace an ink cartridge before it is empty, see Replacing an Empty Ink Cartridge.

If print quality remains a problem after replacing the ink cartridges, contact your dealer.

Note:

To maintain print quality, we recommend printing a few pages at least once every month.

For Macintosh

Follow the steps below to clean the print head using the Head Cleaning utility.

Make sure that the printer is turned on and the ink out light is off.

For users of Mac OS 8.1 or later (except Mac OS X), access the printer software, click the Utility icon button, and then click the Head Cleaning button.
For users of Mac OS X, double-click the EPSON Printer Utility icon in the Applications folder in Macintosh HD (the default hard disk name), select your printer, click OK in the Printer List window, and then click the Head Cleaning button in the Utility dialog box.

Follow the on-screen instructions.

The power light flashes while the printer performs the cleaning cycle.

Caution:

Never turn off the printer while the power light is flashing. Doing so may damage the printer.

When the power light stops flashing, click the Confirmation button in the Head Cleaning dialog box to print a nozzle check pattern and to reset the cleaning cycle. Use the check pattern to confirm that the head is clean.

Below are nozzle check patterns.

Good sample

Print head needs to be cleaned

If print quality has not improved after repeating this procedure four or five times, turn the printer off and leave it alone overnight. Then, do the nozzle check again, and repeat the head cleaning if necessary.

If the print quality still has not improved, at least one of your ink cartridges may be old or damaged and may need to be replaced. To replace an ink cartridge, see Replacing an Empty Ink Cartridge.

If print quality remains a problem after replacing the ink cartridges, contact your dealer.

Note:

To maintain print quality, we recommend printing a few pages at least once every month.

[Top]

Using the control panel buttons

Follow the steps below to clean the print head using the control panel buttons.

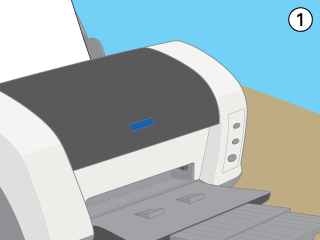

Make sure that the power light is on and the ink out light is off. Then, hold down the ink button for three seconds.

Note:

If the ink out light is flashing or on, do not clean the print head. Cleaning the print head will start the ink cartridge replacement process. If you do not intend to replace an ink cartridge, press the ink button again to return the print head to its home position.

The printer starts cleaning the print head and the power light begins flashing.

Caution:

Never turn off the printer while the power light is flashing. Doing so may damage the printer.

When the power light stops flashing, print a nozzle check pattern to confirm that the head is clean and to reset the cleaning cycle.

If print quality has not improved after repeating this procedure four or five times, turn the printer off and leave it alone overnight. Then, do the nozzle check again and repeat the head cleaning if necessary.

If the print quality still has not improved, at least one of your ink cartridges may be old or damaged and may need to be replaced.To replace an ink cartridge before it is empty, see Replacing an Empty Ink Cartridge.

If print quality remains a problem after replacing the ink cartridges, contact your dealer.

Note:

To maintain print quality, we recommend printing a few pages at least once every month.
