Printer Software Settings / For Mac OS X

Page Setup Dialog Box

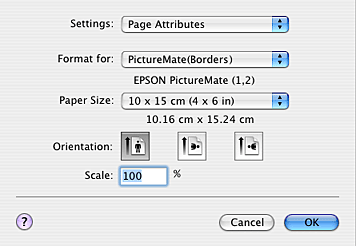

Page Setup dialog box settings

Note:

Page Setup dialog box is a standard feature of Mac OS X. See your operating system's documentation for details.

Page Setup dialog box settings

Allows you to make the appropriate Settings, Format for, Paper Size, Orientation and Scale settings that you want to use for printing.

Settings	Page Attributes	Displays the page setup settings.
	Summary	Displays the list of current setting items.
Format for	PictureMate	Prints without margins. See Borderless Printing from EPSON PhotoQuicker
	PictureMate (Borders)	Prints with standard margins.
Paper Size	Select your paper size.
Orientation	Select the printing orientation.
Scale	Input the scale to reduce or enlarge the size of your data.

Note:

If PictureMate (Borders) is not added in the Print Center, the border printing feature is not available. Add PictureMate (Borders) in the Print Center as follows;
Turn on your printer, open the Applications folder on your hard drive, then open the Utilities folder and double-click the Print Center icon. Click the Add icon (for Mac OS X 10.1.x, click Add Printer) in the Printer List dialog box and select EPSON USB from the pop-up menu. Select PictureMate from the Product list, then select Borders from the Page Setup pop-up menu. Click Add, then confirm that PictureMate (Borders) appears in the Printer List dialog box. Close the Printer List dialog box.

Always match the Format for setting in the Page Setup dialog box and the Printer setting in the Print dialog box. Otherwise the data may not be printed correctly.
