Scanning / Various Scanning Options

Making Suitable Settings

For photos
For text and line art
For color documents
For newspapers and magazines

For photos

Follow the steps below to make settings suitable for scanning photos (reflective documents) in the Professional Mode.

Place photos on the document table. If necessary, see the following section for more information.
Placing Photos and Documents on the Document Table

Start EPSON Scan and then select the Professional Mode. For details on how to select a scanning mode, see Changing the scanning mode.

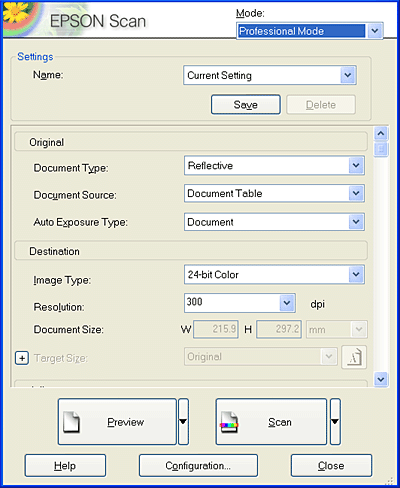

The setting window appears. Specify the settings to match your document, referring to the illustration and the table below.

Original

Document Type

Reflective

Document Source

Document Table

Auto Exposure Type


Destination

Image Type

Select a suitable image type.

Resolution

Select an appropriate resolution. See Select a suitable resolution.

Target Size

To be set in a later step.

Adjustments

To be set in a later step.

Click the Preview button to preview the images.

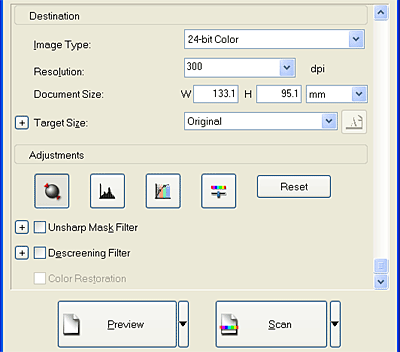

Use Target Size to specify the output size of the scanned images and then specify the Adjustments settings, if necessary. See Creating Beautiful Reproductions for details.

Click Scan to start scanning.

The scanned images are sent to the application or saved in the specified folder.

Select a suitable resolution

When you specify a high resolution, the number of pixels of the data increases and the scanned image becomes fine in texture. However, increasing the resolution causes the data size to increase. Specify a suitable resolution according to the scanning purpose.

The following table indicates the suitable resolution to use according to the scanning purpose.

Purpose

Resolution

Sending E-mail

96 to 150 dpi

OCR (Optical Character Recognition)

300 dpi

Printing

300 dpi

Filing

300 dpi

Sending Fax

200 dpi


[Top]

For text and line art

Follow the steps below to make settings suitable for scanning text and line art in Professional Mode. With this feature, outlines of text and line art are scanned and clearly defined. Clearly defined text can be reliably converted into text data using OCR software. See Scanning Documents to Convert to Text Data (OCR) for details.

Place a document on the document table.
Placing Photos and Documents on the Document Table

Start EPSON Scan and then select the Professional Mode. For details on how to select a scanning mode, see Changing the scanning mode.

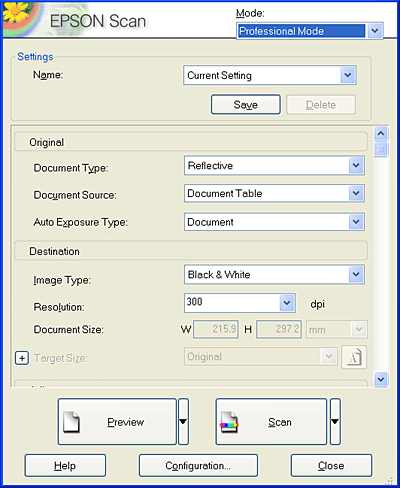

The setting window appears. Specify the settings to match your document, referring to the illustration and the table below.

Original

Document Type

Reflective

Document Source

Document Table

Auto Exposure Type

Document

Destination

Image Type

Black&White is recommended.

Resolution

300 dpi for texts,
600 dpi for line arts

Target Size

To be set in a later step.

Adjustments

To be set in a later step.

Click the Preview button to preview the images.

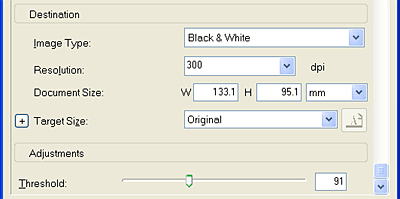

Use Target Size to specify the output size of the scanned images and then specify the Adjustments settings, if necessary. See Creating Beautiful Reproductions for details.

Click Scan to start scanning.

The scanned images are sent to the application or saved in the specified folder.


[Top]

For color documents

Follow the steps below to make settings suitable for scanning color documents in Professional Mode. With this feature, the use of colors on an original document is simplified to prevent the scanned image from being mottled. It is also suitable for modifying colors of an image with a color re-touching application.

Place a document on the document table.
Placing Photos and Documents on the Document Table

Start EPSON Scan and then select Professional Mode. For details on how to select a scanning mode, see Changing the scanning mode.

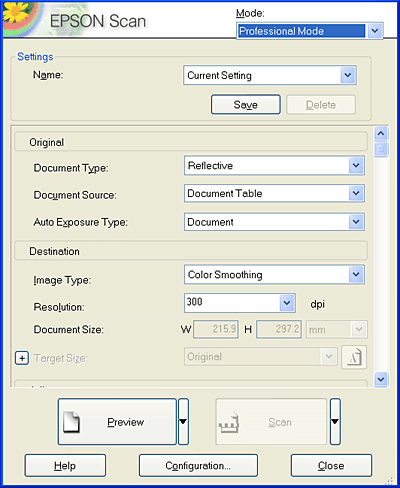

The setting window appears. Specify the settings to match your document, referring to the illustration and the table below.

Original

Document Type

Reflective

Document Source

Document Table

Auto Exposure Type

Document

Destination

Image Type

Color Smoothing

Resolution

Select an appropriate resolution. See Select a suitable resolution.

Target Size

To be set in a later step.

Adjustments

To be set in a later step.

Click the Preview button to preview the images.

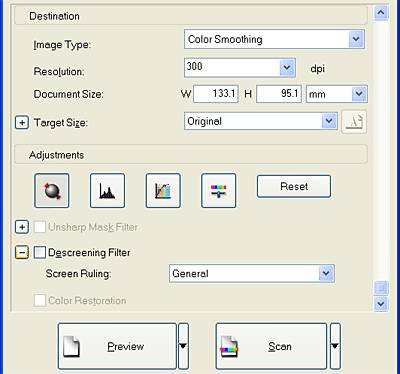

Use Target Size to specify the output size of the scanned images and then specify the Adjustments settings, if necessary. See Creating Beautiful Reproductions for details.

Click Scan to start scanning.

The scanned images are sent to the application or saved in the specified folder.


[Top]

For newspapers and magazines

Follow the steps below to make settings suitable for scanning newspapers and magazines in Professional Mode. Using this feature, you can avoid a blank area being scanned as a yellowish image or images on the back side of paper being scanned through.

Place a document on the document table.
Placing Photos and Documents on the Document Table

Start EPSON Scan and then select Professional Mode. For details on how to select a scanning mode, see Changing the scanning mode.

The setting window appears. Specify the settings to match your document, referring to the illustration and the table below.

Original

Document Type

Reflective

Document Source

Document Table

Auto Exposure Type

Document

Destination

Image Type

Select an appropriate image type.

Resolution

Select an appropriate resolution. See Select a suitable resolution.

Target Size

To be set in a later step.

Adjustments

To be set in a later step.

Click the Preview button to preview the images.

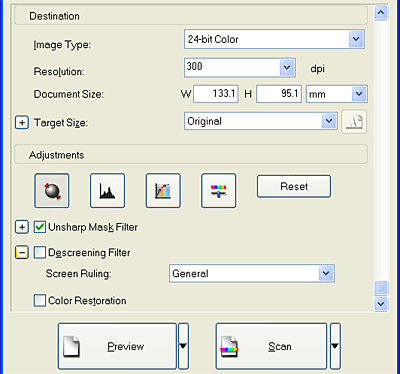

Use Target Size to specify the output size of the scanned images and then specify the Adjustments settings, if necessary. See Creating Beautiful Reproductions for details.

Click Scan to start scanning.

The scanned images are sent to the application or saved in the specified folder.


[Top]
