Printing / How to Print

Printing on Envelopes

Handling envelopes
Driver settings for Windows
Driver settings for Mac OS 9
Driver settings for Mac OS X

Before turning on this product, make sure this product is connected to your computer.

Press the On button to turn on this product. The On light on the control panel flashes then remains lit, indicating that this product has completed its initialization.

Handling envelopes

Refer to the section below for loading envelopes.

Loading Envelopes

See Printable area for the printable area.

[Top]

Driver settings for Windows

Open the file you want to print.

Access the printer driver.

Accessing the Printer Software for Windows

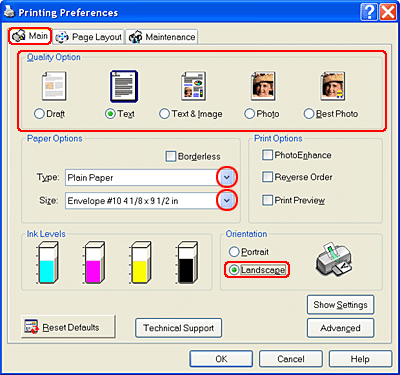

Click the Main tab, then make the Quality Option setting. For details, see online help.

Select Plain Paper as the Type setting.

Select the appropriate envelope size from the available Size settings. You can also define a custom paper size. For details, see the following section.

Making User Defined Paper Sizes

Select Landscape (wide) as the Orientation setting.

Click OK to close the printer driver settings dialog box.

Print your data.

[Top]

Driver settings for Mac OS 9

Open the file you want to print.

Access the Page Setup dialog box.

Accessing the Printer Software for Mac OS 9

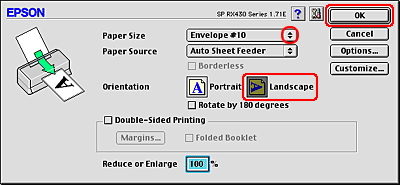

Select the appropriate envelope size from the available Paper Size settings. You can also define a custom paper size. For details, see the following section.

For Mac OS 9

Select Landscape (wide) as the Orientation setting.

Click OK to save the settings and close the Page Setup dialog box.

Access the Print dialog box.

Accessing the Printer Software for Mac OS 9

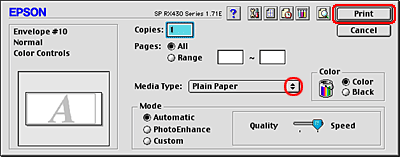

Select Plain Paper as the Media Type setting.

Click Print to start printing.

[Top]

Driver settings for Mac OS X

Open the file you want to print.

Access the Page Setup dialog box.

Accessing the Printer Software for Mac OS X

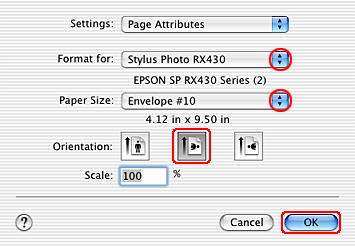

Select Stylus Photo RX430 as the Format for setting.

Select the appropriate envelope size as the Paper Size setting.

Select Landscape (wide) as the Orientation setting.

Click OK to close the Page Setup dialog box.

Access the Print dialog box.

Accessing the Printer Software for Mac OS X

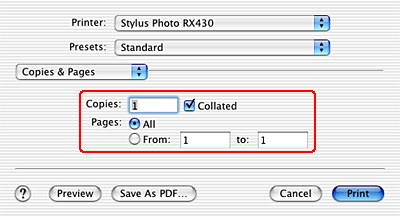

Select Stylus Photo RX430 as the Printer setting, then make the Copies & Pages settings.

Note:

The Copies & Pages settings available are a standard feature of Mac OS X. See your operating system's documentation for details.

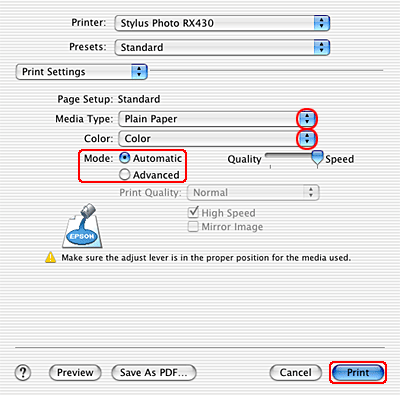

Select Print Settings from the pop-up menu.

Select Plain Paper as the Media Type setting, then make the appropriate Color and Mode settings. See online help for details of Print Settings.

Click Print to start printing.

[Top]
