Maintenance and Troubleshooting

Removing the Cover for Thick or Large Documents

For thick materials or documents that are larger than the document table, remove the document cover.

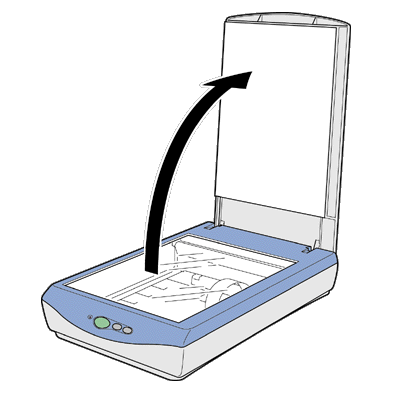

First, open the document cover.

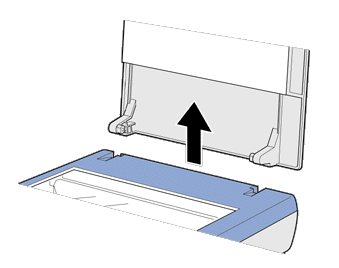

Then, pull the cover straight up.

Note:
When scanning with the cover removed, do not leave any area of the document table exposed to prevent interference from external light.

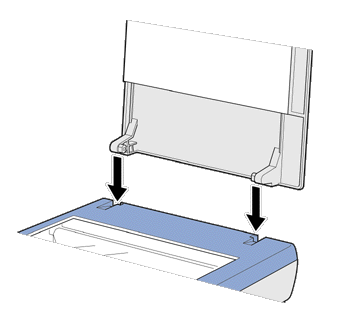

When you are finished scanning, reattach the document cover in the reverse order that you removed it.
