Calibrating Your System
Calibrating Your Screen
For Windows 98 and 2000 users
For Windows 95 and NT 4.0 users
For Macintosh users
You need to calibrate your screen when you first install the scanner software, and anytime you switch to a different monitor.
For Windows 98 and 2000 users
 |
Double-click the Scanners and Cameras icon in Control Panel. The Scanners and Cameras Properties dialog box appears. Click the Properties button.
|
 |

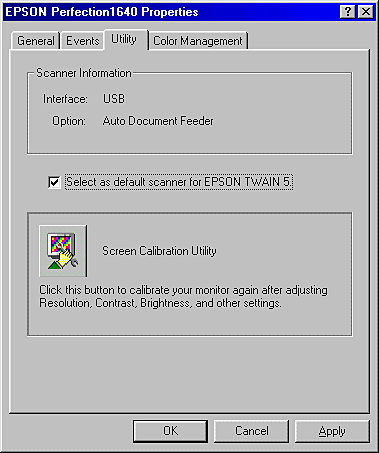

Click the Utility tab, then click the Screen Calibration Utility icon. The Screen Calibration dialog box appears.
|
 |

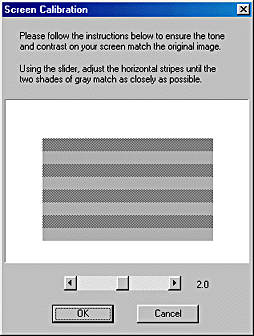

Look at the screen and move the slider to the right or left until the two shades of the gray horizontal stripes match.
|
 |  |
Note:
|
| |
View the screen from a short distance. While the gray stripes do not blend perfectly well, try to adjust until the different tones match as closely as possible.
|
 |
Click OK to finish calibrating your scanner and monitor.
|
The setting is automatically saved as the Screen profile in the Calibration list in EPSON TWAIN's Destination dialog box. The screen profile contains calibration information for the preview image as well as the scanned image.
[Top]
For Windows 95 and NT 4.0 users
|
|

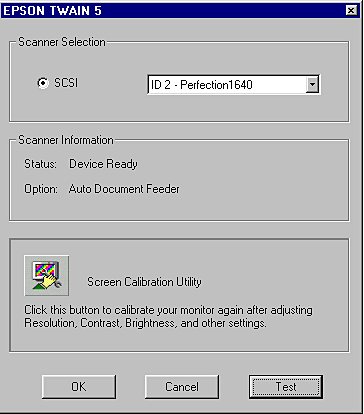

Double-click the EPSON TWAIN icon in Control Panel. The EPSON TWAIN 5 Setup dialog box appears.
|
|
|

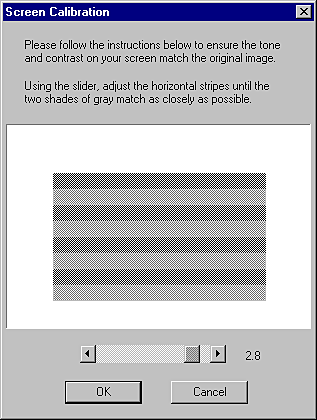

Click Screen Calibration Utility in the dialog box. The following screen appears:
|
|
|
Look at the screen and move the slider to the right or left until the two shades of the gray horizontal stripes match.
|
| |
Note:
|
| |
View the screen from a short distance. While the gray stripes do not blend perfectly well, try to adjust until the different tones match as closely as possible.
|
|
|
Click OK to finish calibrating your scanner and monitor.
|
[Top]
For Macintosh users
|
|
Click the EPSON Screen Calibration icon in the EPSON Scanner folder to view the Screen Calibration dialog box.
|
|
|
Look at the screen and move the slider to the right or left until the two shade of the gray horizontal stripes match.
|
| |
Note:
|
| |
View the screen from a short distance. While the gray stripes do not blend perfectly well, try to adjust until the different tones match as closely as possible.
|
|
|
Click OK to finish calibrating your scanner and monitor.
|
The setting is automatically saved as the Screen profile in the Calibration list in EPSON TWAIN's Destination dialog box. The screen profile contains calibration information for the preview image as well as the scanned image.
