Understanding EPSON TWAIN Pro Features / Using the Preview Window
Auto Exposure
 |
The Adjust buttons described in this section offer you a powerful means of improving image quality. All adjustments you make with these tools are shown in the previewed image. For further information on using these buttons to optimize scanning, see Recommended Adjustment Order. |
 |
|
 |
|
 |
|
 |
|
 |
|
 |
Click the
Auto Exposure button to optimize the exposure for the entire image, or that the part of the image that is surrounded by an active marquee. This feature adjusts the Gamma, Highlight, and Shadow settings automatically.
 | Note: |
 |
|
|
|
|
|
|
|
Click the
Image Controls button to open the Image Controls dialog box. This dialog box allows you to make a wide range of image adjustments, as described below.
| Note: |
|
|
|
|
|
|
|
|
|
|
The Exposure setting lightens or darkens an image. You can select from -10 (darkest) to 20 (brightest) by moving the slider.
The Exposure and Highlight settings are related. When the Exposure setting is changed, the Highlight value also changes automatically.
The Gamma setting allows you to adjust the mid-tones in an image. You can select from 0.5 (darkest) to 5.0 (brightest) by moving the slider.
The Highlight setting allows you to adjust the brightness level of the brightest parts of an image. You can select from 61 to 490 by moving the slider.
Click the eyedropper button beneath the slider, and the mouse pointer changes to an eyedropper. Move the eyedropper over the previewed image, and click a bright area. The eyedropper "picks up" the color from that area, and uses it as the highlight for the entire image. This effect appears immediately in the preview image. Click Cancel to restore the original image.
The Shadow setting allows you to adjust the darkness level of the darkest parts of an image. You can select from 0 to 60 by moving the slider.
Click the eyedropper button beneath the slider, and the mouse pointer changes to an eyedropper. Move the eyedropper over the preview image, and click a dark area. The eyedropper "picks up" the color from that area, and uses it as the shadow for the entire image. This effect appears immediately in the preview image. Click Cancel to restore the original image.
Available only when Pixel Depth is set to Black & White and Halftone is set to None in the Image Type dialog box. The scanner scans gray shades as either black or white using this setting, and is useful for optical character reading (OCR).
You can select from 0 (lightest) to 255 (darkest) by moving the slider.
Clicking the
Tone Correction button opens the Tone Correction dialog box. The settings described in this section allow you to adjust the tonal relationship between the original image and its reproduction on a monitor or printer.
| Note: |
|
|
|
|
|
|
|
|
To save your Tone Correction settings, type a new name in the Tone Curve Name box and click Save. To delete a setting from the Tone Curve Name list, select the setting and click Delete.
To apply your Tone Correction settings, click OK. To restore the original settings, click Cancel.
The editor allows you to customize tone correction. Drag points on the tone curve to adjust the tone value. You can edit up to five tonal elements.
If you select the check box for a specific point, such as 1/4 Tone or Midtone, you can move that point and it will remain where you leave it; it will not be affected by the movement of other points on the curve. If the check box is cleared, the point will be affected by the movement of other points.
You can select the combined red, green, and blue (RGB) channel to modify all colors, or select each of these colors separately.
| Note: |
| If Pixel Depth is set to Black & White or 8-bit Gray in the Image Type dialog box, you can only select the combined RGB channel option. |
Select a tone correction setting from this list. The custom settings you have saved appear in this list.
Click the

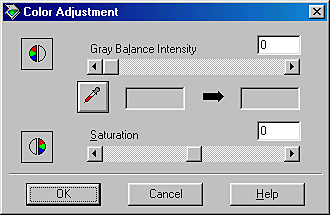

Color Adjustment button in the Preview window to open the Color Adjustment dialog box, where you can make Gray Balance Intensity and Saturation settings.
| Note: |
|
|
|
|
|
|
The Gray Balance Intensity setting removes unwanted color casts and tints by balancing color saturation.
Click the eyedropper button beneath the slider. The mouse pointer changes to an eyedropper. Then click the color you want to represent as gray. The eyedropper "picks up" the color and displays it in the box beside the eyedropper button. You can then correct the cast level for that color from 0 to 100 by moving the slider. The corrected color appears in the box on the right, and the effect shows up immediately in the preview image. Click Cancel to restore the original image.
| Note: |
| You can use the Auto Exposure feature to automatically adjust Gray Balance Intensity when Document is selected as the Auto Exposure Option in the Image Type dialog box. To change the Auto Exposure Option setting, see Auto Exposure Option. |
Saturation is the property that defines color depth. Select a saturation level from -100 (less color) to 100 (more color) by moving the slider.
Use the Reset button to return any image control settings you made to their default settings. If you did not alter any image control settings, this button is not available.
Click the
Focus button to set the focus position to either 2.5 or 0.0. The current setting is indicated under the button.
If TPU for Neg. Film or TPU for Pos. Film is selected as the Document Source, the value of the focus position is automatically set to 2.5. If you are using film holders, you do not need to change the focus setting. If you set the film directly on the scanner's document table, EPSON recommends changing the focus position to 0.0.
If Flatbed, or Auto Document Feeder is selected, the value is automatically set to 0.0. EPSON does not recommend changing the setting unless you intend to have the scanned images out of focus or you are scanning an object that is not flat.
