Understanding EPSON TWAIN Pro Features

Settings

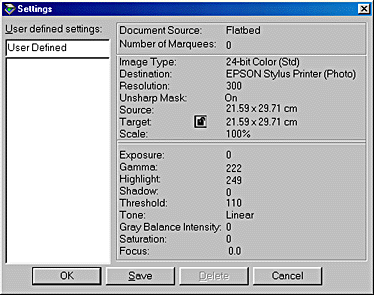

Click the Settings button on the main window to view the following dialog box. You can view all the settings for the current preview image in this dialog box. Also, you can save all of the currently selected settings as a group of custom settings with a name you specify. Later, you can apply any custom settings you have saved. Note that only user defined settings related to the Document Source currently selected will appear in the User defined settings field.

Depending on your scanner model, the preset settings for using film holders with positive films may appear in the User defined settings field when the optional Transparency Unit is installed.

To save the currently selected settings, type a new name in the User defined settings field, then click Save.

To apply saved settings, select a setting name from the list, then click OK. The preview image will reflect the settings you saved.

To restore the previous settings, click Cancel.

To delete a setting, select the setting name in the list, then click Delete.
