Understanding EPSON TWAIN Pro Features

Marquees

Making and modifying marquees
Marquee buttons
Delete marquee button
Duplicate marquee button
Auto locate button
Marquee number indicator

A marquee is a frame around an image, or a part of an image. Marquees are often used in scanning and image-editing software to select only the most important part of an image.

Making and modifying marquees

Move the pointer over the image in the Preview window. The pointer becomes a set of cross-hairs. Drag (move the mouse while holding down the mouse button) the cross-hairs over any area of the image, and a dotted frame appears. The point where you first clicked is anchored, but the rest of the frame is sizable and movable. After you finish creating a marquee, you can resize and move it as described below.

Multiple marquees

You can make multiple marquees in one image to scan the most important parts while ignoring the rest. It is also useful to set several items on the document table and scan all of them in one time. Marquees can be different sizes, and they can overlap. Extra marquees can be made anywhere except on the frame of another marquee. You can make settings on each marquee.

You can begin a marquee anywhere the pointer appears as cross-hairs. To distinguish the active marquee from other marquees, look at the marquee frames. The active marquee has moving dotted line of the frame as shown below. If you created multiple marquees and want to make a inactive marquee active, just point the cursor at the edge of the marquee and click. The marquee becomes active.

Resizing marquees

When you move the pointer over the edge of the active marquee, the pointer will change to a double-headed arrow as shown below. You can then resize the marquee to the direction of the arrow is pointing, up, down, sideways, or diagonally, by dragging the arrow. The double-headed arrows only appear on the active marquee.

If you drag an arrow while pressing the Shift key, the marquee will be resized proportionally.

Moving marquees

To move an active marquee, move the pointer in the frame of the marquee, and when the pointer changes into a hand, drag the marquee to move it.

If you drag a hand while pressing the Shift key, the marquee will be limited to vertical or horizontal movement.

Note:
If you want to create a marquee inside the active marquee, first make a marquee outside the active marquee. The newly created marquee becomes the active marquee and you can move it into the other marquee.


[Top]

Marquee buttons

There are buttons available on the preview window to help you manage the marquees.


[Top]

Delete marquee button

Clicking the delete marquee button removes the active marquee.

Note:
You can also delete the active marquee by pressing the Delete key on your keyboard.


[Top]

Duplicate marquee button

Clicking the duplicate marquee button creates another marquee the same size as the active marquee. Use this button to make multiple marquees.

Clicking the duplicate marquee button while holding down the keys noted in the table below causes the duplicate marquee(s) to appear in a specific direction next to the original marquee.

Horizontal

Vertical

Windows

Ctrl key

Alt key

Macintosh

Command key

option key


[Top]

Auto locate button

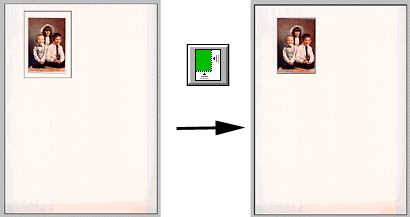

Click the Auto Locate button to cause the scanner to automatically locate and select the target image. The image appears without white borders in the Preview window.

entire preview area located image

Note:
The Auto Locate feature is automatically activated when scanning without previewing.

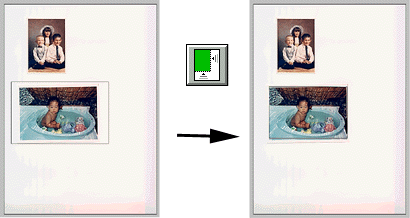

If a document contains more than one image, select a target image by placing the mouse pointer over the image and clicking the Auto Locate button. The selected target image is located automatically.

target image and other image located and
non-located images


[Top]

Marquee number indicator

This shows the number of marquees in the Preview window. To create more marquees, see Duplicate marquee button.


[Top]
