Settings by System / Settings for NetWare

Configuring for NetWare Using EpsonNet WebAssist

You can configure the Internal Print Server for NetWare using EpsonNet WebAssist.

Note:

You cannot create a print server, print queue, or printer with EpsonNet WebAssist. You must have created these objects before using EpsonNet WebAssist.

A Web browser must be installed in your computer.

TCP/IP must be correctly set for the computer and Internal Print Server.

Do not operate EpsonNet WinAssist/MacAssist and EpsonNet WebAssist for the printer at the same time.

There are some restrictions on the characters you can use depending on your browser. For details, see your browser or OS manual.

Turn on the printer.

Run EpsonNet WebAssist by either of the following methods:

Run EpsonNet WinAssist or EpsonNet MacAssist. Click the printer you want to configure from the list and click Launch Browser.

Open your browser, and type in the IP address of the Internal Print Server directly. Do not run EpsonNet WinAssist or MacAssist.

http:// the IP address of the Internal Print Server/

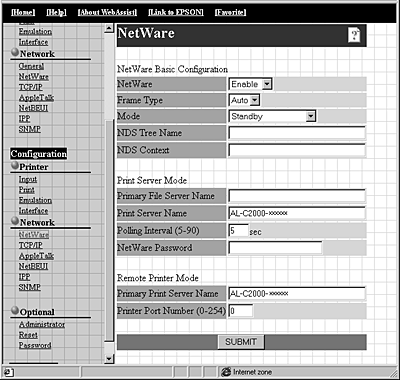

Click NetWare under Network on the Configuration menu to view the NetWare setting screen.

Choose Enable to use NetWare.

Note:

If Disable is on, all NetWare related functions stop. Select Disable to prevent excess dial-up charges.

Select Auto for the frame type.

Select the Mode.

Select NDS Print Server for NetWare 4.1x or NetWare 5.x with NDS mode.

Select Bindery Print Server for NetWare 3.1x and NetWare 4.1x with Bindery mode.

Select Remote Printer for Remote Printer under NetWare 3.1x, NetWare 4.1x, and NetWare 5.x.

Select Standby when not using NetWare, or when problems arise from setting NetWare to Enable.

When using NDS mode, type the NDS Tree name (up to 31 characters) and the NDS Context without "." at the top (up to 255 characters). Leave these settings blank if using Remote Printer mode.

When you select NDS Print Server or Bindery Print Server for the Mode, make the Print Server settings.

Primary File Server Name:
Set the file server which the print server logs in (up to 47 characters) if the mode is set to Bindery Print Server.

Print Server Name:
Set the print server name (up to 47 characters).

Polling Interval:
Set the polling time from 5 to 90 seconds. Usually you do not need to set.

NetWare Password:
Set a password up to 20 characters to be used when the Internal Print Server logs in to the NetWare print server. Usually you do not need to set.

When you select Remote Printer for Mode, make the Remote Printer settings.

Primary Print Server Name:
Set the print server name (up to 47 characters).

Printer Port Number:
Set the remote printer's port number.

Click SUBMIT and type the password to update the settings. The same password is required for EpsonNet WinAssist, MacAssist, and WebAssist. See Password for more information on setting the password.

If the message "Configuration change is complete!" appears on your screen, the update is complete. Do not exit the Web browser or send a job to the printer until this message appears. Then, follow the on-screen instructions to reset the printer.
