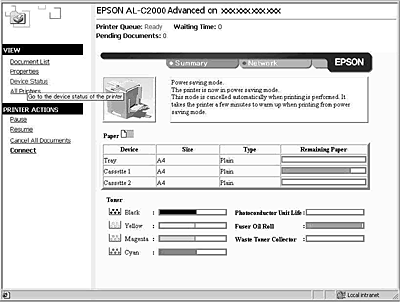

Printer Status Page

Printer Status Page

Summary menu
Network menu

To access the Printer Status Page, do one of the following;

Note:
The appearance of the screen and the items listed below differ depending on your printer.

Items

Explanation

Printer image

Displays the current printer status image.

Status message

Displays the current printer status information.

Summary

Displays the consumable (toner, ink, etc.) and paper remaining information.

Network

Displays the printer's network information.

Summary menu

The Summary menu contains consumable and paper information.

Note:
The items listed below differ depending on the printer.

Items

Explanation

Paper

  Device

Name of the paper source.

  Size

Size of the paper loaded in the paper source.

  Type

Type of paper loaded in the paper source.

  Remaining Paper

The remaining paper is indicated by a green bar. If the paper source is a cassette, the bar turns red as the paper runs out. If the paper source is a tray, the bar does not turn red.

Toner

The remaining toner is indicated by a green bar. As the toner level gets low, the toner icon blinks. For color printers, the amount of color toner remaining is also indicated.

Photoconductor Unit Life

If the photoconductor is separate from the toner cartridge, a service life bar appears. This does not appear when the photoconductor is connected to the toner cartridge.

Fuser Oil Roll

Indicates the remaining service life of the oil roll. Appears on color printers only.

Waste Toner Collector

Indicates amount of waste toner. Appears on color printers only.


[Top]

Network menu

The Network menu contains following information. Click the appropriate tab to see the settings you want.

Items

Explanation

Ethernet

Displays the print server's information such as model name, hardware and software version of the print server, and physical layer type of the interface.

NetWare

Displays the NetWare settings of the print server.

AppleTalk

Displays the AppleTalk settings of the print server.

TCP/IP

Displays the TCP/IP settings of the print server.

NetBEUI

Displays the NetBEUI settings of the print server.

SNMP

Displays the SNMP settings of the print server.


[Top]
