Administrator's Guide
|
|
EpsonNet Direct Print
Configuring the Printer Port
Windows Me/98/95/NT 4.0
Windows 2000
Follow the steps in the appropriate section below to configure the printer port. The printing speed will differ depending on the selections that you make.
Windows Me/98/95/NT 4.0
 |
Click Start, point to Settings, and then click Printers.
|
 |
Right-click the target printer and select Properties.
|
 |

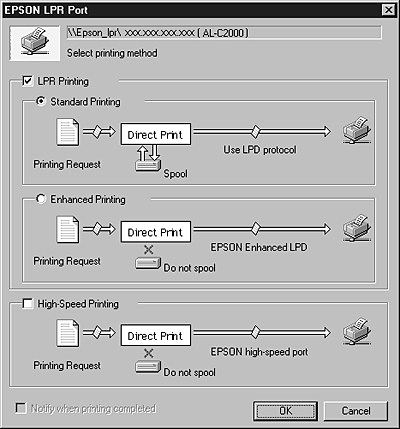

Windows Me/98/95: Select the Details tab and click the Port Settings button. The EPSON LPR Port dialog box appears.
Windows NT 4.0: Select the Ports tab and click Configure Port. The EPSON LPR Port dialog box appears.
|
 |
Make the appropriate settings for the desired port.
|
LPR standard printing:
Select the LPR Printing check box and then the Standard Printing radio button. Print data is spooled by the computer before sending the print job to the target network printer.
LPR enhanced printing:
Select the LPR Printing check box and then the Enhanced Printing radio button. LPR enhanced printing sends the print job to the target network printer without spooling all of the print data. LPR enhanced printing is faster than LPR standard printing.
High-speed printing:
Select the High-Speed Printing radio button. High-speed printing sends the print job to the target network printer without spooling all of the print data. High-speed printing is the fastest than the other two printing methods. If the printer does not support this function, this check box is unavailable.
 |
Select the Notify when printing completed check box if you want to receive an on-screen notification when printing is complete.
|
 |
Click OK.
|
[Top]
Windows 2000
Follow the steps below to configure the printer port.
|
|
Double-click the My Network Places icon.
|
|
|
Double-click the Entire Network icon, click entire contents, and then double-click the EpsonPeripheralNetwork icon.
|
|
|
Double-click the Epson_lpr icon.
|
|
|
Right-click the icon for the target printer and click Properties. The EPSON LPR Port dialog box appears.
|
|
|
Make the appropriate settings for the desired port.
|
LPR standard printing:
Select the LPR Printing check box and then the Standard Printing radio button. Print data is spooled by the computer before sending the print job to the target network printer.
LPR enhanced printing:
Select the LPR Printing check box and then the Enhanced Printing radio button. LPR enhanced printing sends the print job to the target network printer without spooling all of the print data. LPR enhanced printing is faster than LPR standard printing.
High-speed printing:
Select the High-Speed Printing radio button. High-speed printing sends the print job to the target network printer without spooling all of the print data. High-speed printing is faster than the other two printing methods. If the printer does not support this function, this check box is unavailable.
|
|
Select the Notify when printing completed check box if you want to receive an on-screen notification when printing is complete.
|
 |
Click OK.
|
