Clearing Jammed Paper

Precautions for clearing jammed paper
Preventing paper feed and paper jam problems
Paper jam — inside the printer
Paper jam — MP tray

When paper is jammed in the printer, the EPSON Status Monitor 3 utility provides alert messages.

Precautions for clearing jammed paper

Be sure to observe the following points when you clear jammed paper:

Warning:
Be careful not to touch the fuser, which is marked CAUTION Hot Surface Avoid Contact, or the surrounding areas. If the printer has been in use, the fuser and the surrounding areas may be very hot.


[Top]

Preventing paper feed and paper jam problems

If you have frequent paper feed or paper jam problems, use this checklist of corrective measures:


[Top]

Paper jam — inside the printer

If the jammed sheet is inside the printer, remove the sheet as follows:

Close the output tray, and open the printer cover gently by pressing the latch on the left side of the printer and lifting the cover up all the way.

Warning:
Opening the printer cover exposes the fuser, which is marked CAUTION Hot Surface Avoid Contact. Be careful not to touch the fuser. If the printer has been in use, the fuser may be very hot.

* CAUTION Hot Surface Avoid Contact

Remove the developer cartridge.

Caution:
When removing the developer cartridge, never touch the developing roller under the flap; otherwise, print quality may decline.

Remove the photoconductor unit.

Caution:
Never touch the photoconductor unit's light-sensitive drum; otherwise, print quality may decline.

Remove the paper from the paper path.

Note:
When paper is jammed at the fuser, grasp the bottom of the paper and pull it out. If you pull the jammed paper by grasping the top of it, it may reduce the printout quality.

Reinstall the photoconductor unit, and the developer cartridge.

Close the printer cover.

Tap the edges of the stack of paper on a flat surface and carefully reload it into the MP tray. (Do not reload curled or wrinkled sheets.)

Printing automatically restarts from the page that jammed. If the error light (red) continues flashing after removing all jammed paper, open and close the printer cover to clear the error.


[Top]

Paper jam — MP tray

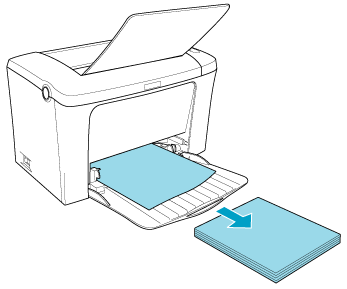

The following illustration shows what this type of jam looks like:

Follow the steps below to clear a feed jam at the MP tray:

Remove paper stacked on the MP tray.

Gently pull out any sheets that have fed part way into the printer.

Close the output tray, and open the printer cover. Be sure to remove any pieces of paper that may have torn off or are remaining in the printer.

If necessary, take out the developer cartridge and the photoconductor unit and remove any paper left in the paper feed path. Reinstall the unit and then the cartridge.

Tap the edges of the paper stack on a flat surface and carefully reload it. (Do not reload curled or wrinkled sheets.)

Close the printer cover. The jammed page's print data is automatically reprinted.
