How To / Installing and Removing Options

Face-up Tray

Installing the Face-up tray
Using the Face-up tray
Removing the Face-up tray

The printer normally outputs paper face-down on top of the printer. If you want face-up output, you can install the optional Face-up Tray (C12C813801). This tray gives you immediate viewing of your printed output and is recommended for printing on media that requires a straight-through paper path, such as labels and transparencies.

Installing the Face-up tray

Follow the instructions below to attach the Face-up Tray to the printer:

Turn off the printer.

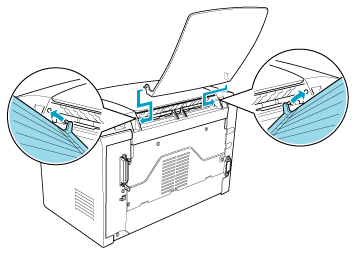

Attach the Face-up Tray by inserting the pegs into the holes on the printer one side at a time. Do not force both sides in at once.


[Top]

Using the Face-up tray

The printer is factory set for face-down output. After installing the Face-up tray, you can switch the paper path from face-down to face-up by pushing the paper path selector down. The paper path selector is located on the right side of the printer, near the back.


[Top]

Removing the Face-up tray

Turn off the printer.

Remove the Face-up tray.

Switch the paper path selector up.


[Top]
