Using the Printer Software with Windows

Setting Up the USB Connection

The USB interface that comes with your printer complies with Microsoft Plug and Play (PnP) USB specifications.

Note:

Only PC systems equipped with a USB connector and running Windows XP, Me, 98, 2000, or Server 2003 support the USB interface.

Your computer must support USB 2.0 in order to use it as an interface.

Since USB 2.0 is fully compatible with USB 1.1, USB 1.1 can be used as an interface.

USB 2.0 is applied for Windows XP, 2000, and Server 2003 operating systems. If your operating system is Windows Me or 98, use USB 1.1 interface.

Access the printer driver.

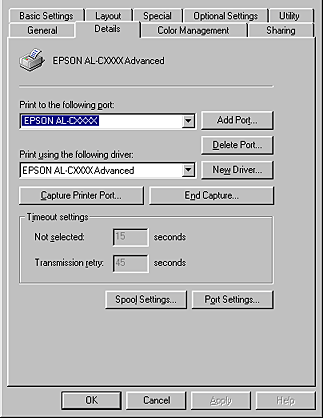

For Windows Me or 98, click the Details tab.
For Windows XP, 2000, or Server 2003, click the Ports tab.

For Windows Me or 98, select the EPUSB1: (your printer) USB port from the Print to the following port drop-down list.
For Windows XP, 2000, or Server 2003, select the USB001 USB port in the list on the Ports menu.

Note:

This screen may vary depending on your operating system version.

Click OK to save the settings.
