Reference Guide

Index Search Glossary Contents Help

Using the Printer Software with Macintosh

Using the Reserve Job Function

Re-Print Job
Verify Job
Stored Job
Confidential Job

The Reserve Job function allows you to store print jobs on the printer's Hard Disk Drive and to print them later directly from the printer's control panel. Follow the instructions in this section to use the Reserve Job function.

Note:

You need an optional Hard Disk Drive installed in your printer in order to use the Reserve Job function. Make sure that the drive is correctly recognized by the printer driver before you start using the Reserve Job function.

The table below gives an overview of the Reserve Job options. Each option is described in detail later in this section.

Jobs stored on the Hard Disk Drive are handled differently depending on the Reserve Job option. Refer to the tables below for details.

Re-Print Job

The Re-Print Job option allows you to store the job you are currently printing so that you can reprint it later directly from the control panel.

Follow the steps below to use the Re-Print Job option.

For Mac OS X users

Open the Print dialog box and select Printer Settings from the drop-down list, then click the Basic Settings tab.

Click the Reserve Jobs button. The Reserve Job dialog box appears.

Select the Reserve Job On check box, then select Re-Print Job.

Enter a user name and job name in the corresponding text box.

Click OK. The printer prints your document, then stores the print job data on the Hard Disk Drive.

For Mac OS 9 users

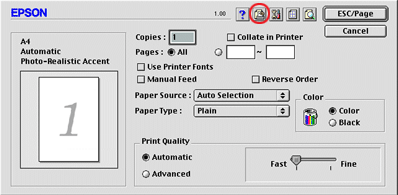

Make printer driver settings as appropriate for your document, open the Basic Settings menu, then click the Reserve Jobs icon. The Reserve Jobs Settings dialog box appears.

Select the Reserve Job On check box, then select Re-Print Job.

Enter a user name and job name in the corresponding text boxes.

Note:

If you want to create a thumbnail of the first page of a job, select the Create a thumbnail check box. Thumbnails can be accessed by entering http:// followed by the internal print server's IP address in a Web browser.

Click OK. The printer prints your document, then stores the print job on the Hard Disk Drive.

To reprint or delete this data using the printer's control panel, see Using the Quick Print Job Menu.

[Top]

Verify Job

The Verify Job option allows you to print one copy in order to verify the content before printing multiple copies.

Follow the steps below to use the Verify Job option.

For Mac OS X users

Open the Print dialog box and select Printer Settings from the drop-down list, then click the Basic Settings tab.

Click the Reserve Job button. The Reserve Job dialog box appears.

Select the Reserve Job On check box, then select Verify Job.

Enter a user name and job name in the corresponding text box.

Click OK. The printer prints your document and stores the print job data on the Hard Disk Drive.

For Mac OS 9 users

Specify the number of copies to be printed, then make other printer driver settings as appropriate for your document.

Open the Basic Settings dialog box, then click the Reserve Jobs icon. The Reserve Jobs Settings dialog box appears.

Select the Reserve Job On check box, then select Verify Job.

Enter a user name and job name in the corresponding text boxes.

Note:

If you want to create a thumbnail of the first page of a job, select the Create a thumbnail check box. Thumbnails can be accessed by entering http:// followed by the internal print server's IP address in a Web browser.

Click OK. The printer prints one copy of your document, and stores the print data with information on the number of remaining copies on the Hard Disk Drive.

After you have confirmed the printout, you can print the remaining copies or delete this data using the printer's control panel. See Using the Quick Print Job Menu for instructions.

[Top]

Stored Job

The Stored Job option is useful for storing documents you print on a regular basis, such as invoices. The stored data remains on the Hard Disk Drive even if you turn off the printer or reset it using the Reset All function.

Follow the steps below to store print data using the Stored Job option.

For Mac OS X users

Open the Print dialog box and select Printer Settings from the drop-down list, then click the Basic Settings tab.

Click the Reserve Job button. The Reserve Job dialog box appears.

Select the Reserve Job On check box, then select Stored Job.

Enter a user name and job name in the corresponding text box.

Click OK. The printer prints your document, then stores the print job data on the Hard Disk Drive.

For Mac OS 9 users

Make printer driver settings as appropriate for your document, open the Basic Settings menu, then click the Reserve Jobs icon. The Reserve Jobs Settings dialog box appears.

Select the Reserve Job On check box, then select Stored Job.

Enter a user name and job name in the corresponding text boxes.

Note:

If you want to create a thumbnail of the first page of a job, select the Create a thumbnail check box. Thumbnails can be accessed by entering http:// followed by the internal print server's IP address in a Web browser.

Click OK. The printer stores the print data on the Hard Disk Drive.

To print or delete this data using the printer's control panel, see Using the Quick Print Job Menu.

[Top]

Confidential Job

The Confidential Job option allows you to apply passwords to print jobs stored on the Hard Disk Drive.

Follow the steps below to store print data using the Confidential Job option.

For Mac OS X users

Open the Print dialog box and select Printer Settings from the drop-down list, then click the Basic Settings tab.

Click the Reserve Job button. The Reserve Job dialog box appears.

Select the Reserve Job On check box, then select Confidential Job.

Enter a user name and job name in the corresponding text box.

Set the password for the job by entering a four-digit number in the password dialog box.

Note:

Password must be four digits.

Only numbers from 1 through 4 can be used for password.

Keep password in a safe place. You must enter the correct password when printing a Confidential Job.

Click OK. The printer prints your document, then stores the print job data on the Hard Disk Drive.

For Mac OS 9 users

Make printer driver settings as appropriate for your document, open the Basic Settings dialog box, then click the Reserve Jobs icon. The Reserve Jobs Settings dialog box appears.

Select the Reserve Job On check box, then select Confidential Job.

Enter a user name and job name in the corresponding text boxes.

Set the password for the job by entering a four-digit number in the password text box.

Note:

Password must be four digits.

Only numbers from 1 through 4 can be used for password.

Keep password in a safe place. You must enter the correct password when printing a Confidential Job.

Click OK. The printer stores the print job on the Hard Disk Drive.

To print or delete this data using the printer's control panel, see Using the Confidential Job Menu.

[Top]
