Using the Printer Driver / For Windows

Setting Up the USB Connection

The USB interface that comes with your printer complies with Microsoft Plug and Play (PnP) USB specifications.

Note:

Only PC systems equipped with a USB connector and running Windows Me, 98, XP, and 2000 support the USB interface.

Click Start, point to Settings, then click Printers. In Windows XP, click Start, then click Printers and Faxes.

Right-click the EPSON AL-C4100 Advanced icon, and click Properties on the menu that appears.

Click the Details tab. In Windows XP or 2000, click the Ports tab.

Select the appropriate USB port from the Print to the following port drop-down list. In Windows Me or 98, select EPUSB1: (EPSON AL-C4100). In Windows XP or 2000, select USB001 in the list on the Ports menu.

Note:

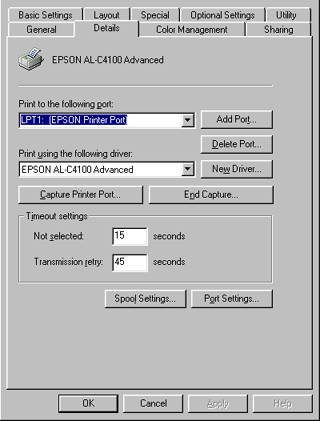

This screen is a Windows 98 screen.

Click OK to save this setting.
