How To / Installing Components on Your Computer

Windows XP

For Windows XP, use the following procedure to install the necessary components.

Note:
  • The Windows XP CD-ROM may be required during the installation.
  • When using TCP/IP or IPP for printing, you need to set the IP address, the subnet mask, and the default gateway of the computer.

Click Start, highlight Control Panel, and then click Network and Internet Connections. Select Network Connections.

Under LAN or High-Speed Internet, click the Local Area Connection icon.

Under Network Tasks, click Change settings of this connection.

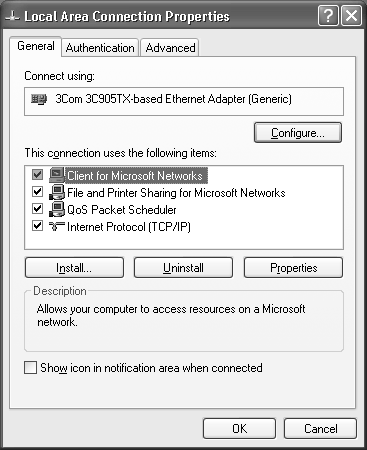

Check if the following necessary components are in the list. If they are already installed, go to the next chapter.

The following table lists the components required for configuring the print server with EpsonNet WinAssist.

EpsonNet WinAssist's setting screens

Necessary components

TCP/IP, AppleTalk, IPP, SNMP (IP trap)

Internet Protocol (TCP/IP)

MS Network

Internet Protocol (TCP/IP)

NetWare, SNMP (IPX trap)

Latest Novell Client downloaded from the Novell Web site

The following table lists the components required for network printing.

Printing method

Necessary components

LPR or Internet printing

Internet Protocol (TCP/IP)

Microsoft Network Shared printing

Internet Protocol (TCP/IP)
Client for Microsoft Networks

Printing via NetWare server

Latest Novell Client downloaded from the Novell Web site

If the necessary components are not in the list, click Install to install them, as described below.

For LPR or Internet printing:
Internet Protocol (TCP/IP) is installed by default. You cannot add or delete it.

For Microsoft Network Shared printing:
Select Client and then click Add. Select Client for Microsoft Networks and then click OK.

For printing via NetWare server:
Download the latest Novell Client from the Novell Web site and install it on the computer. Also, be sure to install IPX. See the Novell Web site for detailed information.

For LPR, Internet, Microsoft Network Shared printing:
Double-click Internet Protocol (TCP/IP) on the Local Area Connection Properties dialog box to open the Internet Protocols (TCP/IP) Properties dialog box. Set the IP address, the subnet mask, etc. and then click OK.

Restart the computer.

The necessary components are now installed. Go to the next chapter Connecting the Print Server to the Network.
