About EPSON Status Monitor 3

EPSON Status Monitor 3 is a utility program that monitors your printer and gives you information about its current status. For example, you can find out the amount of remaining toner or the remaining functional life of the photoconductor unit through this utility. If a print error occurs, the utility provides you with a message describing the error. EPSON Status Monitor 3 is accessed from the Apple menu. See the following section for more information.


[Top]

Accessing EPSON Status Monitor 3

EPSON Status Monitor 3 monitors the printer during printing and while the EPSON Status Monitor 3 dialog box is open.

You can access EPSON Status Monitor 3 by selecting the EPSON Status Monitor 3 alias from the Apple menu.

Note:
  • The appropriate printer port must already be selected in the Chooser so that necessary information can be received from the selected printer driver when EPSON Status Monitor 3 starts. If the printer port is not correct, an error will occur.
  • If you change the printer driver in the Chooser while the spool file is printing in the background, output to the printer may be disrupted.
  • Printer and consumable products status information appears in the status window only if the Chooser is acquiring status normally.


[Top]

Getting printer status details

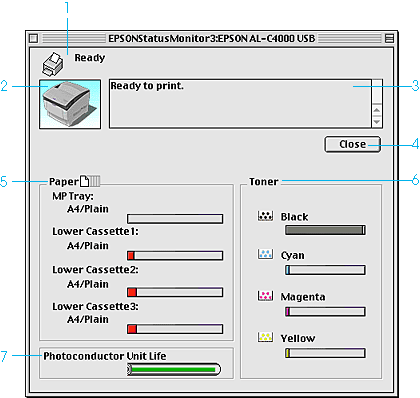

You can monitor printer status and get information on consumable products using the EPSON Status Monitor 3 dialog box.

1.

Icon/Message:

The icon and message shows the printer status.

2.

Printer image:

The image at the upper left shows the printer status graphically.

3.

Text box:

The text box next to the printer image displays the current status of the printer. When a problem occurs, the most probable solution is displayed.

4.

Close button:

Clicking this button closes the dialog box.

5.

Paper:

Displays the paper size, paper type, and the approximate amount of paper remaining in the paper source. Information for the optional cassettes are displayed only if this option is installed.

6.

Toner:

Indicates the amount of remaining toner. The toner icon flashes if toner is low (10 percent or less).

7.

Photoconductor Unit Life:

Indicates the remaining functional life of the photoconductor unit.


[Top]

Setting Monitoring Preferences

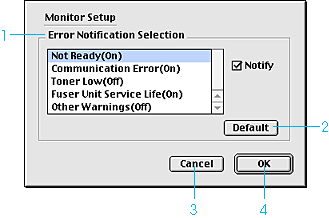

To make specific monitoring settings, select Monitor Setup from the File menu on EPSON Status Monitor 3. The Monitor Setup dialog box appears.

The following settings and buttons appear in the dialog box:

1.

Error Notification Selection:

Select the types of error that you wish to be notified about.

2.

Default button:

Restores default settings.

3.

Cancel button:

Cancels any changes.

4.

OK button:

Saves new changes.


[Top]

Status Alert window

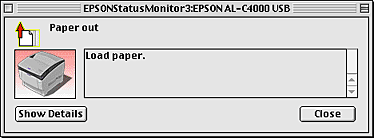

The Status Alert window appears automatically when an error occurs. It indicates what type of error has occurred and offers you a possible solution. It closes automatically once the problem is cleared.

If you wish to see information about printer consumables, click Show Details. If you click this button, the Status Alert Window will not disappear even after the problem is cleared. To close the window you need to click Close.
