Product Information

Printer Parts

1. control panel
2. top cover
3. output tray
4. power switch
5. latch on cover B
6. latch on cover A
7. standard lower cassette
8. MP tray (Multi-Purpose tray)
9. expansion tray

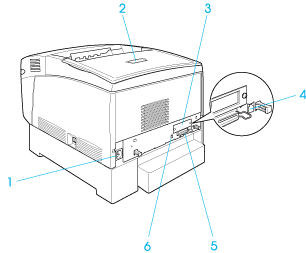

1. AC inlet
2. stopper
3. interface card slot cover
4. Ethernet interface connector
5. parallel interface connector
6. USB interface connector

1. transfer unit
2. fuser unit
3. photoconductor unit
4. toner cartridge
5. cover D

Control panel

1. LCD panel
2. Up button
3. Enter button
4. Down button
5. Back button
6. Job Cancel button
7. Start/Stop button
8. Ready light
9. Error light
10. Data light

1	LCD panel	Displays printer status messages and control panel settings.
2, 3, 4, 5	Up/Enter/Down/Back buttons	Use these buttons to access the control panel menus, where you can make printer settings and check the status of consumable products. For instructions on how to use each button, see Using the Control Panel Menus.
6	Job Cancel button	Press once to cancel the current print job. Press down for more than two seconds to delete all jobs from the printer memory, including jobs the printer is currently receiving, saving to the Hard Disk Drive, or printing.
7	Start/Stop button	Switches the printer between ready and offline status. When the error light is flashing, pressing this button clears the error and switches the printer to ready status.
8	Ready light	On when the printer is ready, indicating that the printer is ready to receive and print data. When the printer is not ready, this light is off.
9	Error light	On or flashes when an error has occurred. Flashing slowly when the printer is not ready.
10	Data light	On when print data is stored in the print buffer (the section of printer memory reserved for receiving data) but not yet printed. Flashing when the printer is processing data. Off when no data remains in the print buffer.

For detailed information about using the control panel, see Control Panel Operation.
