About Your Printer

Printer Parts

Front view
Rear view
Inside the printer
Control panel

Front view

a. control panel
b. cover A
c. output tray
d. power switch
e. latch on cover B
f. latch on cover A
g. standard lower cassette
h. MP tray (Multi-Purpose tray)
i. expansion tray


[Top]

Rear view

a. stopper
b. Ethernet interface connector
c. USB interface connector
d. AC inlet


[Top]

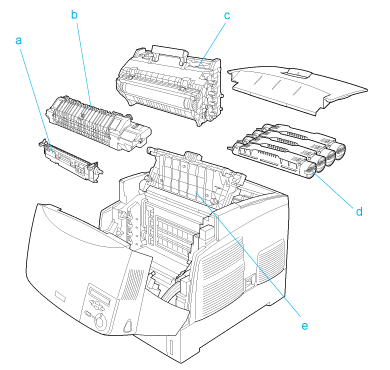

Inside the printer

a. transfer unit
b. fuser unit
c. photoconductor unit
d. toner cartridge
e. cover D


[Top]

Control panel

a.

LCD panel

Displays printer status messages and control panel menu settings.

b.
c.
d.
e.

Back button
Up button
Enter button
Down button

Use these buttons to access the control panel menus, where you can make printer settings and check the status of consumable products. For instructions on how to use these buttons, see Using the Control Panel Menus.

f.

Error light
(Red)

On or flashes when an error has occurred. Flashing slowly when the printer is not ready.

g.

Start/Stop button

When the printer is printing, pressing this button stops the printing.
When the error light is flashing, pressing this button clears the error and switches the printer to ready status.

h.

Ready light
(Green)

On when the printer is ready, indicating that the printer is ready to receive and print data.
Off when the printer is not ready.

i.

Data light
(Yellow)

On when print data is stored in the print buffer (the section of printer memory reserved for receiving data) but not yet printed.
Flashes when the printer is processing data.
Off when no data remains in the print buffer.

j.

Cancel Job button

Press once to cancel the current print job.
Press and hold for more than two seconds to delete all jobs from the printer memory, including jobs the printer is currently receiving, saving to the printing.
