Network Software / EpsonNet Internet Print
Windows 98/95
Windows NT 4.0
EpsonNet Internet Print supports printing across the Internet using Internet Printing Protocol. Follow the steps below to set up the printer.
Note: |
|
Make sure that TCP/IP is correctly installed and setup in the computer and a valid IP address is set for the computer and printer. |
Make sure that the IPP settings in EpsonNet Config are correct. See the EpsonNet Config Reference Guide or IPP for instructions on settings for IPP. |
To start EpsonNet Internet Print, click Start, point to Programs and then EpsonNet Internet Print, then click Add EpsonNet Internet Print Port. |

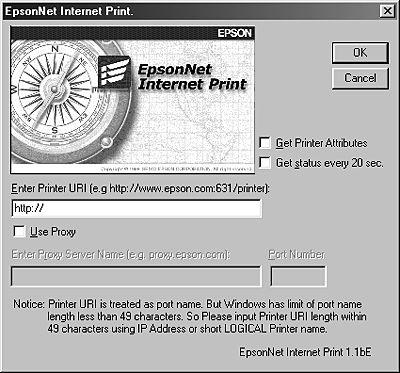

The following screen appears. The address you set here becomes the port for Internet printing. Make the settings described below. |
Enter Printer URI:
Enter the target printer's URI up to 49 characters. The URI you set here must be same as the IPP URL you have set for the IPP setting screen in EpsonNet Config. Do not use the following characters; | \ [ ] { } < > # " '
Format: http://IP address of printer:631/printer name
Example: http://192.168.100.201:631/EPSON_IPP_Printer
Use Proxy:
When using the proxy server, select this box and enter the Proxy Server Name and Port Number. All communication is done via the proxy server.
Enter Proxy Server Name:
Enter the proxy server name or the IP address of the proxy server. You can enter up to 256 characters, but only 127 characters are valid. Do not use the following characters; | \ [ ] { } < > # " '
Port Number:
Enter the port number of the proxy server (from 0 to 65535).
Get Printer Attributes:
When you select this box and click OK, EpsonNet Internet Print communicates with the printer and acquires information, so it may take a few minutes before a message appears. This setting is available only when creating a port.
Get status every 20 sec.:
Select this box when you want to receive printer status updates at regular intervals (every 5 seconds during printing and every 20 seconds when idle). If you select this box, a message will appear if an error occurs during printing. You can also check the printer status by double-clicking the printer icon.
OK button:
Saves the settings.
Cancel button:
Cancels any changes.
Note: |
|
|
|
|
Click OK to save settings. |
When a message appears saying the settings are correctly configured, click OK to start the Add Printer Wizard. Click Next. |
Note: |
|
Click the Local printer radio button and click Next. |
Select the printer driver and click Next. |

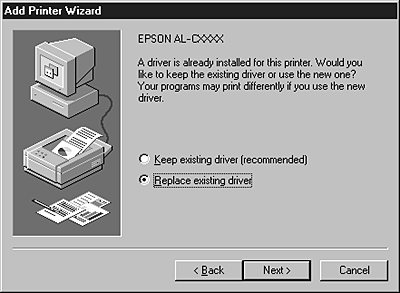

If the following dialog box appears, select Replace existing driver and click Next.

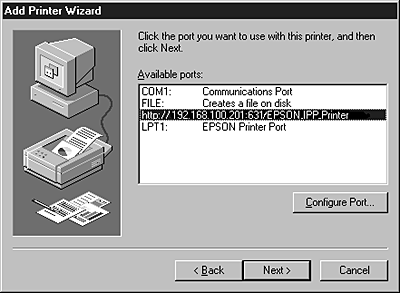

Select the port added by EpsonNet Internet Print in the previous section. Click Next. |
Follow the on-screen instructions to install the printer driver. |
If a dialog box instructing you to install EPSON Status Monitor 2 or EPSON Status Monitor 3 appears, click Cancel and terminate the installation. |
Note: |
|
|
Be sure that TCP/IP is correctly installed and setup in the computer and a valid IP address is set for the computer and printer. |
Make sure that the IPP settings in EpsonNet Config are correct. See the EpsonNet Config Reference Guide or IPP for instructions on settings for IPP. |
Click Start, point to Settings, and then select Printers. |
Double-click the Add Printer icon and click Next. |
Click the My Computer radio button and click Next. |
Click the Add Port button, and select EPSON IPP Port from the list. Then click the New Port button. |

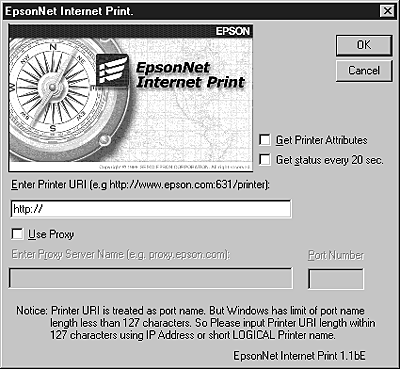

The following screen appears. The address you set here becomes the port for Internet printing. Make the settings described below. |
Enter Printer URI:
Enter the target printer's URI (up to 127 characters). The URI you set here must be the same as the IPP URL you set for the IPP configuration in EpsonNet Config. Do not use the following characters; | \ [ ] { } < > # " '
Format: http://IP address of printer:631/printer name
Example: http://192.168.100.201:631/EPSON_IPP_Printer
Use Proxy:
When using a proxy server, select this box and enter the Proxy Server Name and Port Number. All communication is done via the proxy server.
Enter Proxy Server Name:
Enter the proxy server name or the IP address of the proxy server (up to 256 characters). Do not use the following characters; | \ [ ] { } < > # " '
Port Number:
Enter the port number of the proxy server (from 0 to 65535).
Get Printer Attributes:
When you select this box and click OK, EpsonNet Internet Print communicates with the printer and acquires information, so it may take a few minutes before a message appears. This setting is available only when creating a port.
Get status every 20 sec.:
Select this box when you want to receive printer status updates at regular intervals (every 5 seconds during printing and every 20 seconds when idle). If you select this box, a message will appear if an error occurs during printing. You can also check the printer status by double-clicking the printer icon.
OK button:
Saves the settings.
Cancel button:
Cancels any changes.
Note: |
|
|
|
|
Click OK to save the settings. |
Select the printer driver, and follow the on-screen instructions to install the printer driver. |
Note: |
|
