 | Working with Fonts |
|
 EPSON BarCode Fonts (Windows Only)
Available fonts
Adding more fonts
Selecting fonts
Downloading fonts

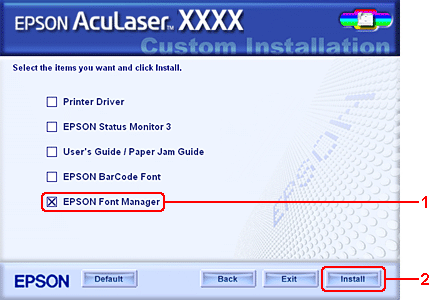

EPSON Font Manager (Windows Only)
| EPSON BarCode Fonts (Windows Only) |
EPSON BarCode Fonts let you easily create and print many types of bar codes.
Normally, bar code creation is a laborious process requiring you to specify various command codes, such as Start bar, Stop bar and OCR-B, in addition to the bar code characters themselves. However, EPSON BarCode Fonts are designed to add such codes automatically, allowing you to easily print bar codes that conform to a variety of bar code standards.
EPSON BarCode Fonts support the following types of bar codes.
|
Bar code Standard
|
EPSON BarCode
|
OCR-B
|
Check Digit
|
Comments
|
|
EAN
|
EPSON EAN-8
|
Yes
|
Yes
|
Creates EAN (abbreviated version) bar codes.
|
|
EPSON EAN-13
|
Yes
|
Yes
|
Creates EAN (standard version) bar codes.
|
|
UPC-A
|
EPSON UPC-A
|
Yes
|
Yes
|
Creates UPC-A bar codes.
|
|
UPC-E
|
EPSON UPC-E
|
Yes
|
Yes
|
Creates UPC-E bar codes.
|
|
Code39
|
EPSON Code39
|
No
|
No
|
Printing of OCR-B and check digits can be specified with the font name.
|
|
EPSON Code39 CD
|
No
|
Yes
|
|
EPSON Code39 CD Num
|
Yes
|
Yes
|
|
EPSON Code39 Num
|
Yes
|
No
|
|
Code128
|
EPSON Code128
|
No
|
Yes
|
Creates Code128 bar codes.
|
|
Interleaved 2 of 5 (ITF)
|
EPSON ITF
|
No
|
No
|
Printing of OCR-B and check digits can be specified with the font name.
|
|
EPSON ITF CD
|
No
|
Yes
|
|
EPSON ITF CD Num
|
Yes
|
Yes
|
|
EPSON ITF Num
|
Yes
|
No
|
|
Codabar
|
EPSON Codabar
|
No
|
No
|
Printing of OCR-B and check digits can be specified with the font name.
|
|
EPSON Codabar CD
|
No
|
Yes
|
|
EPSON Codabar CD Num
|
Yes
|
Yes
|
|
EPSON Codabar Num
|
Yes
|
No
|
System requirements
To use EPSON BarCode Fonts, your computer system should meet the following requirements:
|
Computer:
|
IBM PC series or IBM compatible with an i386SX or higher CPU
|
|
Operating system:
|
Microsoft Windows XP, Me, 98, 2000, NT 4.0, or Server 2003
|
|
Hard disk:
|
15 to 30 KB free space, depending on the font.
|
 |
Note: |
|
|
EPSON BarCode Fonts can only be used with Epson printer drivers.
|
|
Installing EPSON BarCode Fonts
Follow the steps below to install EPSON BarCode Fonts. The procedure described here is for installation in Windows 98; the procedure for other Windows operating systems is nearly the same.
 |
Make sure that the printer is off and that Windows is running on your computer.
|
 |
Insert the printer software CD-ROM in the CD-ROM drive.
|
| |
Note: |
| |
-
If the EPSON Installation Program screen does not appear automatically, double-click the My Computer icon, right-click the CD-ROM icon, and click OPEN in the menu that appears. Then double-click Epsetup.exe.
|
|
 |
Click Continue. When the software license agreement screen appears, read the statement and then click Agree.
|
 |

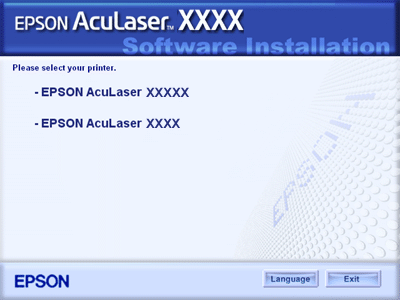

Select your printer.
|
 |

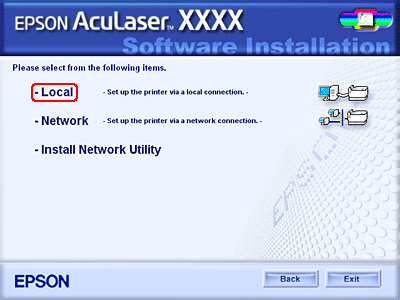

In the dialog box that appears, click Local.
|
 |

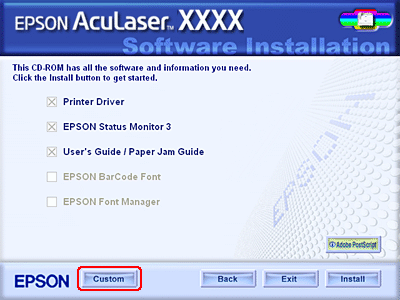

Click Custom.
|
 |

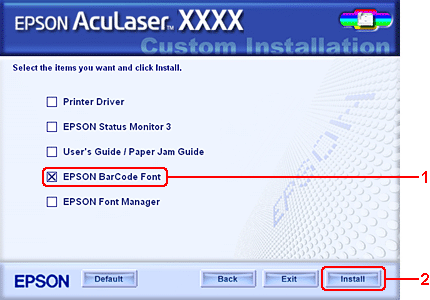

Select the EPSON BarCode Font check box and then click Install. Then follow the on-screen instructions.
|
 |
When installation is complete, click OK.
|
EPSON BarCode Fonts are now installed on your computer.
Printing with EPSON BarCode Fonts
Follow the steps below to create and print bar codes using EPSON BarCode Fonts. The application featured in these instructions is Microsoft WordPad. The actual procedure may differ slightly when printing from other applications.
|
|

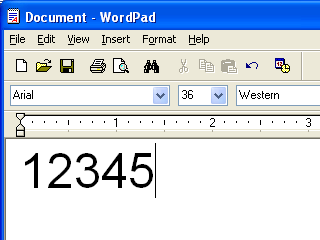

Open a document in your application and enter the characters you want to convert into a bar code.
|
|
|

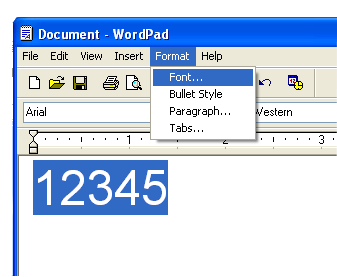

Select the characters, then select Font from the Format menu.
|
|
|

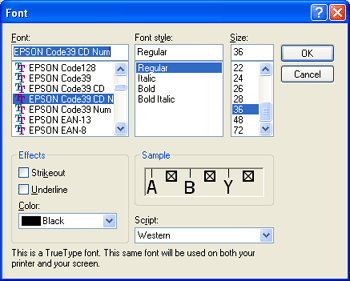

Select the EPSON BarCode Font you want to use, set the font size, then click OK.
|
| |
Note: |
| |
|
In Windows XP, 2000, NT 4.0, or Server 2003, you cannot use font sizes larger than 96 points when printing bar codes.
|
|
|
|

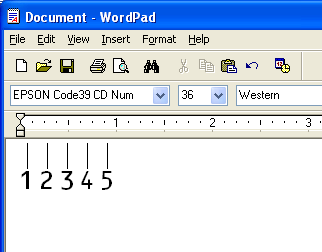

The characters you selected appear as bar code characters similar to those shown below.
|
|
|
Select Print from the File menu, select your EPSON printer, then click Properties. Make the following printer driver settings. For both EPSON AcuLaser C2600 and EPSON AcuLaser 2600 users, see the Color Printer Driver section in the table below.
|
|
|
Click OK to print the bar code.
|
| |
Note: |
| |
|
If there is an error in the bar code character string, such as inappropriate data, the bar code will be printed as it appears on the screen, but it cannot be read by a bar code reader.
|
|
Notes on inputting and formatting bar codes
Please note the following when inputting and formatting bar code characters:
-
To more easily distinguish bar codes from other text in your document, set your application to show text symbols, such as paragraph marks, tabs, etc.
|
Note: |
|
|
Depending on the print density, or on the quality or color of the paper, bar codes may not be readable with all bar code readers. Print a sample and make sure the bar code can be read before printing large quantities.
|
|
BarCode Font specifications
This section contains details on the character input specifications for each EPSON BarCode Font.
EPSON EAN-8
|
Character type
|
Numbers (0 to 9)
|
|
Number of characters
|
7 characters
|
|
Font size
|
52 pt to 130 pt (up to 96 pt in Windows XP/2000/NT 4.0/Server 2003). Recommended sizes are 52 pt, 65 pt (standard), 97.5 pt, and 130 pt.
|
The following codes are inserted automatically and need not be input by hand:
Print sample
|
EPSON EAN-8
|
|
|
EPSON EAN-13
|
Character type
|
Numbers (0 to 9)
|
|
Number of characters
|
12 characters
|
|
Font size
|
60 pt to 150 pt (up to 96 pt in Windows XP/2000/NT 4.0/Server 2003). Recommended sizes are 60 pt, 75 pt (standard), 112.5 pt, and 150 pt.
|
The following codes are inserted automatically and need not be input by hand:
Print sample
|
EPSON EAN-13
|
|
|
EPSON UPC-A
|
Character type
|
Numbers (0 to 9)
|
|
Number of characters
|
11 characters
|
|
Font size
|
60 pt to 150 pt (up to 96 pt in Windows XP/2000/NT 4.0/Server 2003). Recommended sizes are 60 pt, 75 pt (standard), 112.5 pt and 150 pt.
|
The following codes are inserted automatically and need not be input by hand:
Print sample
|
EPSON UPC-A
|
|
|
EPSON UPC-E
|
Character type
|
Numbers (0 to 9)
|
|
Number of characters
|
6 characters
|
|
Font size
|
60 pt to 150 pt (up to 96 pt in Windows XP/2000/NT 4.0/Server 2003). Recommended sizes are 60 pt, 75 pt (standard), 112.5 pt, and 150 pt.
|
The following codes are inserted automatically and need not be input by hand:
Print sample
|
EPSON UPC-E
|
|
|
EPSON Code39
-
The height of the bar code is automatically adjusted to 15% or more of its total length, in conformance to the Code39 standard. For this reason, it is important to keep at least one space between the bar code and the surrounding text to prevent overlapping.
-
When printing two or more bar codes on one line, separate the bar codes with a tab, or select a font other than a BarCode Font and input the space. If a space is input while a Code39 font is selected, the bar code will not be correct.
|
Character type
|
Alphanumeric characters (A to Z, 0 to 9) Symbols (- . space $ / + %)
|
|
Number of characters
|
No limit
|
|
Font size
|
When OCR-B is not used: 26 pt or more (up to 96 pt in Windows XP/2000/NT 4.0/Server 2003). Recommended sizes are 26 pt, 52 pt, 78 pt, and 104 pt.
When OCR-B is used: 36 pt or more (up to 96 pt in Windows XP/2000/NT 4.0/Server 2003). Recommended sizes are 36 pt, 72 pt, 108 pt, and 144 pt.
|
The following codes are inserted automatically and need not be input by hand:
Print sample
|
EPSON Code39
|
EPSON Code39 CD
|
|
|
|
|
EPSON Code39 Num
|
EPSON Code39 CD Num
|
|
|
|
EPSON Code128
-
Code128 fonts support code sets A, B, and C. When the code set of a line of characters is changed in the middle of the line, a conversion code is automatically inserted.
-
The height of the bar code is automatically adjusted to 15% or more of its total length, in conformance to the Code128 standard. For this reason, it is important to keep at least one space between the bar code and the surrounding text to prevent overlapping.
-
When printing two or more bar codes on one line, separate the bar codes with a tab, or select a font other than a BarCode Font and input the space. If a space is input while Code128 is selected, the bar code will not be correct.
|
Character type
|
All ASCII characters (95 in total)
|
|
Number of characters
|
No limit
|
|
Font size
|
26 pt to 104 pt (up to 96 pt in Windows XP/2000/NT 4.0/Server 2003). Recommended sizes are 26 pt, 52 pt, 78 pt, and 104 pt.
|
The following codes are inserted automatically and need not be input by hand:
Print sample
|
EPSON Code128
|
|
|
EPSON ITF
-
The height of the bar code is automatically adjusted to 15% or more of its total length, in conformance to the Interleaved 2-of-5 standard. For this reason, it is important to keep at least one space between the bar code and the surrounding text to prevent overlapping.
|
Character type
|
Numbers (0 to 9)
|
|
Number of characters
|
No limit
|
|
Font size
|
When OCR-B is not used: 26 pt or more (up to 96 pt in Windows XP/2000/NT 4.0/Server 2003). Recommended sizes are 26 pt, 52 pt, 78 pt, and 104 pt.
When OCR-B is used: 36 pt or more (up to 96 pt in Windows XP/2000/NT 4.0/Server 2003). Recommended sizes are 36 pt, 72 pt, 108 pt, and 144 pt.
|
The following codes are inserted automatically and need not be input by hand:
Print sample
|
EPSON ITF
|
EPSON ITF CD
|
|
|
|
|
EPSON ITF Num
|
EPSON ITF CD Num
|
|
|
|
EPSON Codabar
-
The height of the bar code is automatically adjusted to 15% or more of its total length, in conformance to the Codabar standard. For this reason, it is important to keep at least one space between the bar code and the surrounding text to prevent overlapping.
|
Character type
|
Numbers (0 to 9)
Symbols (- $ : / . +)
|
|
Number of characters
|
No limit
|
|
Font size
|
When OCR-B is not used: 26 pt or more (up to 96 pt in Windows XP/2000/NT 4.0/Server 2003). Recommended sizes are 26 pt, 52 pt, 78 pt, and 104 pt.
When OCR-B is used: 36 pt or more (up to 96 pt in Windows XP/2000/NT 4.0/Server 2003). Recommended sizes are 36 pt, 72 pt, 108 pt, and 144 pt.
|
Print sample
|
EPSON Codabar
|
EPSON Codabar CD
|
|
|
|
|
EPSON Codabar Num
|
EPSON Codabar CD Num
|
|
|
|
 Top
The following table lists the fonts that are installed in your printer. The names of all the fonts appear in your application software’s font list if you are using the driver provided with the printer. If you are using a different driver, all of these fonts may not be available.
The fonts provided with the printer are shown below, according to the emulation mode.
LJ4/GL2 mode
|
Font Name
|
Family
|
HP Equivalent
|
|
Courier
|
Medium, Bold, Italic, Bold Italic
|
Courier
|
|
ITC Zapf Dingbats
|
-
|
ITC Zapf Dingbats
|
|
CG Times
|
Medium, Bold, Italic, Bold Italic
|
CG Times
|
|
CG Omega
|
Medium, Bold, Italic, Bold Italic
|
CG Omega
|
|
Coronet
|
-
|
Coronet
|
|
Clarendon Condensed
|
-
|
Clarendon Condensed
|
|
Univers
|
Medium, Bold, Medium Italic, Bold Italic
|
Univers
|
|
Univers Condensed
|
Medium, Bold, Medium Italic, Bold Italic
|
Univers Condensed
|
|
Antique Olive
|
Medium, Bold, Italic
|
Antique Olive
|
|
Garamond
|
Antiqua, Halbfett, Kursiv, Kursiv Halbfett
|
Garamond
|
|
Marigold
|
-
|
Marigold
|
|
Albertus
|
Medium, Extra Bold
|
Albertus
|
|
Ryadh
|
Medium, Bold
|
Ryadh
|
|
Malka
|
Medium, Bold, Italic
|
Miryam
|
|
Dorit
|
Medium, Bold
|
David
|
|
Naamit
|
Medium, Bold
|
Narkis
|
|
Arial
|
Medium, Bold, Italic, Bold Italic
|
Arial
|
|
Times New
|
Medium, Bold, Italic, Bold Italic
|
Times New
|
|
Helvetica
|
Medium, Bold, Oblique, Bold Oblique
|
Helvetica
|
|
Helvetica Narrow
|
Medium, Bold, Oblique, Bold Oblique
|
Helvetica Narrow
|
|
Palatino
|
Roman, Bold, Italic, Bold Italic
|
Palatino
|
|
ITC Avant Garde
|
Book, Demi, Book Oblique, Demi Oblique
|
ITC Avant Garde Gothic
|
|
ITC Bookman
|
Light, Demi, Light Italic, Demi Italic
|
ITC Bookman
|
|
New Century Schoolbook
|
Roman, Bold, Italic, Bold Italic
|
New Century Schoolbook
|
|
Times
|
Roman, Bold, Italic, Bold Italic
|
Times
|
|
ITC Zapf Chancery Italic
|
-
|
ITC Zapf Chancery Medium Italic
|
|
Symbol
|
-
|
Symbol
|
|
SymbolPS
|
-
|
SymbolPS
|
|
Wingdings
|
-
|
Wingdings
|
|
Letter Gothic
|
Medium, Bold, Italic
|
Letter Gothic
|
|
Naskh
|
Medium, Bold
|
Naskh
|
|
Koufi
|
Medium, Bold
|
Koufi
|
|
CourierPS
|
Medium, Bold, Oblique, Bold Oblique
|
CourierPS
|
|
Line Printer
|
-
|
Line Printer
|
|
OCR A
|
-
|
-
|
|
OCR B
|
-
|
-
|
|
Code39
|
9.37cpi, 4.68cpi
|
-
|
|
EAN/UPC
|
Medium, Bold
|
-
|
When selecting fonts in your application software, choose the font name listed in the HP Equivalent column.
|
Note: |
|
|
Depending on the print density, or on the quality or color of the paper, OCR A, OCR B, Code39, and EAN/UPC fonts may not be readable. Print a sample and make sure the fonts can be read before printing large quantities.
|
|
ESC/P 2 and FX modes
|
Font Name
|
Family
|
|
Courier
|
Medium, Bold
|
|
EPSON Prestige
|
-
|
|
EPSON Roman
|
-
|
|
EPSON Sans serif
|
-
|
|
Arial
|
Medium, Bold
|
|
Letter Gothic
|
Medium, Bold
|
|
Times New Roman
|
Medium, Bold
|
|
EPSON Script
|
-
|
|
OCR A
|
-
|
|
OCR B
|
-
|
* Available only in ESC/P2 mode.
|
Note: |
|
|
Depending on the print density, or on the quality or color of the paper, OCR A and OCR B fonts may not be readable. Print a sample and make sure the fonts can be read before printing large quantities.
|
|
I239X mode
|
Font Name
|
Family
|
|
Courier
|
Medium, Bold
|
|
EPSON Prestige
|
-
|
|
EPSON Gothic
|
-
|
|
EPSON Orator
|
-
|
|
EPSON Script
|
-
|
|
EPSON Presentor
|
-
|
|
EPSON Sans serif
|
-
|
|
OCR B
|
-
|
|
Note: |
|
|
Depending on the print density, or on the quality or color of the paper, the OCR B font may not be readable. Print a sample and make sure the font can be read before printing large quantities.
|
|
PS 3 mode
Seventeen scalable fonts. The fonts include: Courier, Courier Oblique, Courier Bold, Courier Bold Oblique, Helvetica, Helvetica Oblique, Helvetica Bold, Helvetica Bold Oblique, Helvetica Narrow, Helvetica Narrow Oblique, Helvetica Narrow Bold, Helvetica Narrow Bold Oblique, Times Roman, Times Italic, Times Bold, Times Bold Italic, and Symbol.
P5C mode
Scalable Font
|
Font name
|
Font Classification
| |
Font name
|
Font Classification
|
|
Courier
|
*1
| |
Arial Bold
|
*1
|
|
Courier Bold
|
*1
| |
Arial Italic
|
*1
|
|
Courier Italic
|
*1
| |
Arial Bold Italic
|
*1
|
|
Courier Bold Italic
|
*1
| |
Times New Roman
|
*1
|
|
Letter Gothic
|
*1
| |
Times New Roman Bold
|
*1
|
|
Letter Gothic Bold
|
*1
| |
Times New Roman Italic
|
*1
|
|
Letter Gothic Italic
|
*1
| |
Times New Roman Bold Italic
|
*1
|
|
CourierPS
|
*1
| |
Helvetica
|
*1
|
|
CourierPS Bold
|
*1
| |
Helvetica Bold
|
*1
|
|
CourierPS Oblique
|
*1
| |
Helvetica Oblique
|
*1
|
|
CourierPS Bold Oblique
|
*1
| |
Helvetica Bold Oblique
|
*1
|
|
CG Times
|
*1
| |
Helvetica Narrow
|
*1
|
|
CG Times Bold
|
*1
| |
Helvetica Narrow Bold
|
*1
|
|
CG Times Italic
|
*1
| |
Helvetica Narrow Oblique
|
*1
|
|
CG Times Bold Italic
|
*1
| |
Helvetica Narrow Bold Oblique
|
*1
|
|
CG Omega
|
*1
| |
Palatino Roman
|
*1
|
|
CG Omega Bold
|
*1
| |
Palatino Bold
|
*1
|
|
CG Omega Italic
|
*1
| |
Palatino Italic
|
*1
|
|
CG Omega Bold Italic
|
*1
| |
Palatino Bold Italic
|
*1
|
|
Coronet
|
*1
| |
ITC Avant Garde Gothic Book
|
*1
|
|
Clarendon Condensed
|
*1
| |
ITC Avant Garde Gothic Demi
|
*1
|
|
Univers Medium
|
*1
| |
ITC Avant Garde Gothic Book Oblique
|
*1
|
|
Univers Bold
|
*1
| |
ITC Avant Garde Demi Oblique
|
*1
|
|
Univers Medium Italic
|
*1
| |
ITC Bookman Light
|
*1
|
|
Univers Bold Italic
|
*1
| |
ITC Bookman Demi
|
*1
|
|
Univers Medium Condensed
|
*1
| |
ITC Bookman Light Italic
|
*1
|
|
Univers Bold Condensed
|
*1
| |
ITC Bookman Demi Italic
|
*1
|
|
Univers Medium Condensed Italic
|
*1
| |
New Century Schoolbook Roman
|
*1
|
|
Univers Bold Condensed Italic
|
*1
| |
New Century Schoolbook Bold
|
*1
|
|
Antique Olive
|
*1
| |
New Century Schoolbook Italic
|
*1
|
|
Antique Olive Bold
|
*1
| |
New Century Schoolbook Bold Italic
|
*1
|
|
Antique Olive Italic
|
*1
| |
Times Roman
|
*1
|
|
Garamond Antiqua
|
*1
| |
Times Bold
|
*1
|
|
Garamond Halbfett
|
*1
| |
Times Italic
|
*1
|
|
Garamond Kursiv
|
*1
| |
Times Bold Italic
|
*1
|
|
Garamond Kursiv Halbfett
|
*1
| |
ITC Zapf Chancery Medium Italic
|
*1
|
|
Marigold
|
*1
| |
Symbol
|
*2
|
|
Albertus Medium
|
*1
| |
Wingdings
|
*3
|
|
Albertus Extra Bold
|
*1
| |
ITC Zapf Dingbats
|
*4
|
|
Arial
|
*1
| |
SymbolPS
|
*2
|
Bitmap Font
|
Font Name
|
Symbol Set
|
|
Line Printer
|
*5
|
Printing font samples
You can print samples of the fonts available in each mode by using the control panel’s Information Menu. Follow these steps to print font samples.
|
|
Make sure that paper is loaded.
|
|
|
Make sure the LCD panel displays Ready or Sleep, then press the  Enter button.
|
|
|
Press the  Down button to select the font sample for the appropriate mode.
|
|
|
Press the Enter button to print the selected font sample sheet.
|
Top
You can add a wide variety of fonts to your computer. Most font packages include an installer for this purpose.
See your computer documentation for instructions on installing fonts.
Top
Whenever possible select fonts in your application. See your software documentation for instructions.
If you are sending unformatted text to the printer directly from DOS or if you are using a simple software package that does not include font selection, you can select fonts using the printer’s control panel menus when in the LJ4, ESC/P 2, FX, or I239X emulation mode.
Top
Fonts that reside on your computer’s hard disk can be downloaded, or transferred, to the printer so they can be printed. Downloaded fonts, also called soft fonts, remain in printer memory until you turn off the printer or otherwise reset it. If you plan on downloading many fonts, make sure your printer has sufficient memory.
Most font packages make it easy to manage fonts by providing their own installer. The installer gives you the option of having the fonts automatically downloaded whenever you start your computer or having fonts downloaded only when you need to print a particular font.
Top
| EPSON Font Manager (Windows Only) |
EPSON Font Manager provides you with 131 software fonts.
System requirements
To use EPSON Font Manager, your computer system should meet the following requirements:
|
Computer:
|
IBM PC series or IBM compatible with an 486 or higher CPU
|
|
Operating system:
|
Microsoft Windows Me, 98, XP, 2000, NT 4.0, or Server 2003
Internet Explorer 4.0 or higher
|
|
Hard disk:
|
At least 15 MB of free space
|
Installing EPSON Font Manager
Follow the steps below to install EPSON Font Manager.
|
|
Make sure that the printer is off and that Windows is running on your computer.
|
|
|
Insert the printer software CD-ROM in the CD-ROM drive.
|
| |
Note: |
| |
-
If the EPSON Installation Program screen does not appear automatically, double-click the My Computer icon, right-click the CD-ROM icon, click OPEN in the menu that appears, then double-click Epsetup.exe.
|
|
|
|
Click Continue. When the software license agreement screen appears, read the statement then click Agree.
|
|
|
Select your printer.
|
|
|
In the dialog box that appears, click Local.
|
|
|
Click Custom.
|
|
|
Select the EPSON Font Manager check box and click Install. Then follow the on-screen instructions.
|
|
|
When installation is complete, click OK.
|
EPSON Font Manager is now installed on your computer.
Top
| |
