Product Information / Symbol Sets
International character sets for ISO
The following table lists the symbol sets available in LJ4 emulation mode.
A table of the characters for each set is included later in this section.
|
Symbol set name |
Symbol set ID for ESC ( |
Available typefaces |
|
IBM-US |
10U |
76 typefaces + Line Printer |
|

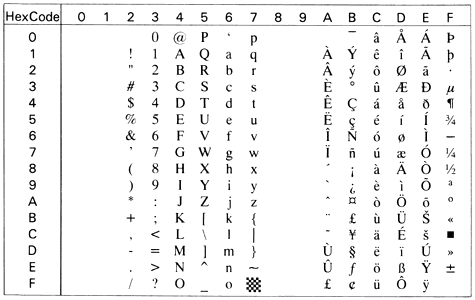

Roman-8* |
8U |
76 typefaces + Line Printer |
|

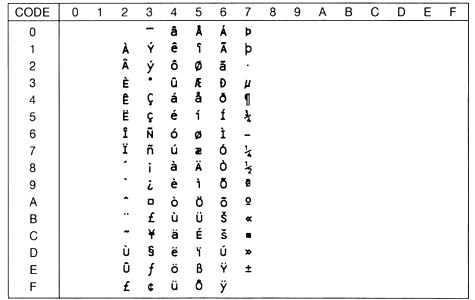

Roman Extension |
0E |
bitmap |
|

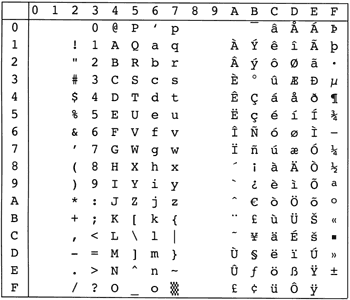

Roman-9 |
4U |
76 typefaces + Line Printer |
|

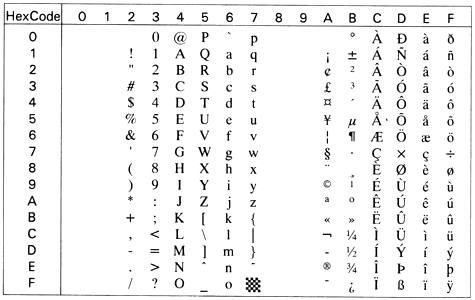

ECM94-1 |
0N |
76 typefaces + Line Printer |
|

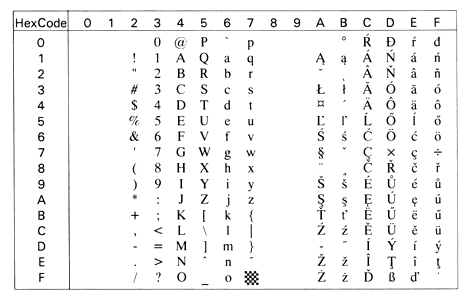

8859-2 ISO |
2N |
76 typefaces + Line Printer |
|
8859-9 ISO |
5N |
76 typefaces + Line Printer |
|

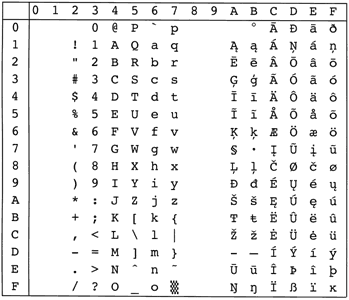

8859-10 ISO |
6N |
76 typefaces + Line Printer |
|
8859-15 ISO |
9N |
76 typefaces + Line Printer |
|
PcBlt775 |
26U |
76 typefaces |
|
IBM-DN |
11U |
76 typefaces + Line Printer |
|

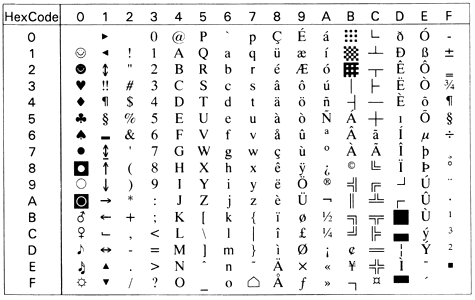

PcMultilingual |
12U |
76 typefaces + Line Printer |
|

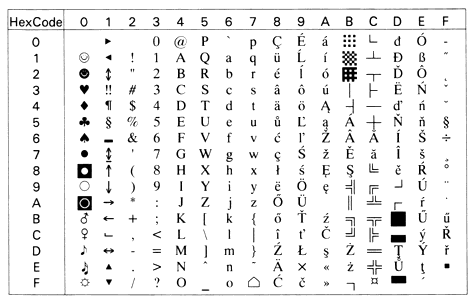

PcE.Europe |
17U |
76 typefaces |
|
PcTk437 |
9T |
76 typefaces |
|
PcEur858 |
13U |
76 typefaces + Line Printer |
|
Pc1004 |
9J |
76 typefaces |
|
WiAnsi |
19U |
76 typefaces |
|
WiE.Europe |
9E |
76 typefaces |
|

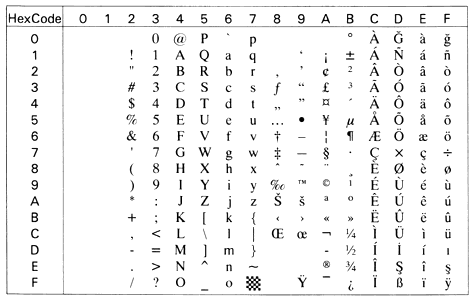

WiTurkish |
5T |
76 typefaces |
|

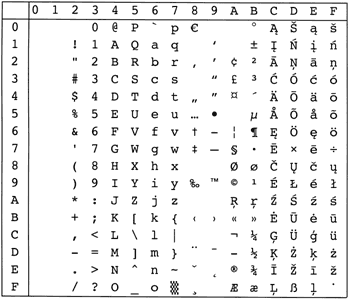

WiBALT |
19L |
76 typefaces |
|

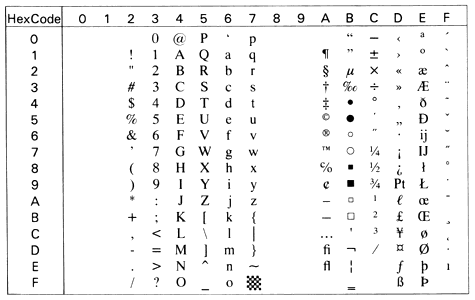

DeskTop |
7J |
76 typefaces |
|

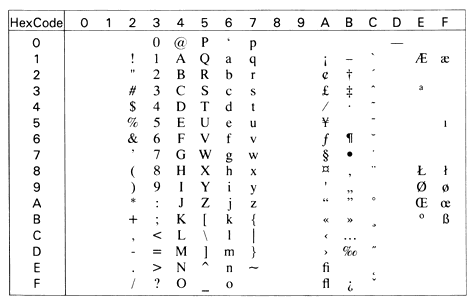

PsText |
10J |
76 typefaces |
|
VeInternational |
13J |
76 typefaces |
|

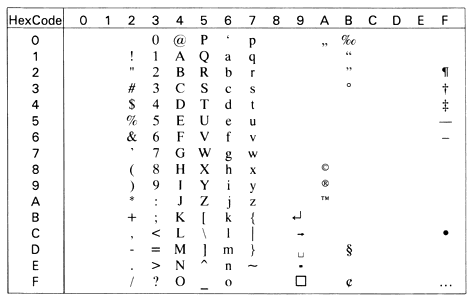

VeUS |
14J |
76 typefaces |
|
MsPublishing |
6J |
76 typefaces |
|

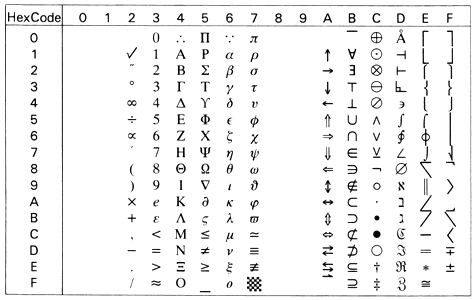

Math-8 |
8M |
76 typefaces |
|

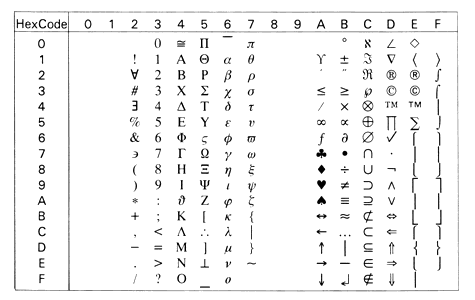

PsMath |
5M |
76 typefaces |
|
VeMath |
6M |
76 typefaces |
|
PiFont |
15U |
76 typefaces |
|

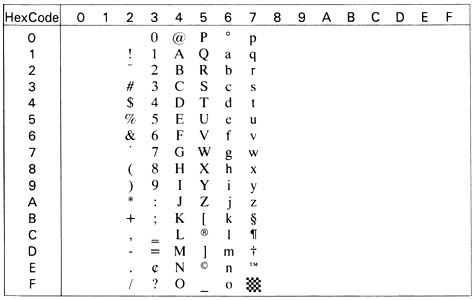

Legal |
1U |
76 typefaces + Line Printer |
|

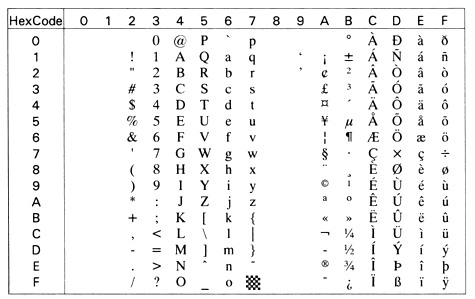

Windows |
9U |
76 typefaces |
|

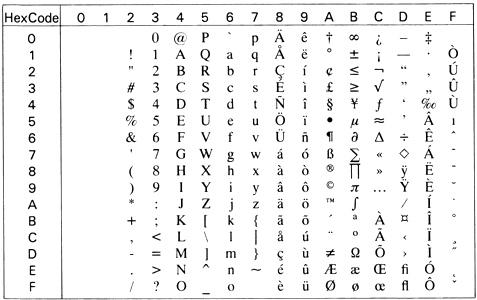

McText |
12J |
76 typefaces |
|

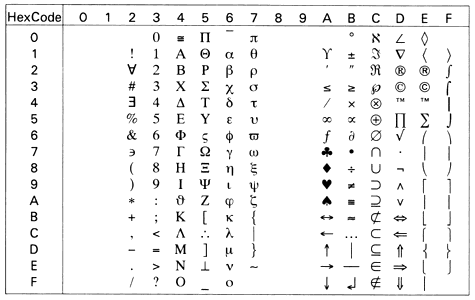

Symbol |
19M |
Symbol Set SWA, |
|

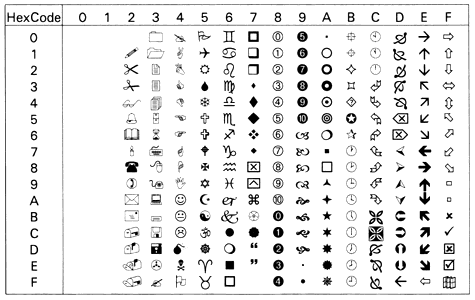

Wingdings |
579L |
More WingBats SWM |
|
OCR A |
0O |
OCR A |
|
OCR B |
1O |
OCR B |
|

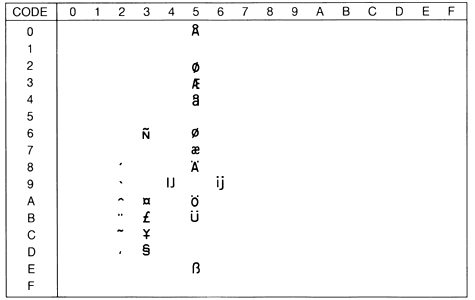

OCR B Extension |
3Q |
OCR B |
|

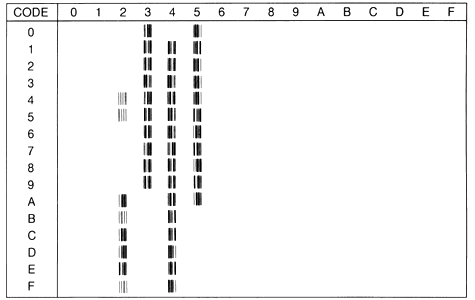

Code 39 |
0Y |
Code 39 (2 types) |
|

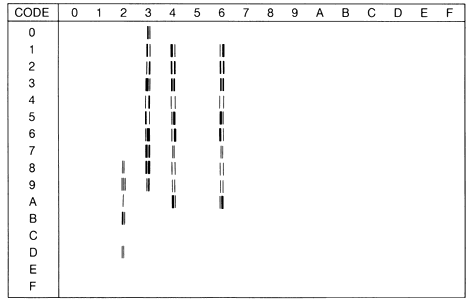

EAN/UPC |
8Y |
EAN/UPC (2 types) |
 | * The other 19 sets are the following: ANSI ASCII, Norweg1, French, HP German, Italian, JIS ASCll, Swedis 2, Norweg 2, UK, French 2, German, HP Spanish, Chinese, Spanish, IRV, Swedish, Portuguese, IBM Portuguese, and IBM Spanish. These are partial variations of the Roman-8 set. |
The 76 typefaces refer to those shown below:
|
Courier SWC |
Swiss 721 Narrow SWA |
To obtain the symbol sets listed below, substitute the characters in the ANSI ASCII sets with the characters in the table below.
|
Character set |
ASCII code hex |
|
|
 |
|
ANSI ASCII (0U) |
 |
|
Norweg 1 (0D) |
 |
|
French (0F) |
 |
|
HP German (0G) |
 |
|
Italian (0l) |
 |
|
JlS ASCII (0K) |
 |
|
Swedis 2 (0S) |
 |
|
Norweg 2 (1D) |
 |
|
UK (1E) |
 |
|
French 2 (1F) |
 |
|
German (1G) |
 |
|
HP Spanish (1S) |
 |
|
Chinese (2K) |
 |
|
Spanish (2S) |
 |
|
IRV (2U) |
 |
|
Swedish (3S) |
 |
|
Portuguese (4S) |
 |
|
IBM Portuguese (5S) |
 |
|
IBM Spanish (6S) |
 |
