Paper Handling

Setting the Paper Basket

When feeding paper forward
When feeding paper backward

When you install the optional Stand (C84402) to the printer, you can use the paper basket to prevent your printouts from getting dirty or crinkled. You can use the paper basket for both roll paper and cut sheet media. To install the Stand, see the Assembly and Setup Instructions.

Note:
When you print on thick paper, set the paper basket forward to prevent your printouts from becoming damaged. See the next section, When feeding paper forward.

When feeding paper forward

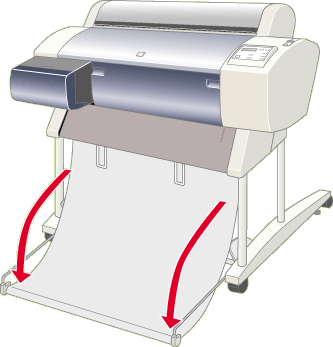

Pull down the paper basket unit rod so that it rests on the floor.


[Top]

When feeding paper backward

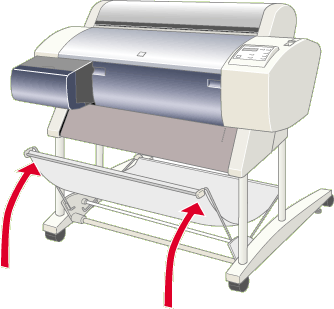

Lift the paper basket rod unit all the way up.

Note:

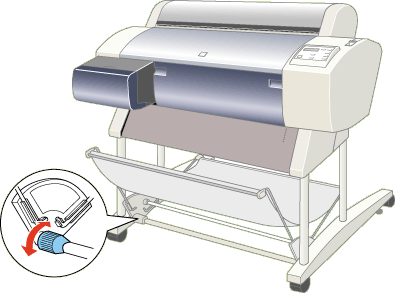

If the parts shown below loosen, tighten them.


[Top]
