Printer Parts and the Control Panel

Front view
Rear view
Inside view
Control panel

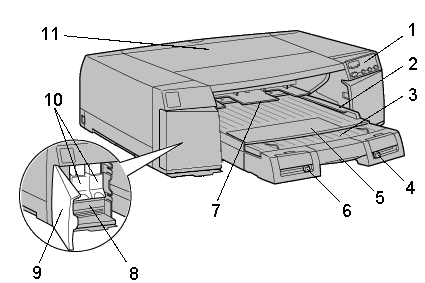

Front view

1

control panel

7

front manual feed slot

2

edge guide

8

ink cartridge compartment

3

paper tray cover

9

ink cartridge compartment door

4

media type lever

10

ink cartridge clamps

5

paper tray

11

printer cover

6

paper size lever


[Top]

Rear view

1

left edge guide

5

paper path cover

2

optional interface card slot cover

6

rear manual feed slot cover

3

USB interface connector

7

rear manual feed slot

4

parallel interface connector


[Top]

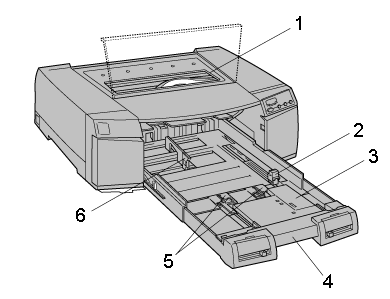

Inside view

1

print head

4

paper tray (extended)

2

front edge guide

5

paper tray extension release lever

3

paper guide roller

6

left edge guide


[Top]

Control panel

1

Ink Out light

9

Operate light

2

Paper Out light

10

paper light (paper tray)

3

Paper Size/Type light

11

cyan ink light

4

Eject-Continue button

12

black ink light

5

Cleaning button

13

paper light (manual feed slots)

6

Reset button

14

magenta ink light

7

paper light (lower paper tray)

15

yellow ink light

8

Operate button


[Top]
