Printing with Mac OS X

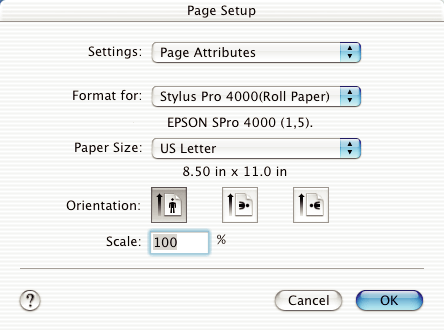

Page Setup dialog settings

Settings
Format for
Paper Size
Orientation
Scale

You can make appropriate Settings, Format for, Paper Size, Orientation, and Scale settings that you want to use for printing.

Note:
Page Setup dialog box is a standard feature of Mac OS X. See your operating system's documentation for details.

Settings

You can select Page Attributes or Summary.

Page Attributes

Displays the page setup settings.

Summary

Displays the list of current setting items.


[Top]

Format for

Select a printer with the desired paper and margins.

Printer

Description

SPro 4000: Borderless (Auto Expand)

Select this setting when printing on a cut sheet.

Prints your data with no margins enlarging the size of print data automatically.

SPro 4000: Borderless (Retain Size)

Select this setting when printing on a cut sheet.

Prints your data with no margins keeping the ratio of your print data.

SPro 4000: Maximum

Select this setting when printing on a cut sheet.

Prints your data with an expanded bottom margin.

SPro 4000: Roll Paper

Select this setting when printing on a roll paper.

Prints your data with using the standard printable area.

SPro 4000: Roll Paper - Banner

Select this setting when printing on a banner.

SPro 4000: Roll Paper - Borderless (Auto Expand)

Select this setting when printing on roll paper.

Prints your data with no margins enlarging the size of print data automatically.

SPro 4000: Roll Paper - Borderless (Retain Size)

Select this setting when printing on roll paper.

Prints your data with no margins keeping the ratio of your print data.

SPro 4000: Roll Paper - Borderless Banner

Select this setting when printing on banner.

Prints your data with no margins.

SPro 4000: Standard

Select this setting when printing on a cut sheet.

Prints your data using the standard printable area.

Note:
Always match the Format for setting in the Page Setup dialog box and the Printer setting in the Print dialog box. Otherwise the data may not be printed correctly.


[Top]

Paper Size

Select the paper size that you want to use.


[Top]

Orientation

Select the printing orientation.


[Top]

Scale

Input the scale to reduce or enlarge the size of your data.


[Top]
